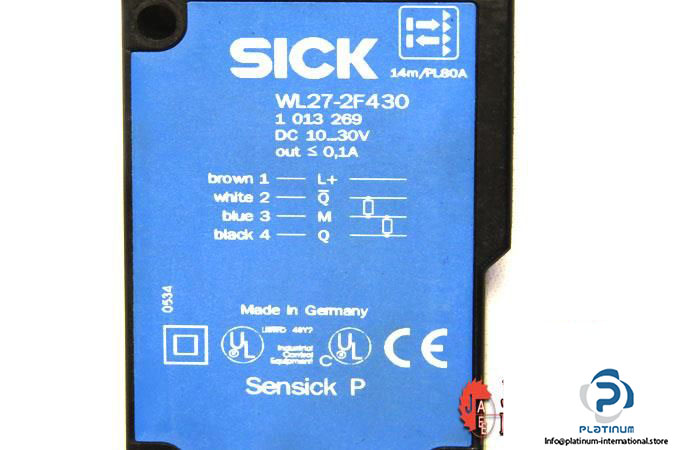

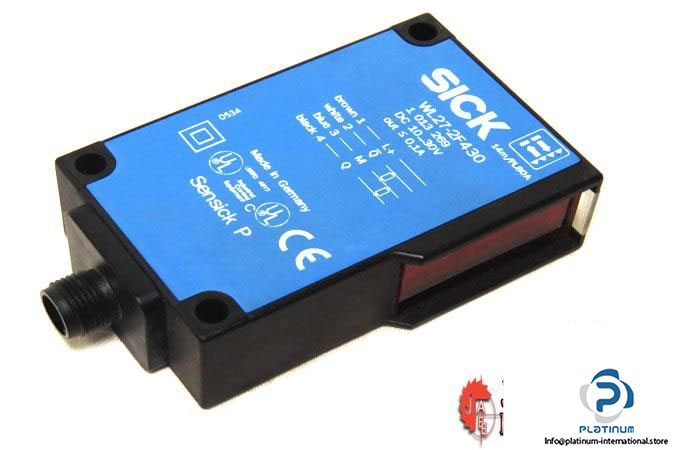

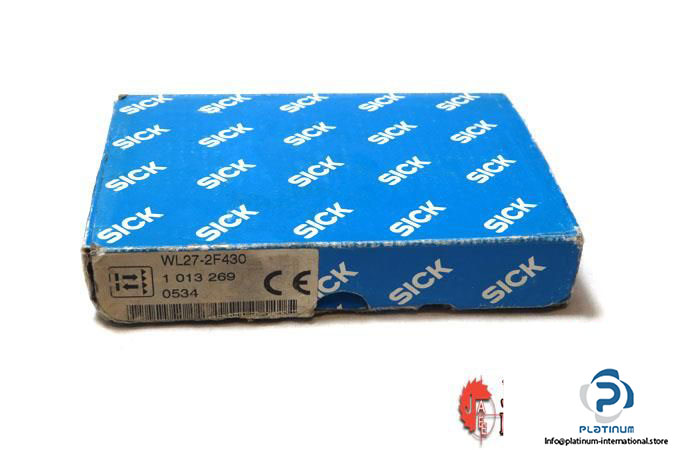

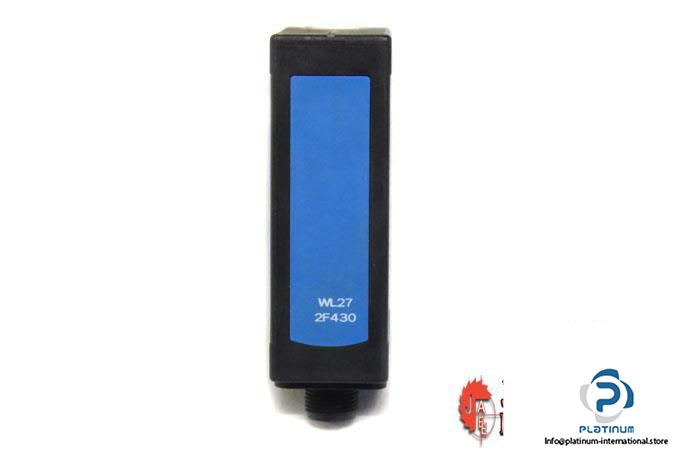

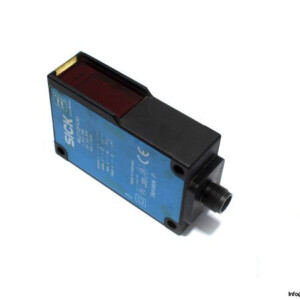

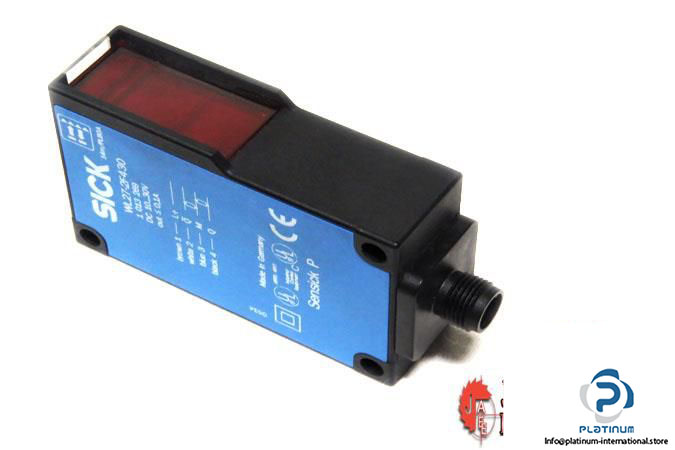

Sick WL27-2F430 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

Type: Photoelectric Retro-Reflective Sensor

Model: WL27-2F430

Part No.: 1013269

Supply voltage: 10 … 30 V DC

Power consumption (without load): ≤ 25 mA

Output current max.: ≤ 0.1 A

Switching output: PNP

Switching mode: Light/dark switching

Sensing range max.(Reflector PL80A) : 0.1 … 14 m

Sensing range: 0.1 … 10 m

Response time: ≤ 500 µs

Adjustment: Potentiometer

Light source, type: LED, Visible red light

Dimensions (W x H x D): 24.6 X 80 X 53.5 mm

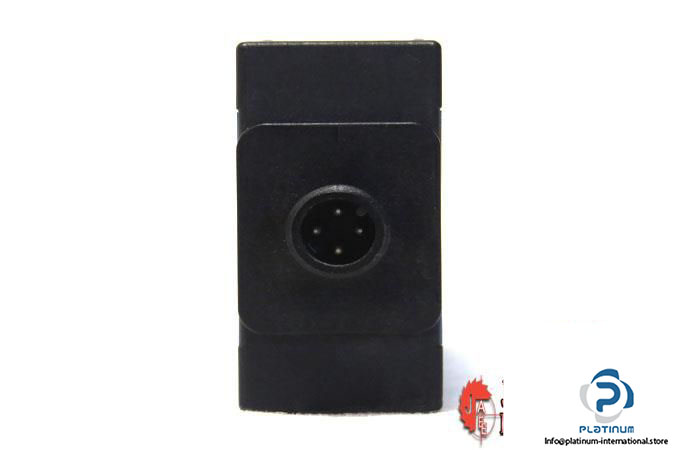

Connection type: Male connector M12, 4-pin

Ambient operating temperature: -40 … +60 °C

Enclosure rating: IP65
