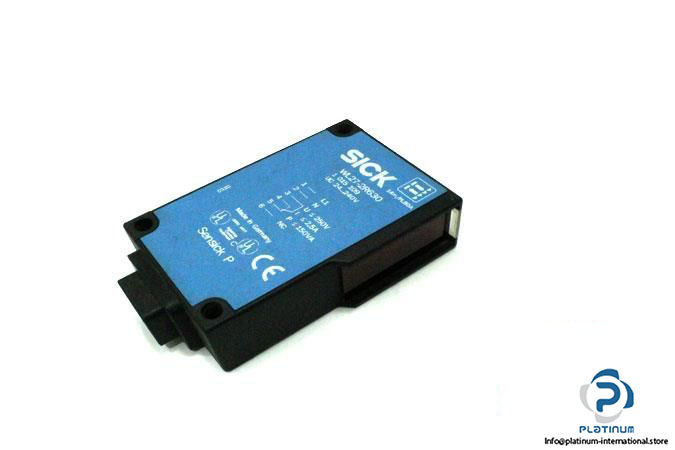

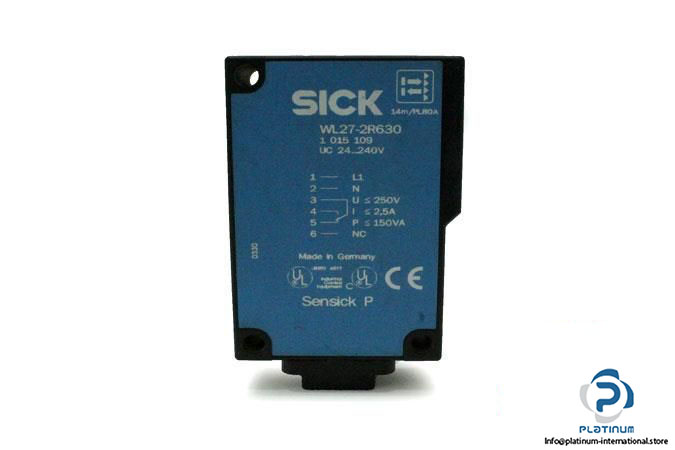

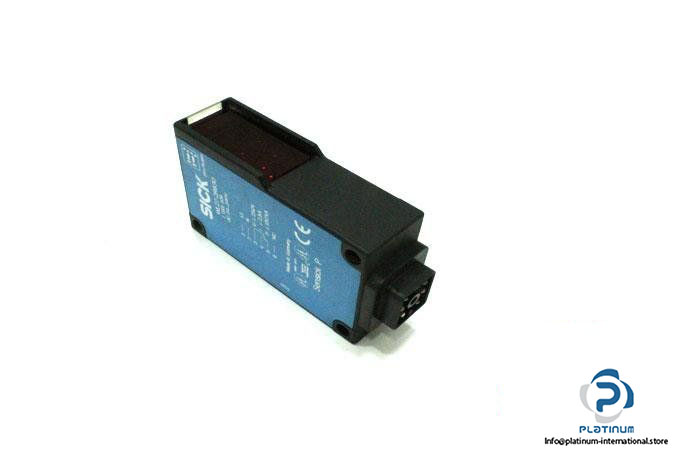

Sick WL27-2R630 Photoelectric Retro-Reflective Sensor

Manufacturer:  SICK

Type:  PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

Model: WL27-2R630

Part No.: 1015109

Sensing Range: 0.1 … 14 m

Response time: 6 ms

Operating Voltage: 24 … 240 V AC/DC

Switching frequency: 10 Hz

Continuous current:  4 A (240 V AC), 0.2 A (120 V DC), 4 A (24 V DC) mA DC

Switching output: Relay, electrically isolated

Switching mode: Change-over contacts

Source, type of light: LED, Visible red light

Light spot size (distance): 220 mm, 10 m

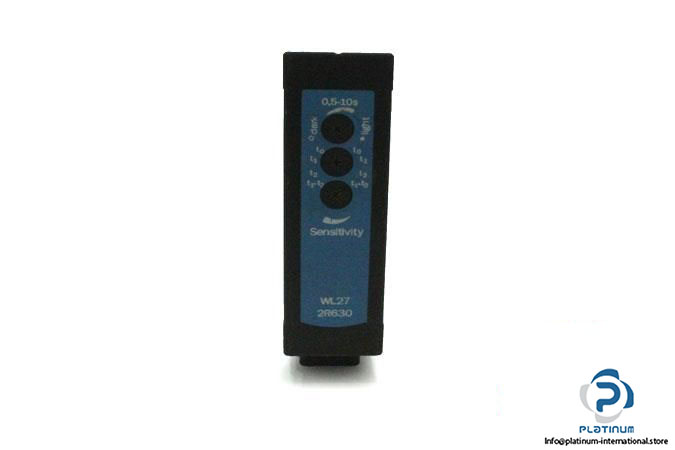

Adjustment: Potentiometer

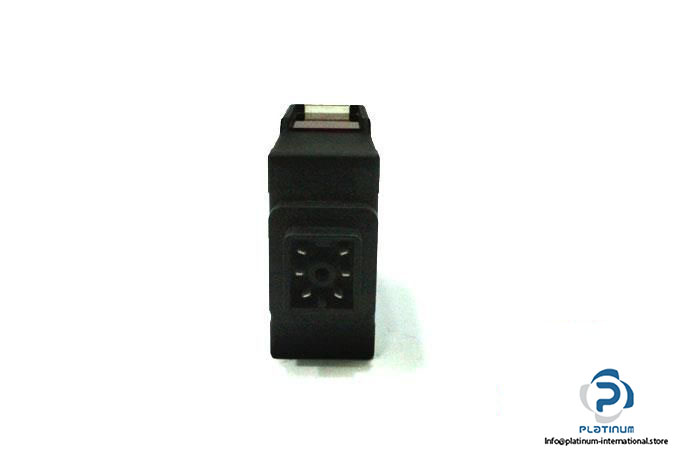

Connector type: Connector Q6, 6-pin

Protection class: II

Enclosure rating: IP65

Ambient Operating temperature: -40 … 60°C

Dimensions: 24.6 x 80 x 53.5 mm

Weight: 100 g

Housing: Rectangular

Housing material: Plastic, ABS

Condition: New
