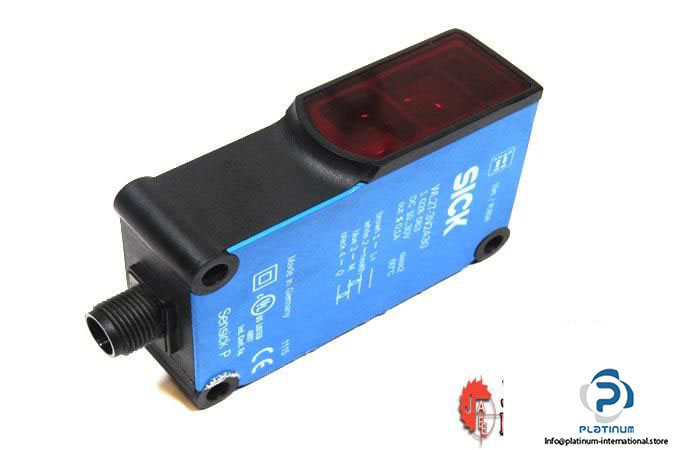

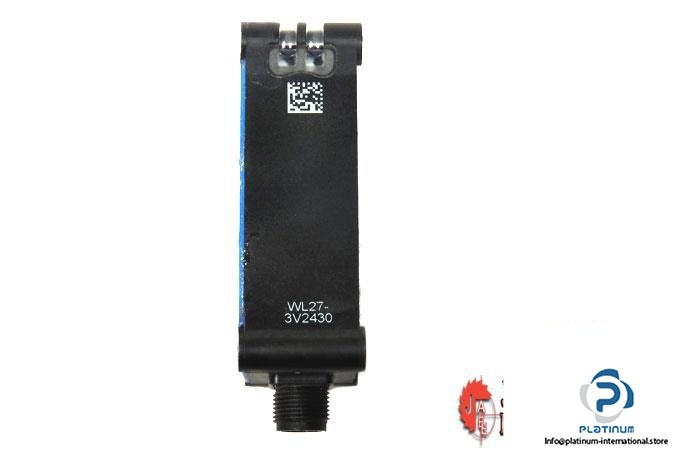

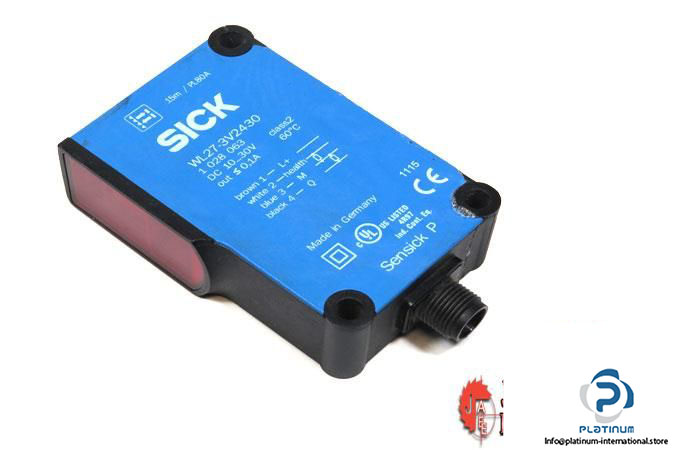

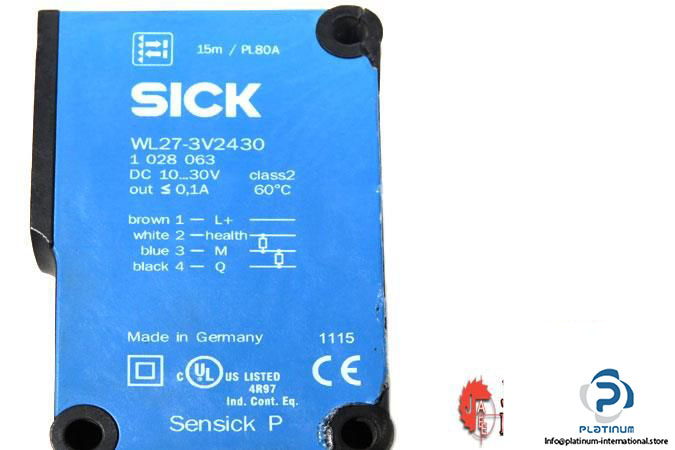

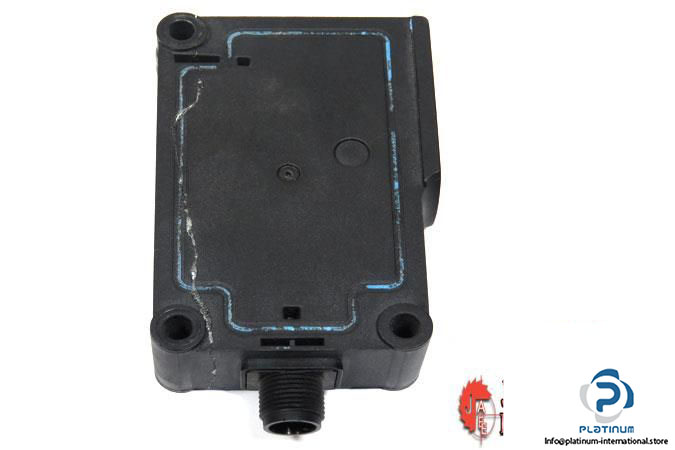

Sick WL27-3V2430 Photoelectric Retro-Reflective Sensor Dual Lens

Manufacturer: SICK

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR, DUAL LENS

Model: WL27-3V2430

Part No.: 1028063

Voltage supply: 10 … 30 V

Power consumption( without load): 30 mA

Output current: ≤ 100 mA

Switching output: PNP

Signal voltage PNP HIGH/LOW: Approx. V_S – 2.5 V / 0 V

Ripple: ≤ 5 V_pp

Sensing range max.( reflector PL80A): 0.1 … 15 m

Sensing range: 0.1 … 11 m

Response time (with resistive load): ≤ 500 µs

Switching frequency: 1000 Hz

Light source, type: LED, Visible red light

Light spot size (distance): Ø 220 mm (10 m)

Angle of dispersion: Approx. 1.5°

Wave length: 660 nm

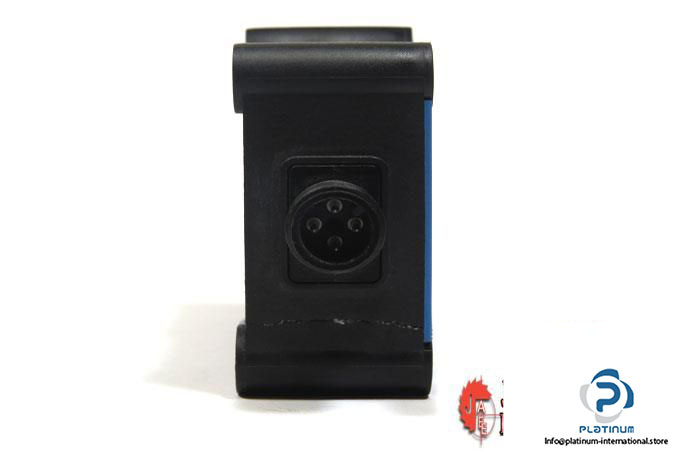

Connection type: Male connector M12, 4-pin

Ambient operating temperature: -40 °C … +60 °C

Enclosure rating: IP69K

Dimensions (W X H X D): 24.6 X 80.6 X 54 mm

Weight: 100 g

Condition: New
