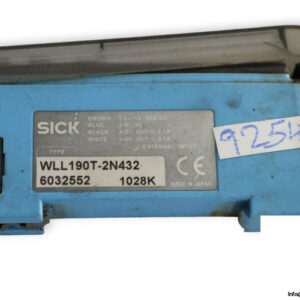

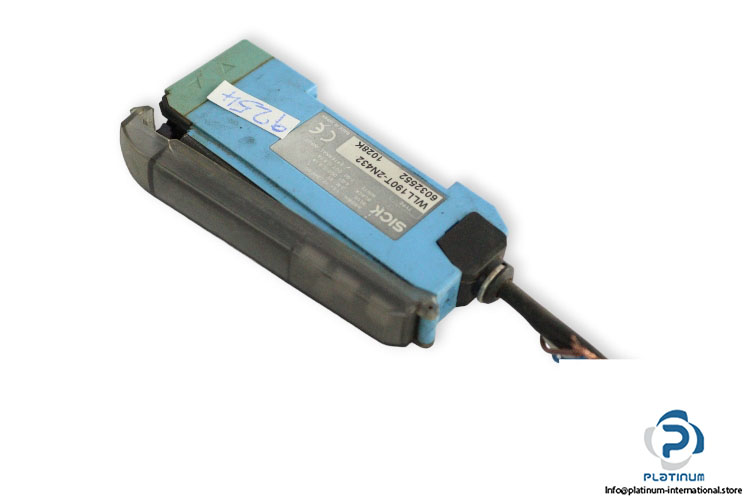

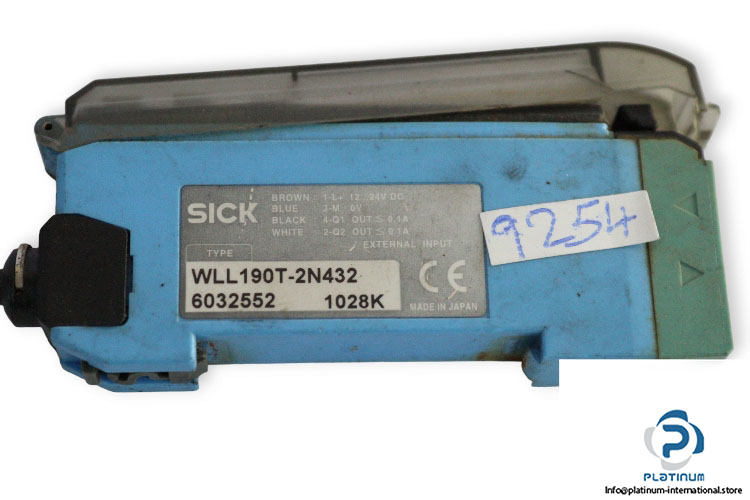

Sick WLL190T-2N432 Fiber-Optic Sensor

Manufacturer: Sick
Type: Fiber-Optic Sensor
Model: WLL190T-2N432
Part No: 6032552

Supply Voltage: 12 … 24 V DC
Sensing range max. 0 … 4 m
Current Consumption: 50 mA

Switching output: NPN
Wavelength: 650 nm
Response time: 2 ms / 60 μs/ 250 μs (Selectable)
Housing design: (light emission) Rectangular
Cable Connection: 4 Wires
Cable material: PVC
Operating Temperature: -25 … 55 °C
Degree of protection: IP66
Dimensions: 10.5 X 34.8 X 76.5 mm
