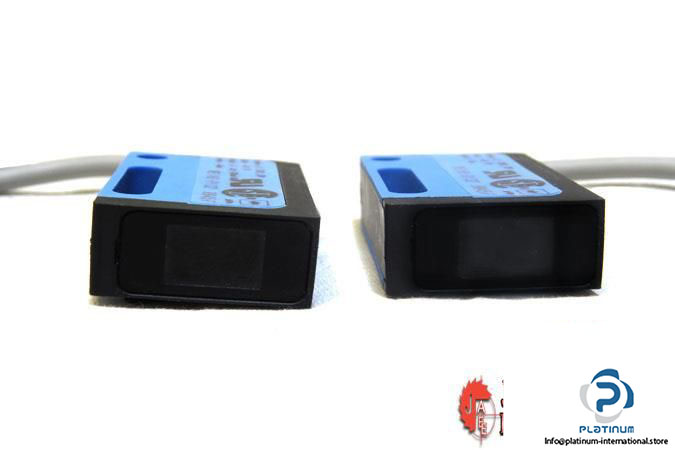

Sick WS/WE160-P132 Through-Beam Photoelectric Switch

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SWITCH

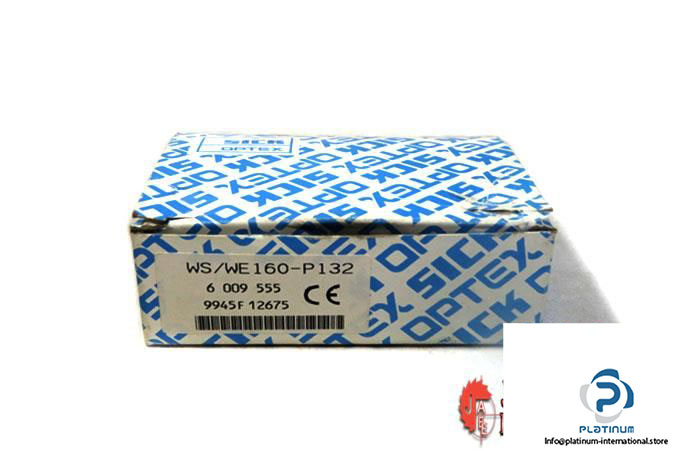

Set Model: WS/WE160-P132

Part No.: 6009555

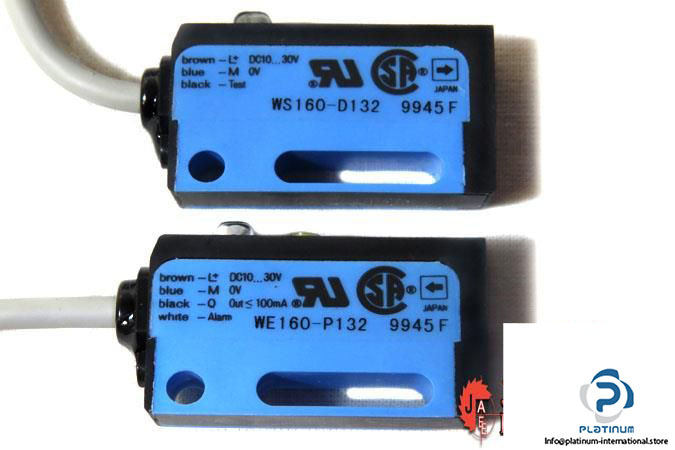

Receiver Model: WE160-P132

Sender Model: WS160-D132

Supply voltage: 10 … 30 V DC

Output current max.: 100 mA

Switching frequency max.: 300/s

Scanning range, max.: 0 … 8.5 m

Operating range: 0 … 7 m

Operating range with filter: 0 … 1m

Response Time/with resistive load: 1.5 ms

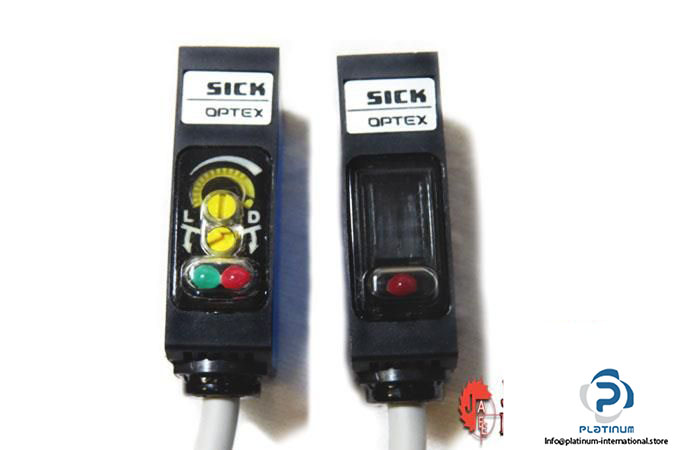

Adjustable sensitivity: Potentiometer, 2 turns with scaling 270°

Light spot diameter: Approx. 400 mm at 7 m

Angle of dispersion, sender: Approx. 3.3°

Angle of dispersion, receiver: Approx. 15°

Current consumption sender: ≤ 20 mA

Current consumption receiver: ≤ 30 mA

Switching outputs: PNP, open collector

Light source, type: LED, Infrared light

Ripple: ± 10 %

Enclosure rating: IP 67

Operating temperature: -25 … +55°C

Connection: 2m PVC cable

Weight with cable sender/receiver: each approx. 60 g

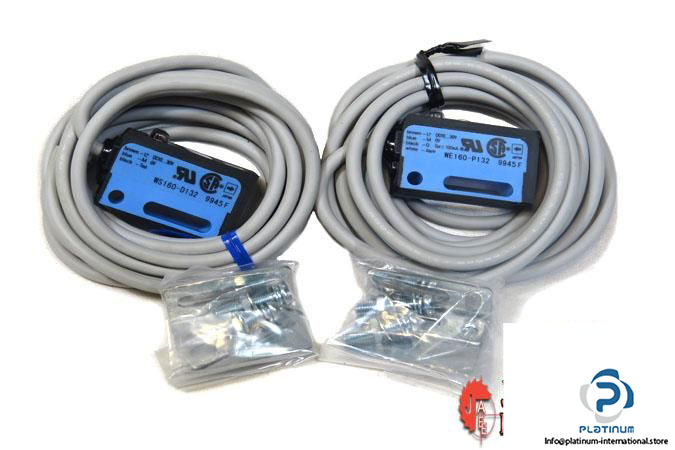

Items included: mounting brackets

Condition: New / Used
