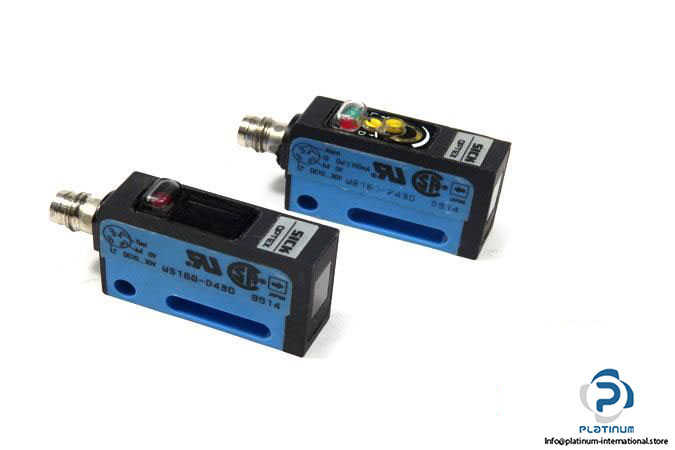

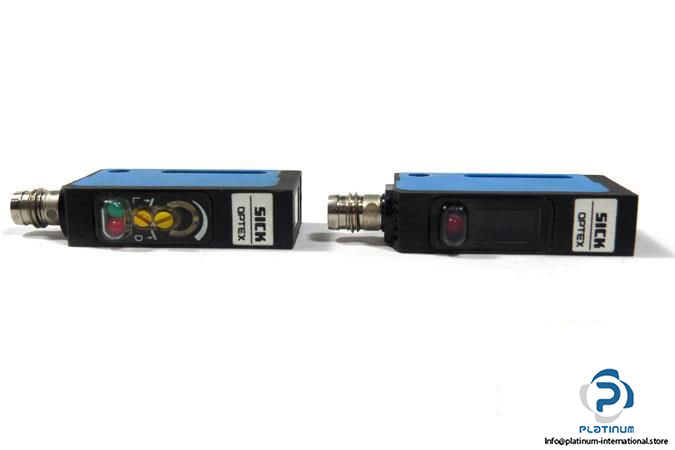

Sick WS/WE160-P430 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

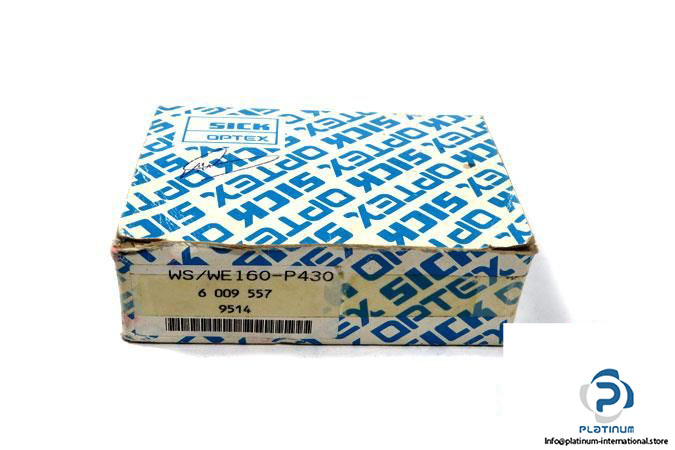

Set Model:  WS/WE160-P430

Set Part No.: 6009557

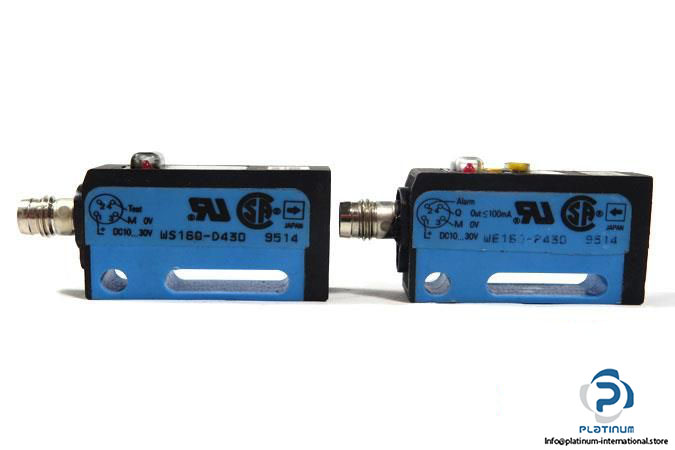

Sender Model: WS160-D430

Receiver Model: WE160-P430

Supply Voltage: 10 … 30 V DC

Scanning range max.: 0 … 8.5 m

Operating range: 0 … 7 m

Operating range with filter: 0 … 1 m

Angle of dispersion sender: approx. 3.3°

Angle of dispersion receiver: approx. 15°

Light source, Type: LED, Visible red light

Light spot diameter: approx. 400 mm at 7 m

Ripple: ± 10%

Current consumption: sender ≤ 20 mA

Current consumption: Receiver ≤ 30 mA

Switching outputs: PNP

Output current max.: 100 mA

Response time: ≤ 1.5 ms

Switching freq max.:  300/s

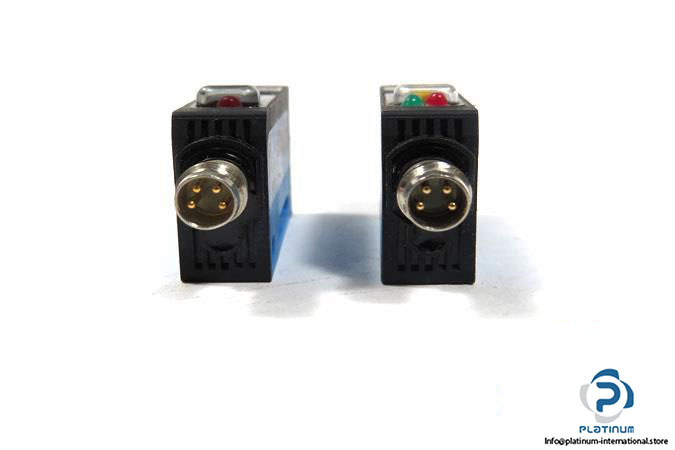

Connection type: M8 Male Connector, 4 pin

Ambient Operating temperature: -25 … +55 °C

Enclosure rating: IP 67

Weight: each approx. 20 g

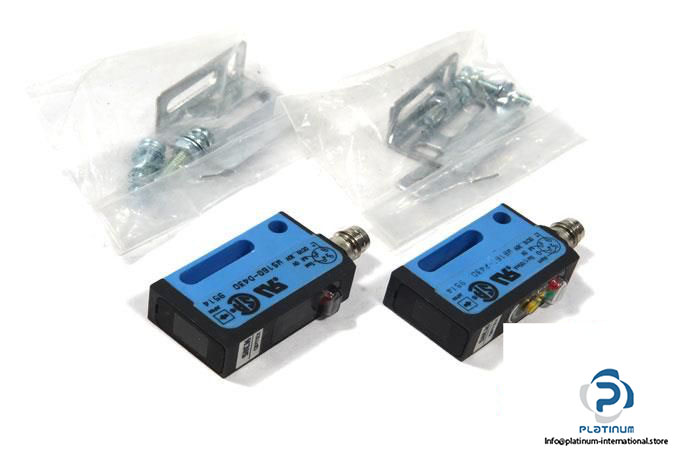

Supplied Accessories: Mounting Brackets

Condition: New
