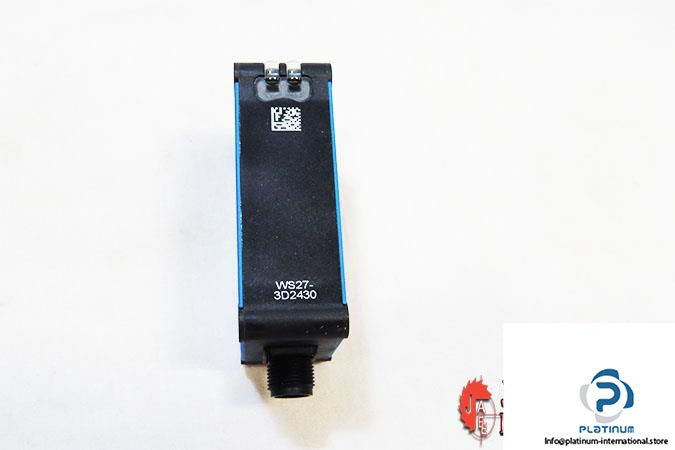

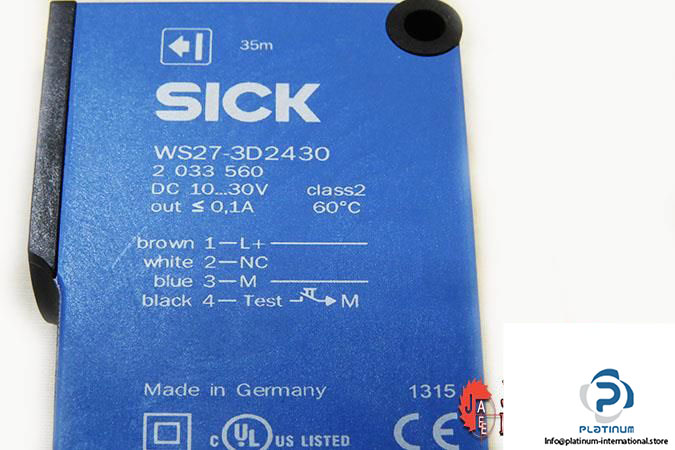

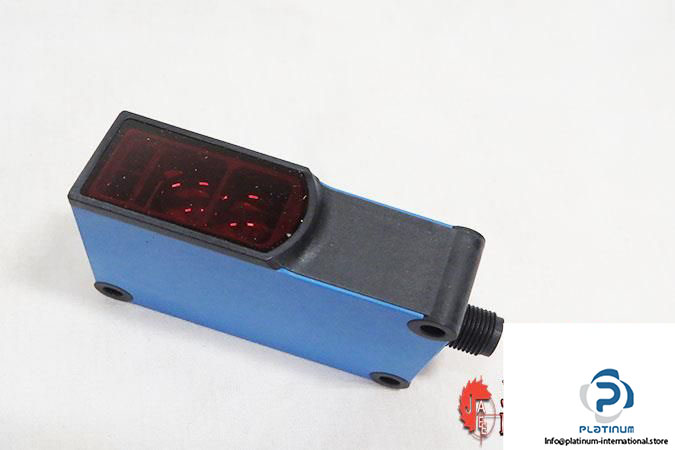

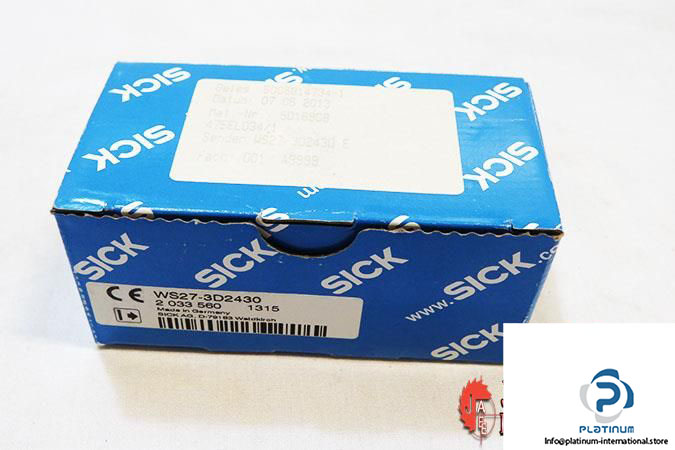

Sick WS27-3D2430 Through-Beam Photoelectric Switch

Manufacturer: SICK

Type: THROUGH-BEAM SENSOR SWITCH

Model: WS27-3D2430

Part No.: 2033560

Configured with: Reciever WE27-3P2430

Sensing range max.: 0 m … 35 m

Sensing range: 0 m … 25 m

Light spot size (distance): Ø 600 mm/25 m

Supply Voltage: DC 10 … 30 V

Output current: ≤ 100 mA

Switching frequency: 1,000 Hz

Response time: ≤ 0.5 ms

Enclosure rating: IP67

Protection Class: 2

Type of light: Visible red light

Light source: LED

Switching output: PNP

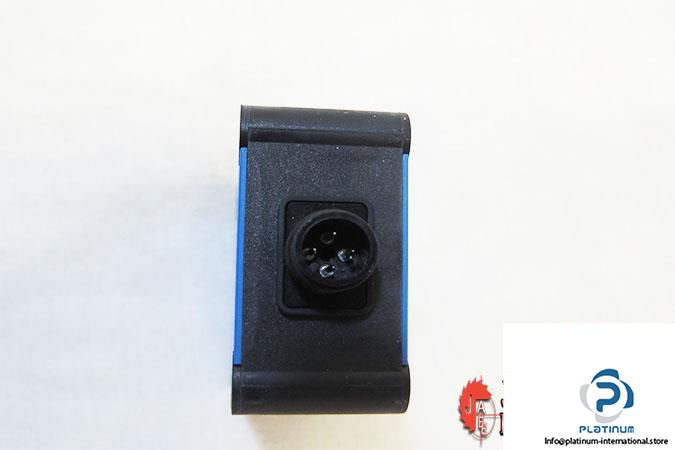

Connection type: Male connector M12, 4-pin

Ambient operating temperature: –40 °C … +60 °C

Condition: New
