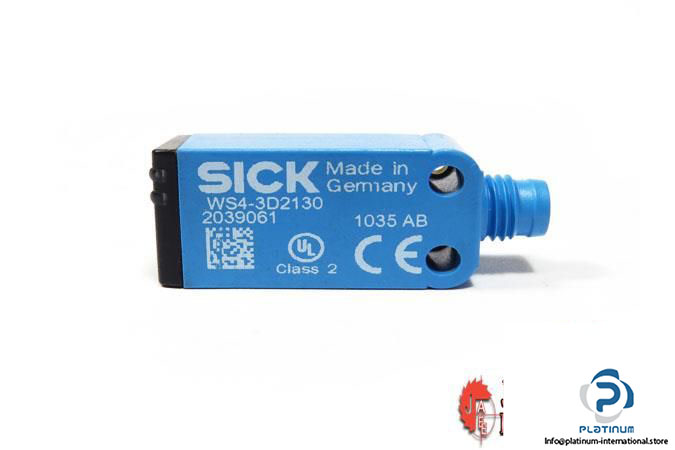

Sick WS4-3D2130 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Model: WS4-3D2130

Part No: 2039061

Configured with: WE4-3P2130

Supply voltage: 10 … 30 V DC

Power consumption: ≤ 20 mA

Output current: ≤ 100 mA

Sensing range max.: 0 … 4 m

Sensing range: 0 … 3.5 m

Response time: < 0.5 ms
Switching frequency: 1,000 Hz

Output type: PNP

Switching mode: Light switching

Wave length: 650 nm

Light spot size: 2 m

Light source, type: Pinpoint LED, visible red light

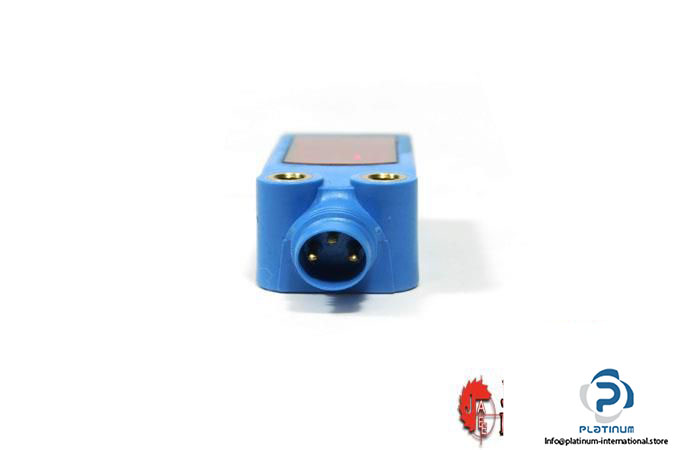

Connection type: Connector M8, 3-pin

Weight: 60 g

Dimensions (W X H X D): 16 X 39.5 X 12 mm

Ambient operating temperature: – 40 …+ 60 °C

Enclosure rating: IP67, IP66

Condition: New
