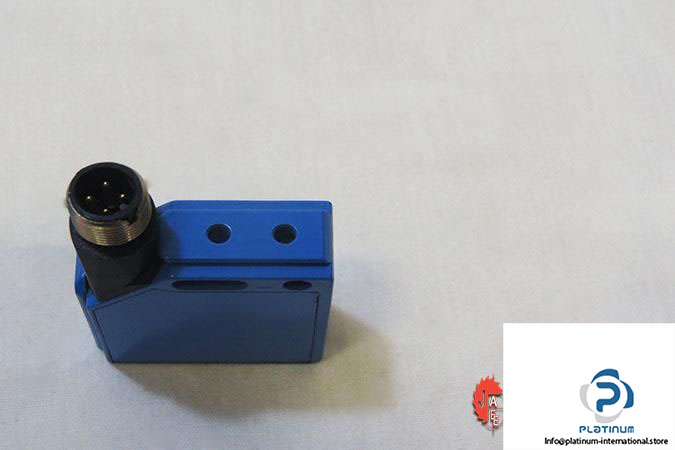

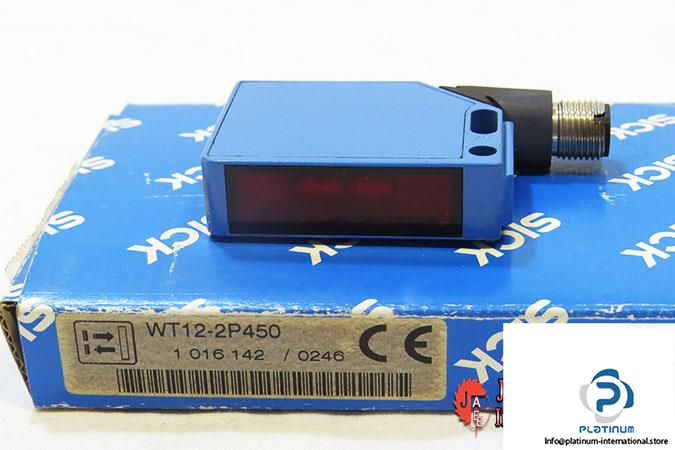

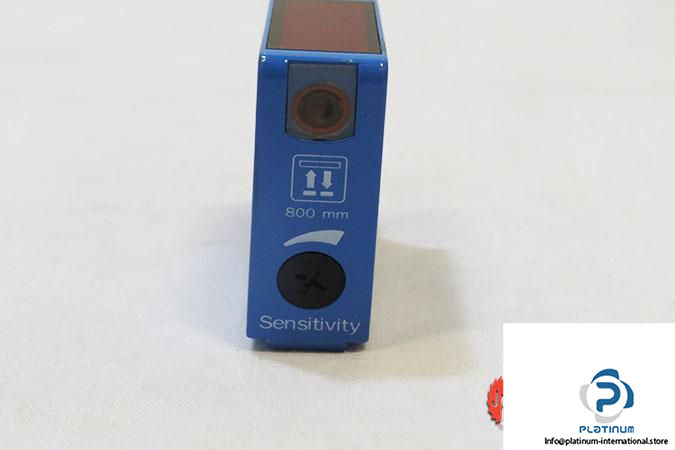

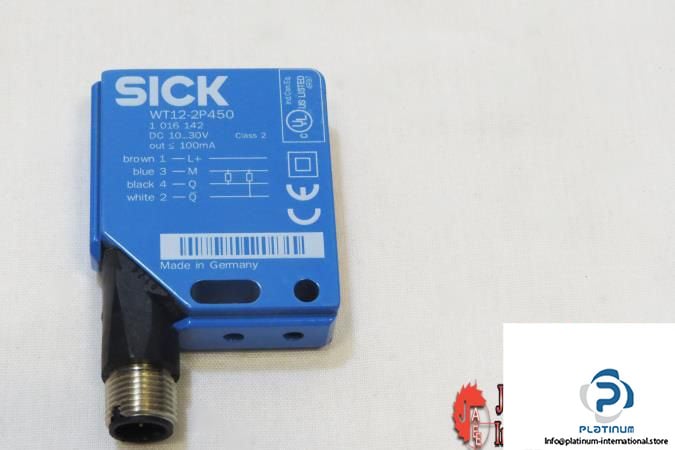

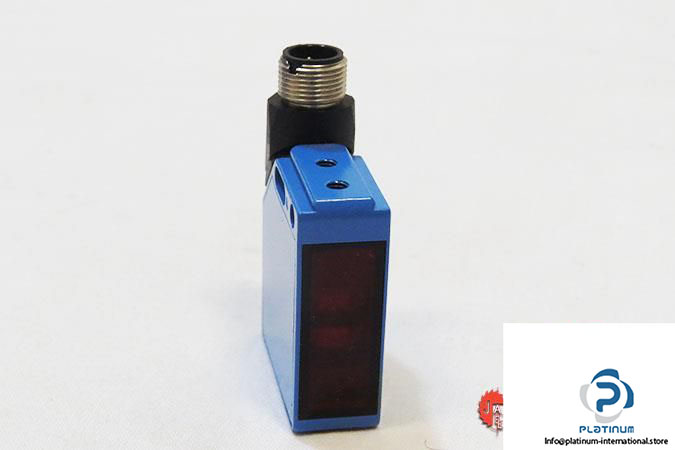

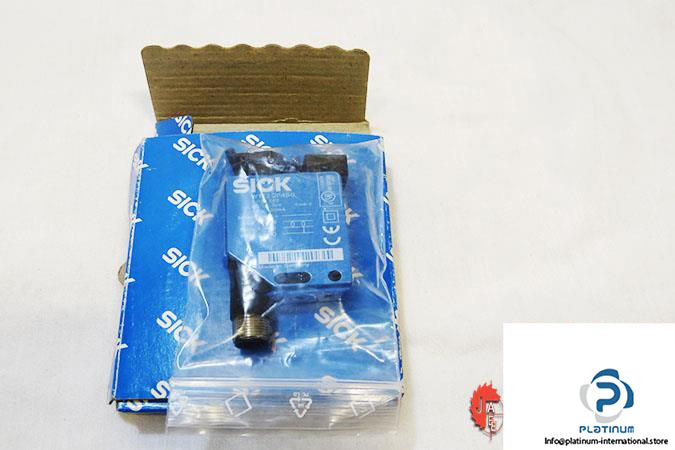

Sick WT12-2P450 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR

Model: WT12-2P450

Part No.: 1016142

Replaced with: WTE11-2P2432

Sensing range max.: 10 mm … 1,000 mm

Sensing range: 80 mm … 800 mm

Detection principle: Background suppression

Type of light: Visible red light

Light Source: LED

Adjustment: Potentiometer

Supply Voltage: 10 V DC … 30 V DC

Ripple: ≤ 5 Vpp

Power Consumption: ≤ 30 mA

Output type: PNP

Switching mode: Light/dark switching

Response time: ≤ 330 µs

Connection type: Male connector M12, 4-pin

Enclosure rating: IP67

Ambient operating temperature: –40 °C … +60 °C
