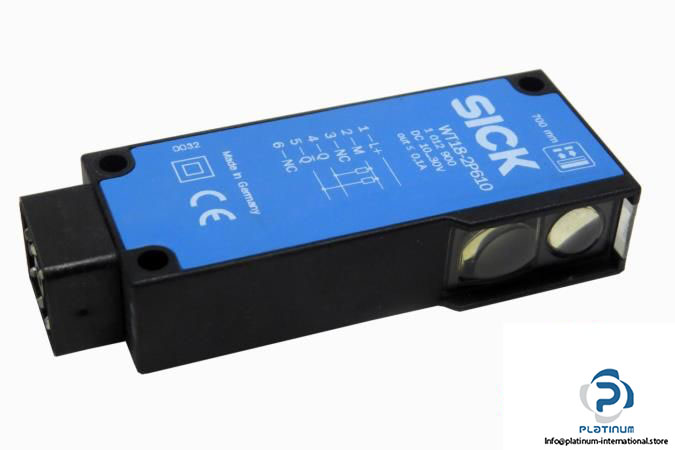

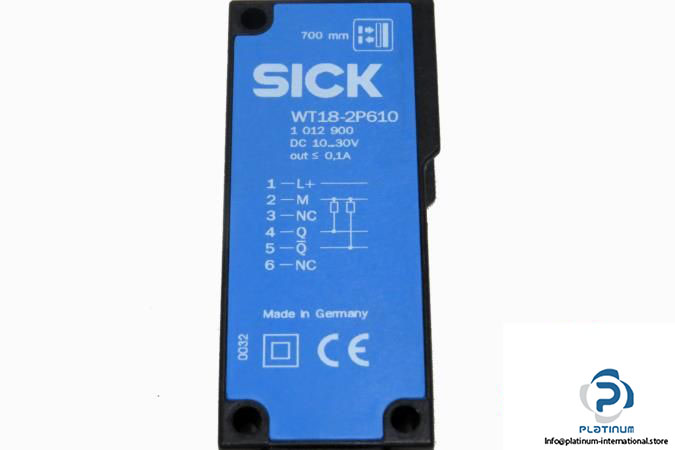

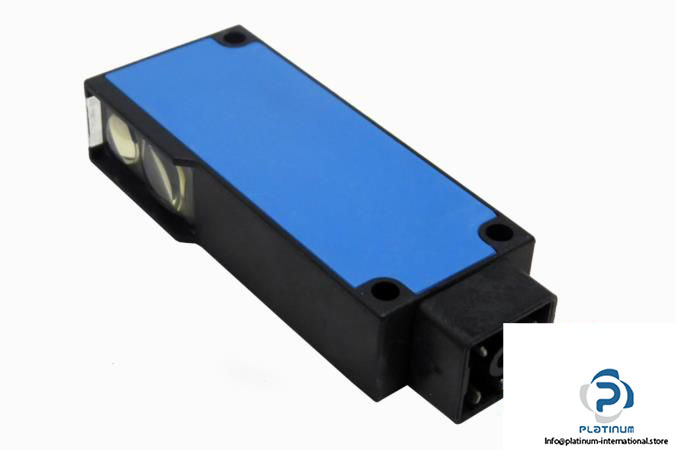

Sick WT18-2P610 Background Suppression Sensor

Manufacturer: SICK
Type: Background Suppression Sensor
Model: WT182P610
Part No.: 1012900

Sensing Range: 50 … 700 mm
Light Source: LED
Light Type: Infrared Light
Switching Mode: Light/Dark Switching
Operating Voltage: 10 … 30 V DC
Current Consumption: 25 mA
Switching Output: PNP
Output Current I_max.: 100 mA
Connection Type: Connector Q6, 6-Pin, DC-Coding
Housing Material: Plastic, ABS
Protection Class: IP65
Operating Temperature: -40 … 60 °C
Dimensions: 75 x 17 x 32.5 mm
