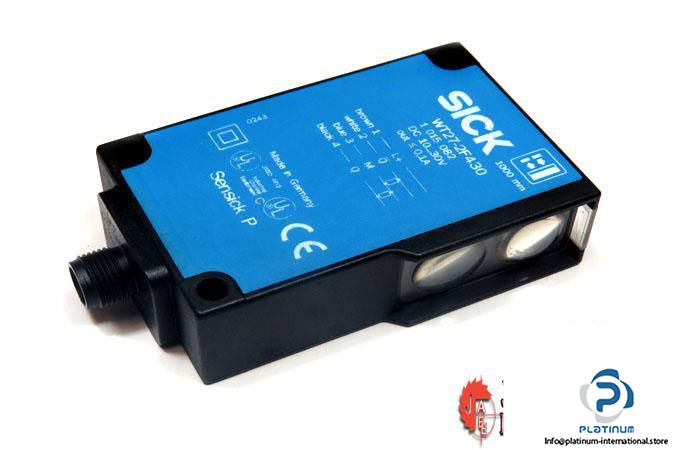

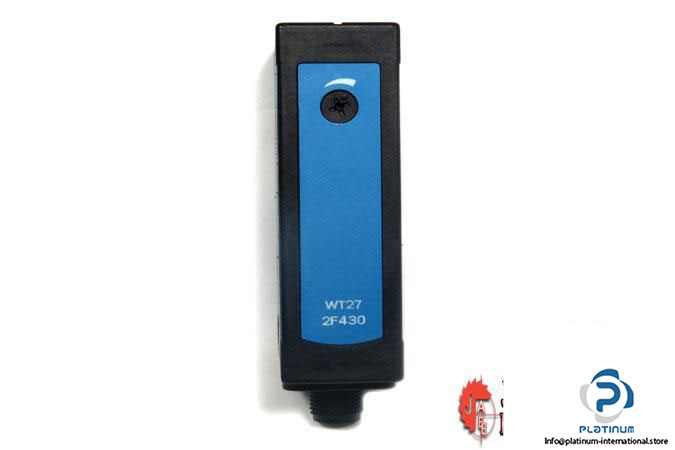

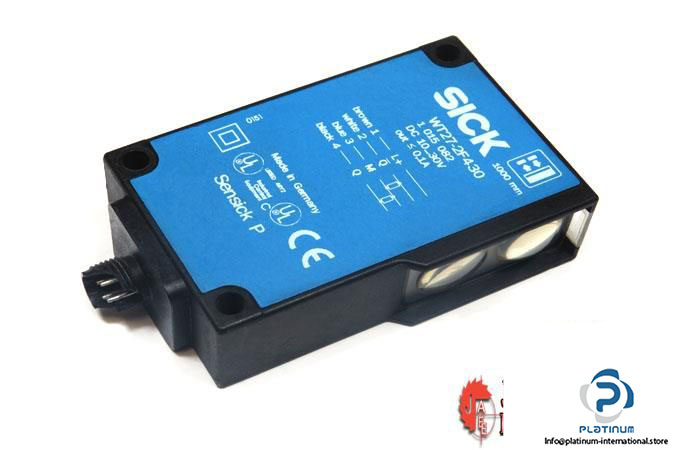

Sick WT27-2F430 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT27-2F430

Part No.: 1015082

Supply voltage: 10 … 30 V DC

Power consumption (without load): ≤ 25 mA

Output current max.: 100 mA

Switching output: PNP

Switching mode: Light/Dark switching

Sensing range max.: 100 … 1,000 mm

Response time (with resistive load): ≤ 2 ms

Light source, type: LED, Visible red light

Adjustment: Potentiometer

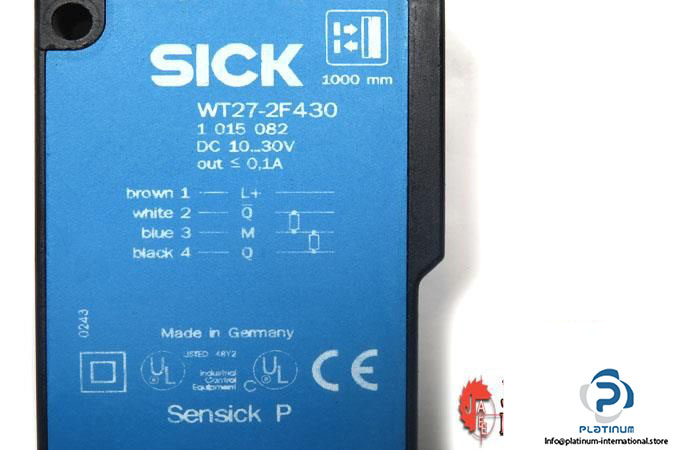

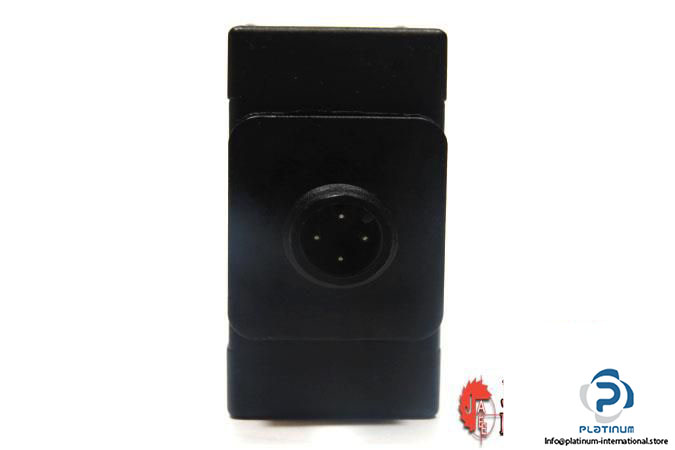

Connection type: Male connector M12, 4-pin

Dimensions (W X H X D): 24.6 X 80 X 53.3 mm

Ambient operating temperature: -40 … +60 °C

Enclosure rating: IP65
