Sick WTB250-2P2441 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WTB250-2P2441

Part No.: 6044682

Sensing Range max.: 150 … 500 mm

Response time max.: ≤ 3 ms

Operating Voltage: 10 … 30 V DC

Ripple: ≤ 5 V_pp

Switching frequency: 160 Hz

Output current: 100 mA DC

Switching output: PNP

Switching mode: Light/dark switching

Light spot size (distance): 30,500 mm

Angle of dispersion: 3°

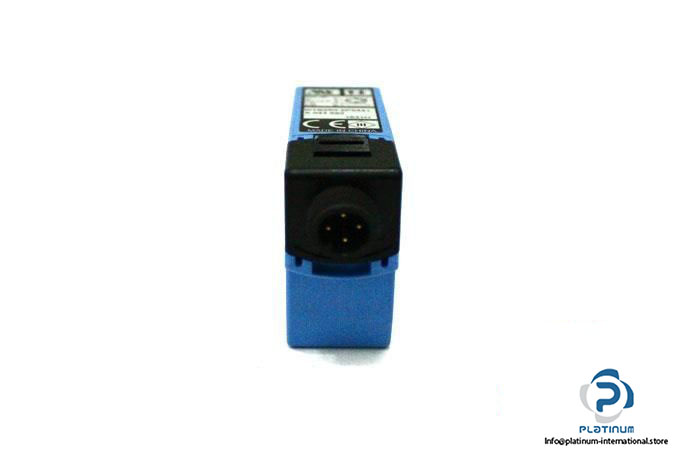

Connector type: M12 Connector, 4-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions: 20 x 65 x 43.9 mm

Weight: 40 g

Housing: Rectangular

Housing material: Plastic, ABS

Sensing face material: Plastic, PMMA

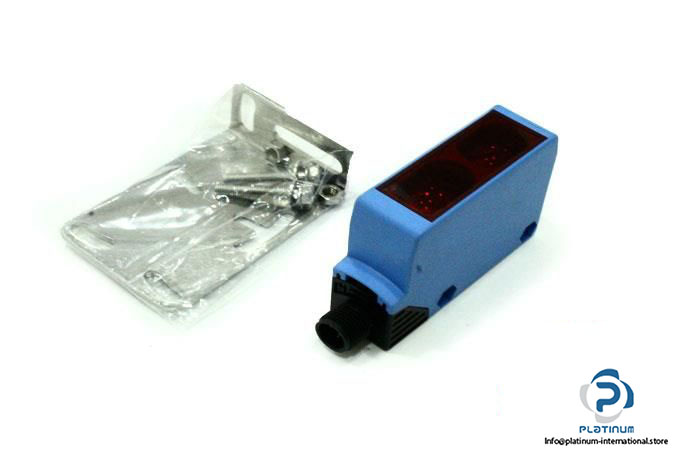

Supplied accessories: BEF-W250 mounting bracket

Condition: New
