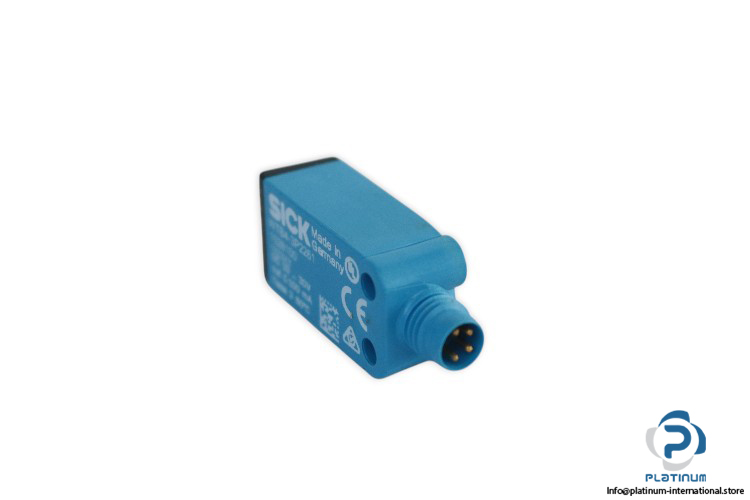

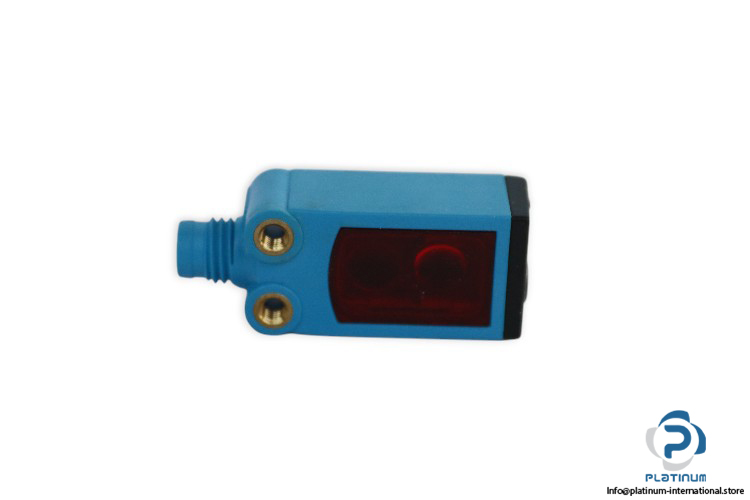

Sick WTB4-3P2261 Background Suppression Sensor
New
Available on request
Manufacturer:
SICK
Type:
Background Suppression Sensor
Model:
WTB4-3P2261
Part No.:
1028100
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SICK
Type: Background Suppression Sensor
Model: WTB43P2261
Part No.: 1028100
Sensing Range: 4 … 150 mm
Type Of Light: Visible Red Light
Light Source: Pin-Point LED
Light Spot Size (Distance): Ø 7 mm (50 mm)
Wave Length: 650 nm
Housing Design (Light Emission): Rectangular
Supply Voltage: 10 … 30 V DC
Output Current Max.: 100 mA
Switching Output: PNP
Connection Type: Male Connector M8, 4-Pin
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Protection Class: IP67/66
Operating Temperature: -40 … 60 °C
Dimensions: 39.5 x 16 x 12 mm
