Sick WTB4S-3P2261 Background Suppression Sensor
Used
In stock1 unitReady to ship
Background Suppression Sensor
Compact and reliable SICK sensor with 10 / 180 mm range, visible red light, PNP switching, and IP67/66 protection for industrial detection tasks.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

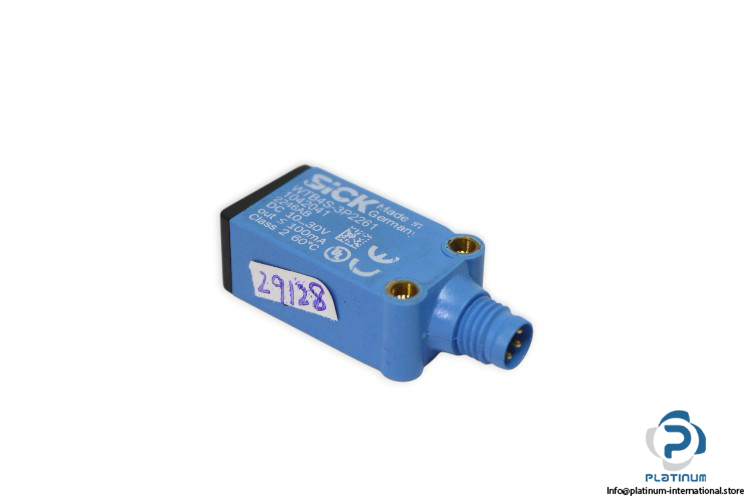

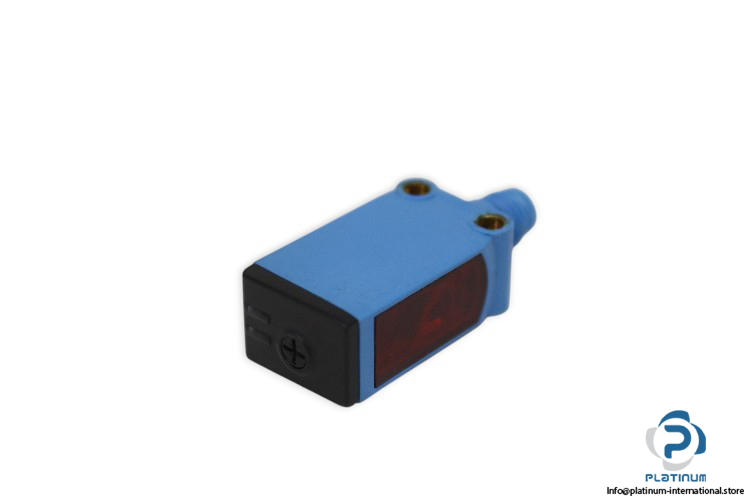

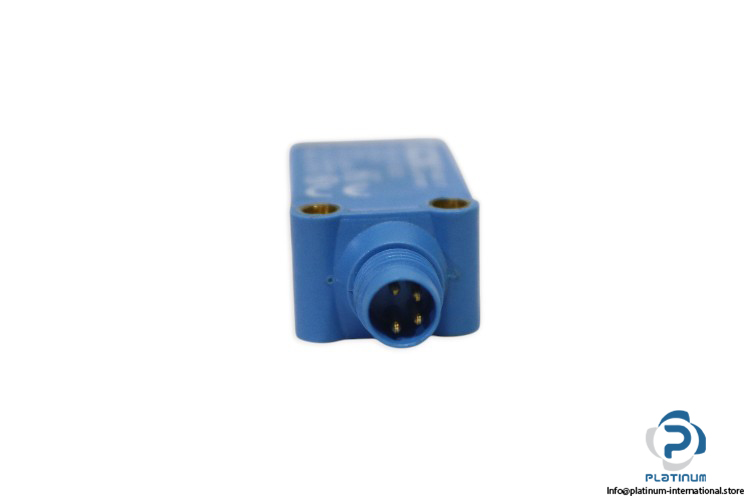

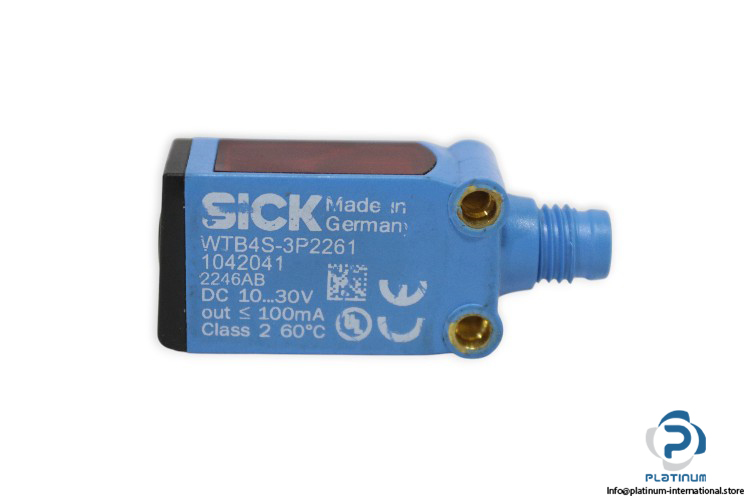

SICK WTB4S-3P2261 Background Suppression Sensor
The SICK WTB4S3P2261 is a high-performance background suppression sensor engineered for precise object detection in industrial environments. With reliable sensing capabilities, compact housing, and advanced optical technology, it ensures accurate performance even in challenging conditions.
Manufacturer: SICK
Type: Background Suppression Sensor
Model: WTB4S-3P2261
Part No.: 1042041
| Sensing Range | 10 ... 180 mm |
| Type of Light | Visible Red Light |
| Light Spot Size (Distance) | Dia. 6.5 mm (150 mm) |
| Wave Length | 650 nm |
| Housing Design (Light Emission) | Rectangular |
| Supply Voltage | 10 / 30 V DC |
| Output Current Max. | 100 mA |
| Switching Output | PNP |
| Connection Type | Male Connector M8, 4-Pin |
| Switching Mode | Light / Dark Switching |
| Housing Material | Plastic, ABS |
| Protection Class | IP67/66 |
| Operating Temperature | -40 / 60 °C |
| Dimensions | 12.2 x 41.8 x 17.3 mm |
