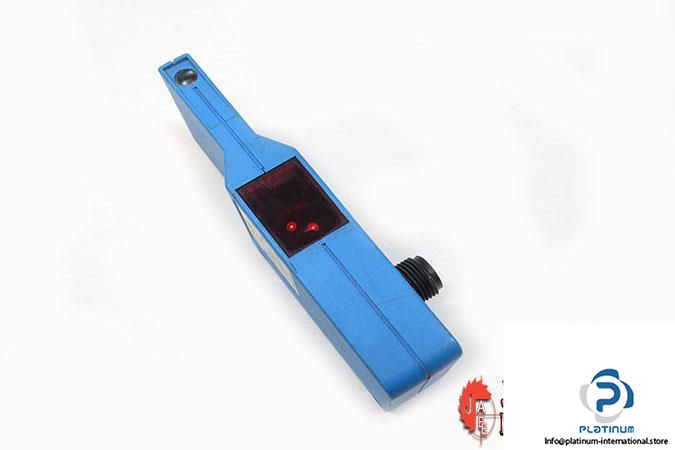

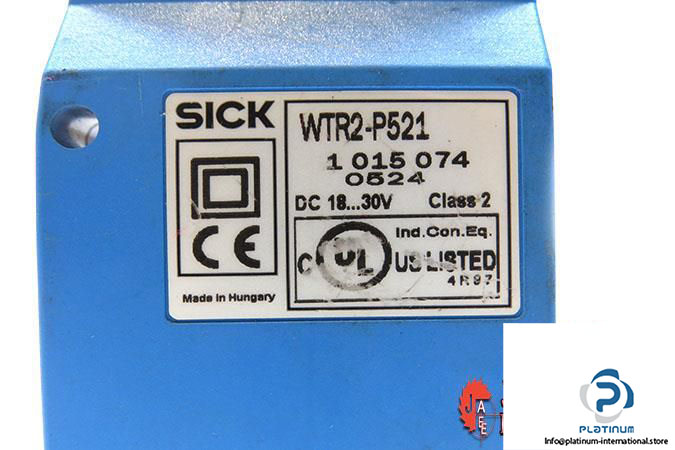

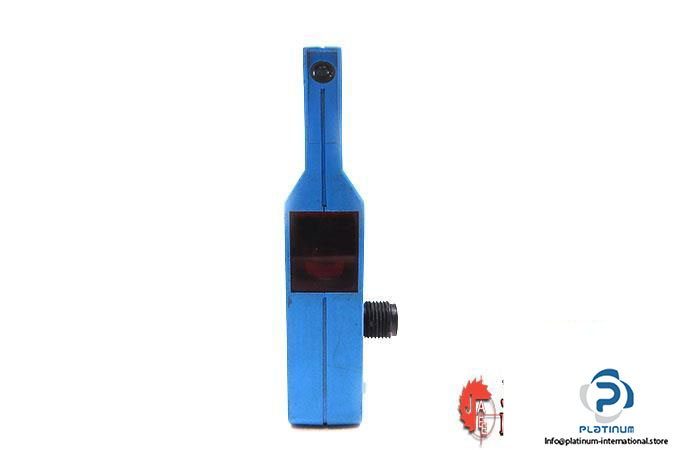

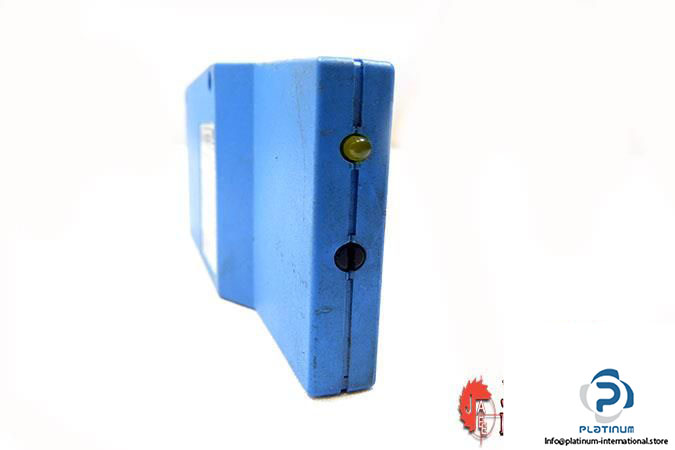

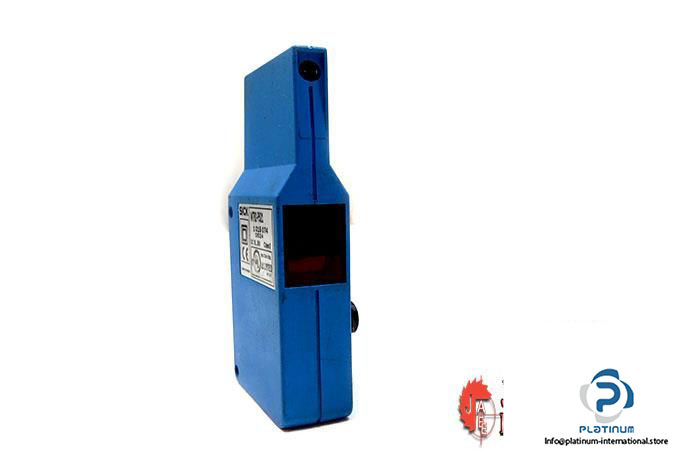

Sick WTR2-P521 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR

Model: WTR2-P521

Part No.: 1015074

Detection Principle: Background Suppression

Sensing Range: 300 mm … 900 mm

Type of Light: Infrared Light

Light Source: LED

Light Spot Size (Distance): Ø 40 mm (900 mm)

Adjustment: Potentiometer

Supply Voltage: 18 … 30 V DC

Ripple: < 5 Vpp
Power Consumption: 25 mA

Switching Output: PNP

Switching Mode: Dark Switching

Output Current: Max. 100 mA

Switching Frequency: 250 Hz

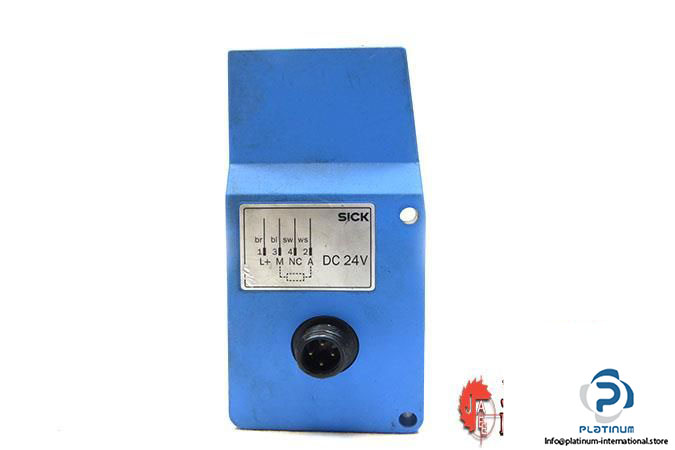

Connection: Male Connector, M12, 4-Pin

Enclosure Rating: IP54

Ambient Operating Temperature: -40 … 60 °C

Dimensions (W x H x D): 18 x 99.5  x 46 mm

Weight: 40 g
