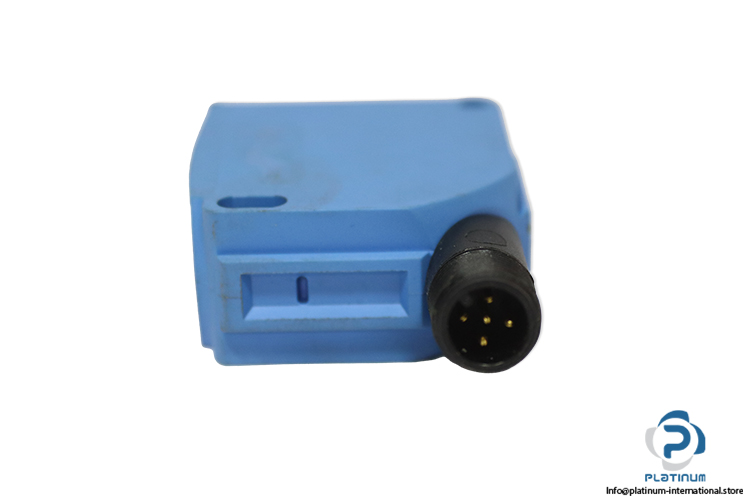

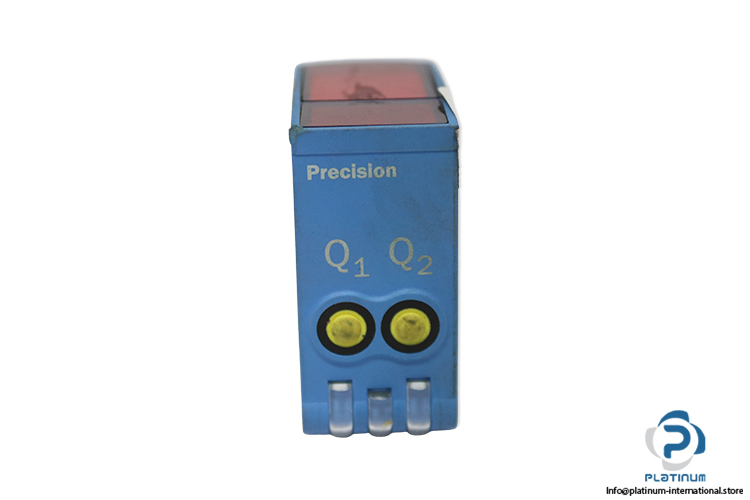

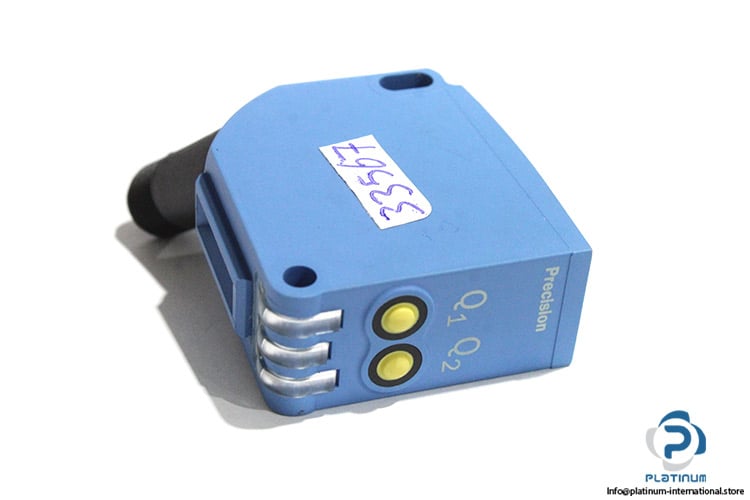

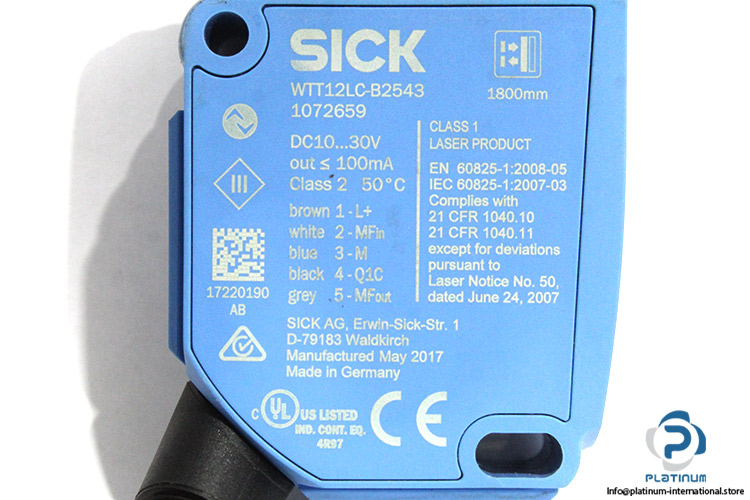

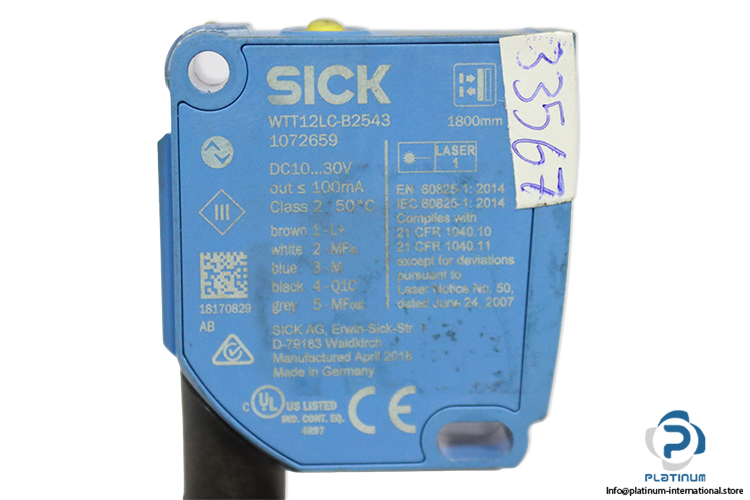

Sick WTT12LC-B2543 Photoelectric Sensor
Used
In stock3 unitsReady to ship
Photoelectric Sensor
A compact and efficient laser photoelectric sensor suitable for precise object detection, long-range sensing, and stable performance in industrial automation environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SICK WTT12LC-B2543 Photoelectric Sensor
A high-performance laser photoelectric sensor engineered for precise detection, stable switching performance, and long sensing distances. Ideal for industrial automation, machine monitoring, and object detection applications. Manufacturer: SICK
Type: Photoelectric Sensor
Model: WTT12LC-B2543
Part No.: 1072659
Wavelength:
| Sensing Range Max. | 50 mm ... 1,800 mm |
| Sensing Range | 100 mm ... 1,800 mm |
| Type of Light | Visible Red Light |
| Light Source | Laser |
| Light Spot Size | DIA 12 mm (1,800 mm) |
| Laser Class | Class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) |
| Adjustment | Single Teach-in Button (2x) |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | ‰¤ 70 mA |
| Dimensions (W x H x D) | 20 mm x 49.6 mm x 44.2 mm |
| Housing Design | Rectangular |
| Output Type | PUSH/PULL, PNP, NPN |
| Number of Switching Outputs | 2 (Q1, Q2) |
| Switching Mode | Light Switching |
| Output Current Max. | 100 mA |
| Response Time | ‰¤ 16.7 ms |
| Switching Frequency | ± 30 Hz |
| Connection Type | Male Connector M12, 5-pin |
| Housing Material | VISTAL® Plastic |
| Optics Material | Plastic, PMMA |
| Enclosure Rating | IP67 |
| Ambient Operating Temperature | “35 °C ... +50 °C |
