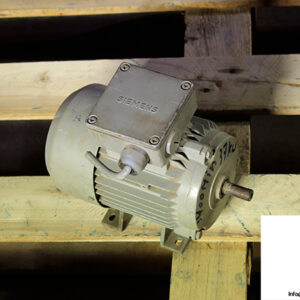

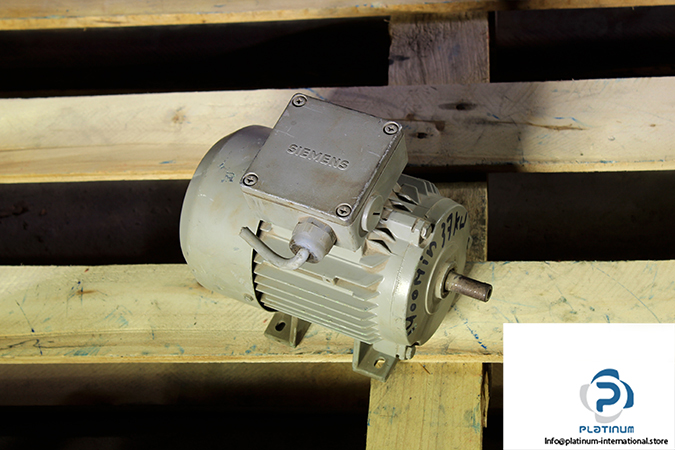

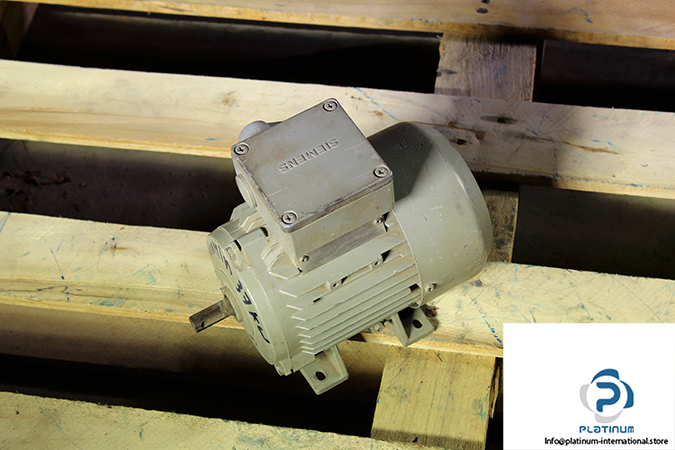

Siemens 1 LC5073-4EC20-Z Brake Motor
Manufacturer: Siemens
Type: Brake Motors
Model: 1LC5073-4EC20-Z
Motor Speed [r/min]: 1375
Motor Power [kW]: 0.37
Rated Voltage [V]: 220/380 Delta/Star
Nominal Current [A]: 1.9/1.1 Delta/Star
Motor Frequency [Hz]: 50
Cos Phi: 0.77
Thermal Class: F
Duty: S1
Mounting Position [IM]: B3
Protection Class [IP]: 54
Brake Model: 2 LM 1005-2NW
Brake Torque [Nm]: 5
Brake Voltage [VDC]: 24
Brake Current [A]: 1.86
Weight [kg]: 8,0
