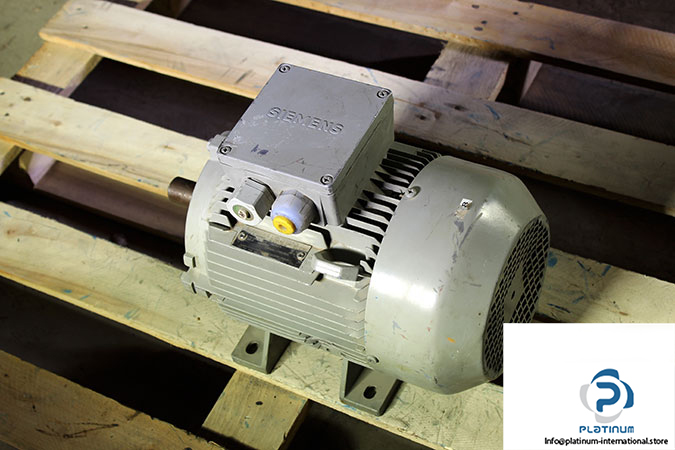

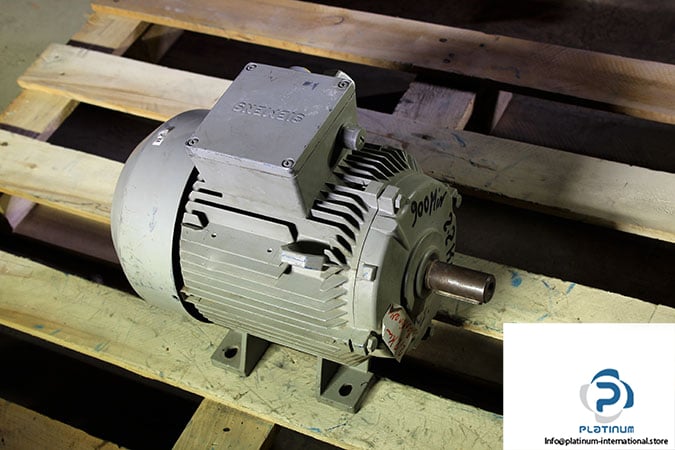

Siemens 1 LC5113-6EC20 Brake Motor
Manufacturer: Siemens
Type: Brake Motors
Model: 1LC5113-6EC20
Motor Speed [r/min]: 940
Motor Power [kW]: 2.2
Rated Voltage [V]: 220/380 Delta/Star
Nominal Current [A]: 10.2/5.9 Delta/Star
Motor Frequency [Hz]: 50
Cos Phi: 0.73
Thermal Class: F
Duty: S1
Mounting Position [IM]: B3
Protection Class [IP]: 54
Brake Model: 2 LM 1005-6NW
Brake Torque [Nm]: 50.0
Brake Frequency [Hz]: 50/60
Brake Voltage [VDC]: 220
Brake Current [A]: 0.90
Weight [kg]: 30,9
