Siemens 1FG1501-1RD23-2HC1-Z Synchronous Servo Geared Motor Bevel Gearbox
Used
In stock2 unitsReady to ship
SYNCHRONOUS SERVO GEARED MOTOR
Siemens 1FG1501-1RD23-2HC1-Z bevel geared servo motor with 47 Nm output torque, 270 V rated voltage, 3000 rpm rated speed, and IP65 protection. Ideal for high-precision motion control.1FG1501-1RD23-2HC1-Z270VBevelDriveGearGearboxGearedHighIndustrialMotionmotorPrecisionServoSiemensSynchronousTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

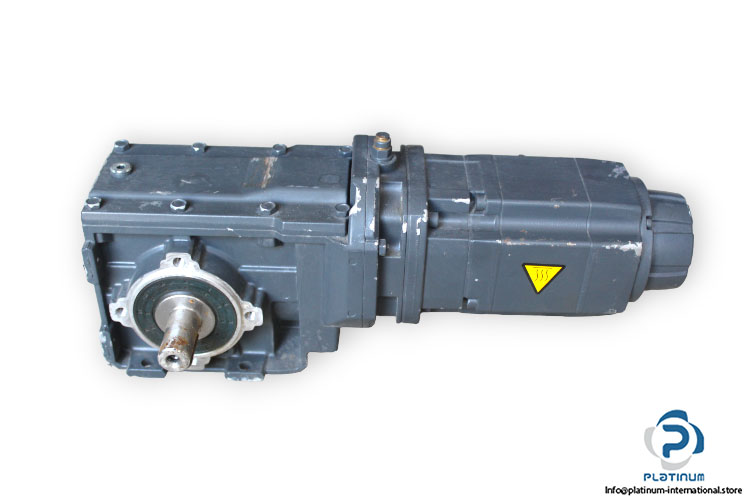

SIEMENS 1FG1501-1RD23-2HC1-Z SYNCHRONOUS SERVO GEARED MOTOR
This Siemens synchronous servo geared motor with bevel gearbox is engineered for high-performance and precise motion control. It delivers excellent output torque and efficiency for demanding industrial automation systems.
Manufacturer: Siemens
Type: Synchronous Servo Geared Motor Bevel Gearbox

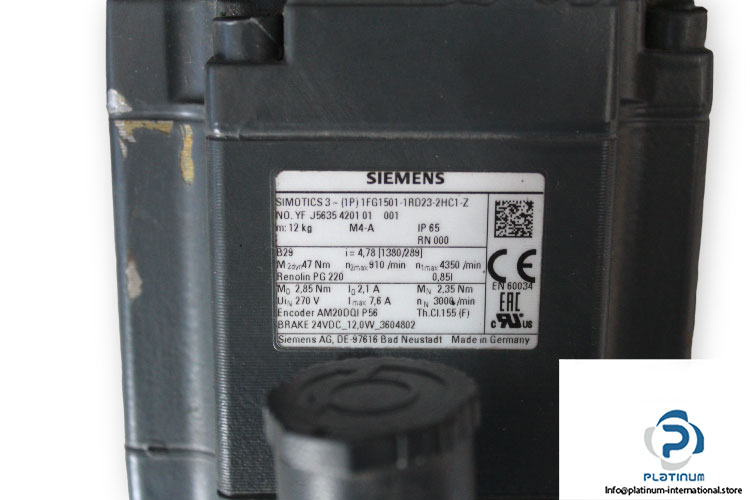

Model: 1FG1501-1RD23-2HC1-Z
NO.YF: J5635 4201 01 001
Encoder: AM20DQI P56
| Stall Torque | 2.85 Nm |
| Rated Torque | 2.35 Nm |
| Stall Current | 2.1 A |
| Max. Current | 7.6 A |
| Rated Voltage | 270 V |
| Rated Speed | 3000 rpm |
| Ratio | 4.78 (1380/289) |
| Output Torque | 47 Nm |
| Max. Input Speed | 4350 rpm |
| Max. Output Speed | 910 rpm |
| Lubrication | Renolin PG 220 |
| Lubricant Quantity | 0.85 L |
| Brake Voltage | 24 VDC |
| Brake Power | 12.0 W |
| Protection Class | IP65 |
| Insulation Class | F |
