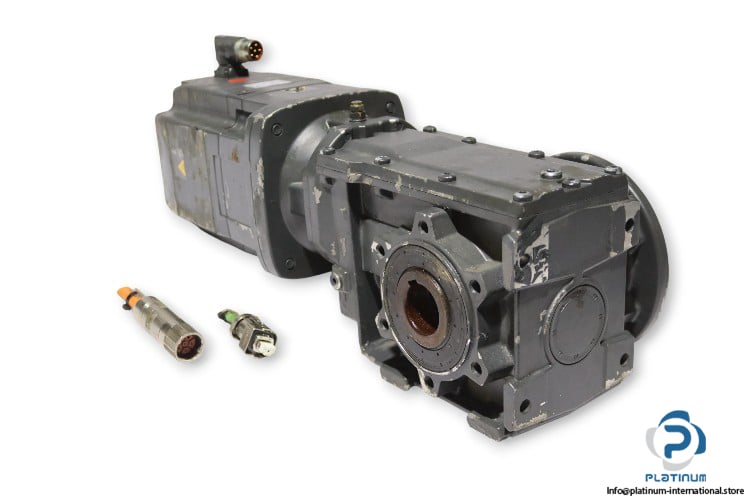

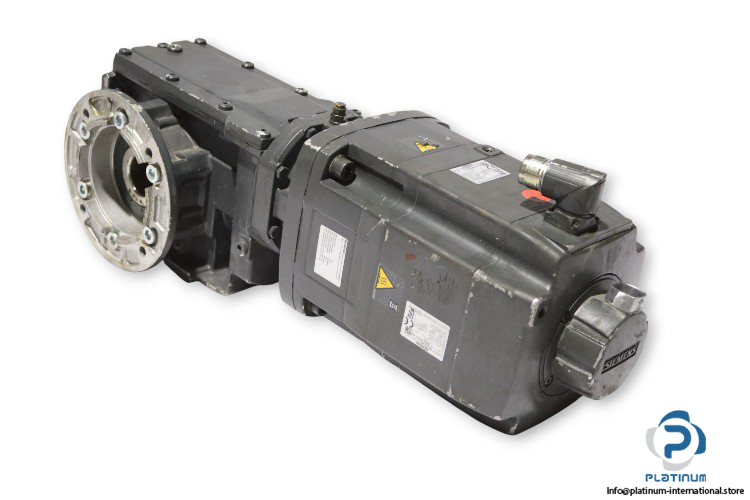

Siemens 1FG1502-6RF33-2FH1-Z Servomotor With Gear
1 599,99$
Servomotor with Gear
High-performance Siemens SIMOTICS 3-phase servomotor with integrated gearbox. Rated at 308 V, 1000 W, and 15.5 Nm torque, delivering precision control, strong acceleration, and reliable operation for industrial automation systems.Siemens SIMOTICS 1FG1502-6RF33-2FH1-Z 3-Phase Servomotor with Gear
The Siemens SIMOTICS 1FG1502-6RF33-2FH1-Z is a high-performance 3-phase AC servomotor integrated with precision gearing for demanding industrial motion control applications. Designed to deliver exceptional dynamic response, high torque output, and smooth operation, this motor ensures reliable performance under continuous duty. It is engineered for automation systems requiring accurate positioning, speed regulation, and mechanical robustness.
Manufacturer: Siemens
Brand: SIMOTICS
Type: 3-Phase Servomotor with Gear
Model: 1FG1502-6RF33-2FH1-Z
Part No.: N2630 6210 01 001

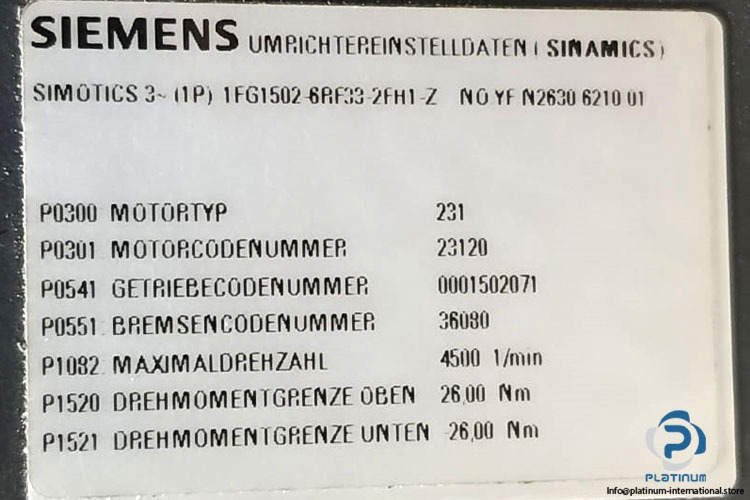

Brake Code Number: 36080
Gearbox Code Number: 0001502071
With its compact design, high torque density, and precision gearbox, the SIMOTICS 1FG1502-6RF33-2FH1-Z offers exceptional control and reliability in robotic arms, conveyor systems, packaging machinery, and automated production lines. The integrated 24 VDC brake enhances safety and stability during power-off conditions. Engineered for durability, the IP65 protection ensures resistance to dust and moisture, making it ideal for demanding industrial environments.
This motor is part of Siemens™ advanced SIMOTICS range”known for efficiency, precision, and seamless integration into modern automation architectures.

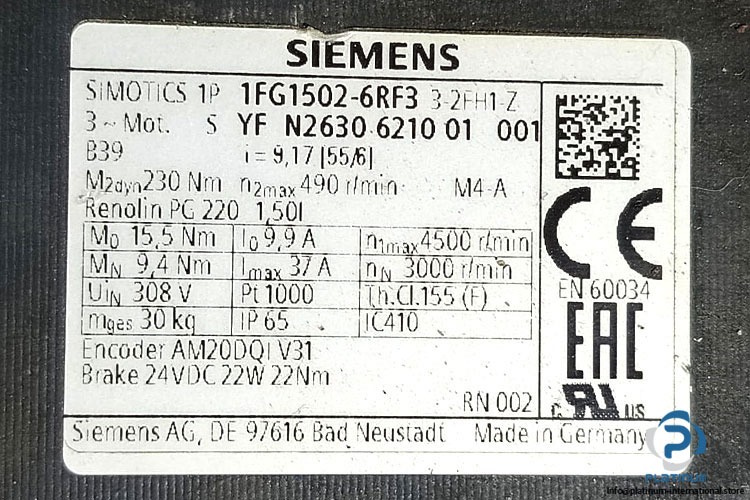

| Motor Type | 3-Phase AC Motor |
| Rated Voltage (Uly) | 308 V |
| Rated Current (In) | 9.9 A |
| Maximum Current (Imax) | 37 A |
| Rated Power (Pt) | 1000 W |
| Rated Speed (n‚™) | 3000 rpm |
| Maximum Speed (n‚˜‚‚“) | 4500 rpm |
| Dynamic Torque (Mdyn) | 230 Nm |
| Nominal Torque (Mn) | 15.5 Nm |
| Minimum Torque (Mmin) | 9.4 Nm |
| Brake Type | 24 VDC / 22 Nm / 22 W |

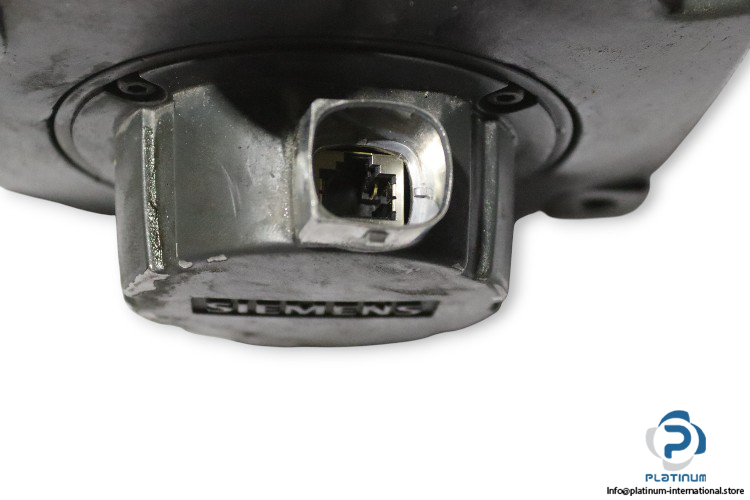

| Encoder Type | AM20DQ V31 |
| Gear Ratio (i) | 9.17 / 55.6:1 |
| Lubrication | Renolin PG 220, 1.50 l |
| Protection Class | IP65 |
| Thermal Class | 155 (F) |
| Torque Limit (Upper / Lower) | 26.00 Nm |
| Standard Compliance | EN 60034, EAC Certified |

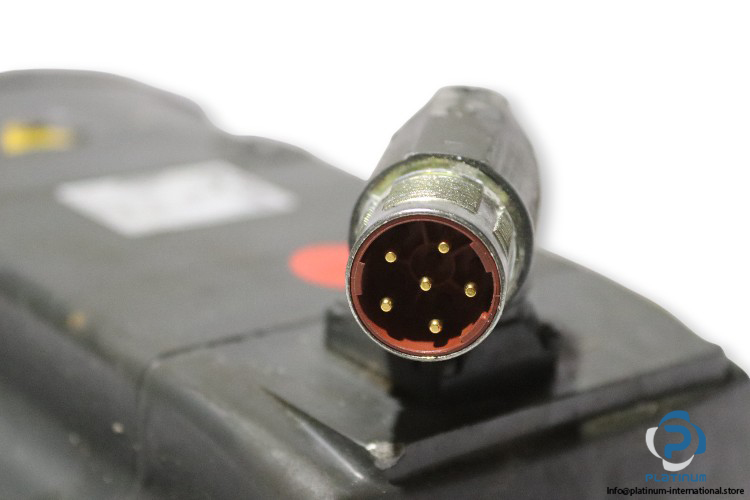

| Connection Interface | Power and feedback connectors with encoder interface |
