Siemens 1FK7063-2AF71-1RH0 Synchronous Motor
Used
In stock1 unitReady to ship
3-Phase Synchronous Servomotor
Siemens SIMOTICS 1FK7063-2AF7 1-1RH0 servomotor, frame size 63, 11 Nm rated torque, 272 V 3-phase, 7200 rpm max speed, absolute encoder, and 24 V DC holding brake.1FK71FK7063-2AF73CNCDriveHighIndustrialmotorPhasePrecisionS120ServoServomotorSiemensSimoticsSinamics
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

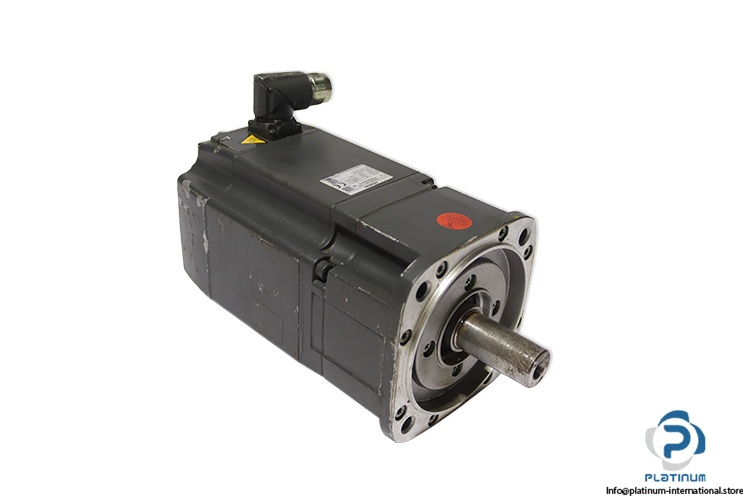

Siemens 1FK7063-2AF7 1-1RH0 SIMOTICS 3-Phase Synchronous Servomotor
The Siemens SIMOTICS 1FK7 servomotor is a high-performance 3-phase synchronous servomotor engineered for precision motion control applications within the SINAMICS S120 drive system.
Manufacturer: Siemens
Type: 3-Phase Synchronous Servomotor
MNR: 1FK7063-2AF7 1-1RH0
Brand Name: SIMOTICS
Drive Family: SINAMICS S120
Series: 1FK7
No. YF.: N2630621010 001
Marking Code: RN 007
Encoder Model: AM20DQI
Ideal for CNC machinery, robotics, packaging systems, and high-precision industrial automation requiring dynamic performance and accurate positioning.

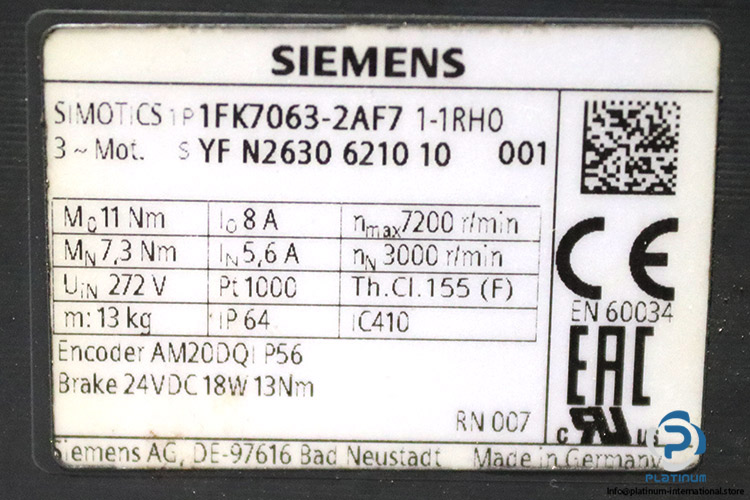

| Frame Size | 63 |
| Rated Torque (Mš) | 11 Nm |
| Nominal Torque (Mš„¢) | 7.3 Nm |
| Rated Current (Iš) | 8 A |
| Nominal Current (Iš„¢) | 5.6 A |
| Rated Voltage (Uš„¢) | 272 V 3-Phase |
| Nominal Speed (nš„¢) | 3000 rpm |
| Maximum Speed | 7200 rpm |
| Protection Class | IP64 |
| Brake Voltage | 24 V DC |
| Brake Power | 18 W |
| Brake Torque | 13 Nm |
| Compliance | EN 60034, CE, EAC |
| Power Class | IC410 (Surface cooled, natural convection) |
| Encoder | Absolute encoder 20 bits (resolution 1048576) + 12 bits multi-turn (4096 revolutions), IP56 protection |
| Temperature Sensor | Pt1000 integrated |
| Thermal Class | 155 (F) |

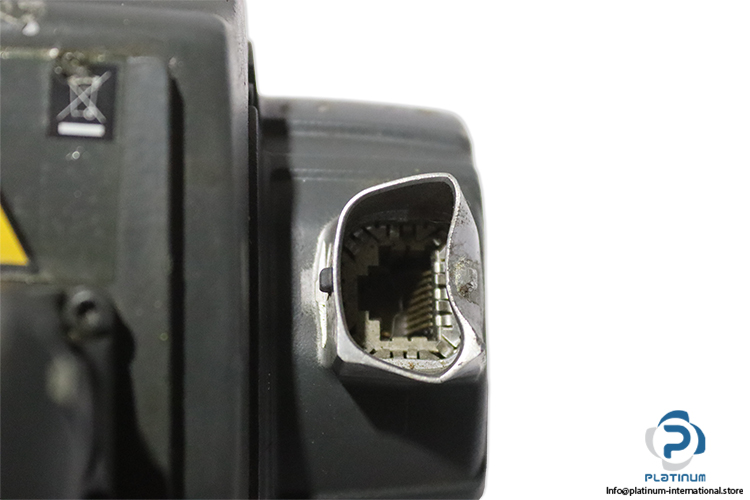

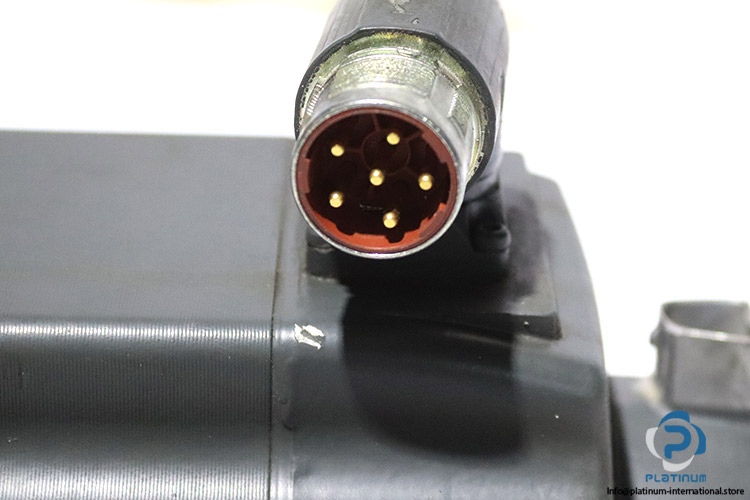

| Connection Type | Circular multi-pin connector for encoder feedback, power cable inertance |
