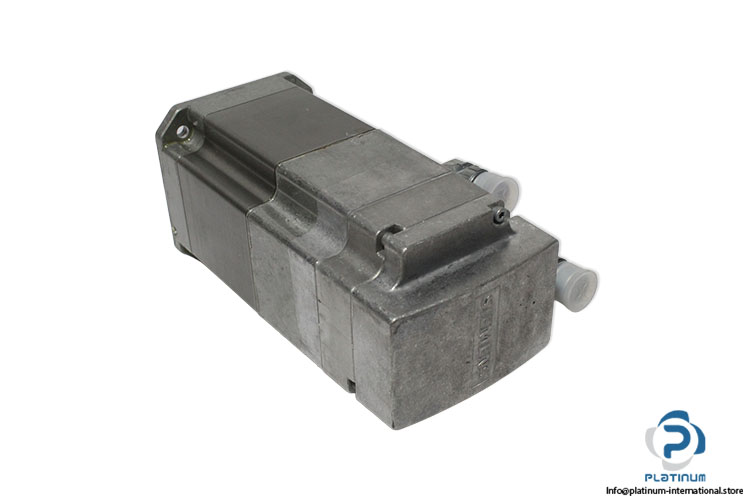

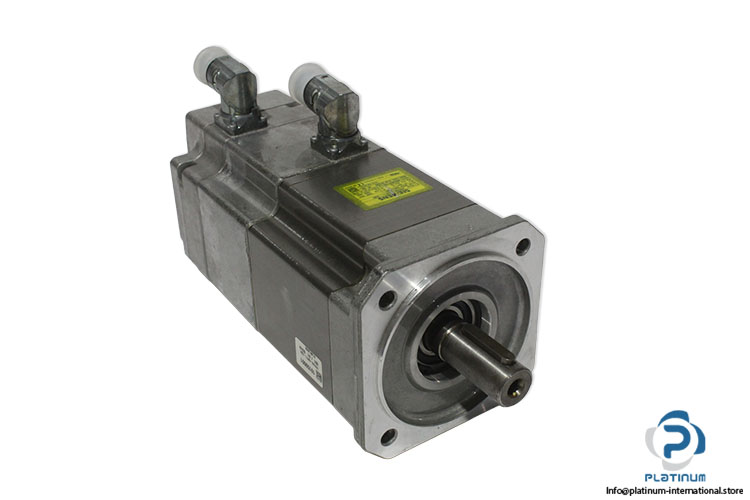

Siemens 1FK7063-5AF71-1EB0 Servo Motor
New
In stock1 unitReady to ship
Servo Motor Industrial SIEMENS servo motor with 3000 rpm rated speed, integrated encoder, and IP64 protection for high-precision motion control and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

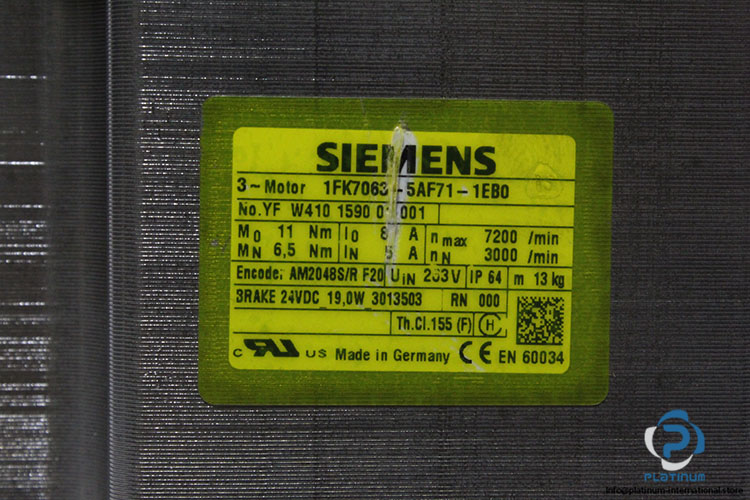

| No.YF | W410 1590 01 001 |
| Rated speed (100 K) | 3,000 rpm |
| Number of poles | 8 |
| Rated torque (100 K) | 7.3 Nm |
| Rated current | 5.6 A |
| Static torque (60 K) | 9.10 Nm |
| Static torque (100 K) | 11.00 Nm |
| Stall current (60 K) | 6.60 A |
| Stall current (100 K) | 8.00 A |
| Moment of inertia | 17.300 kgcm² |
| Efficiency | 91.0 % |
| Torque constant | 1.37 Nm/A |
| Voltage constant at 20º C 87.5 | V/1000*min¯¹ |
| Winding resistance at 20º C | 0.65 ? |
| Rotating field inductance | 7.7 mH |
| Electrical time constant | 11.80 ms |
| Mechanical time constant | 1.56 ms |
| Thermal time constant | 40 min |
| Shaft torsional stiffness | 35,000 Nm/rad |
| Shaft height | 63 |
| Cooling | Natural cooling |
| Radial runout tolerance | 0.040 mm |
| Concentricity tolerance | 0.10 mm |
| Axial runout tolerance | 0.10 mm |
| Vibration severity grade Grade | A |

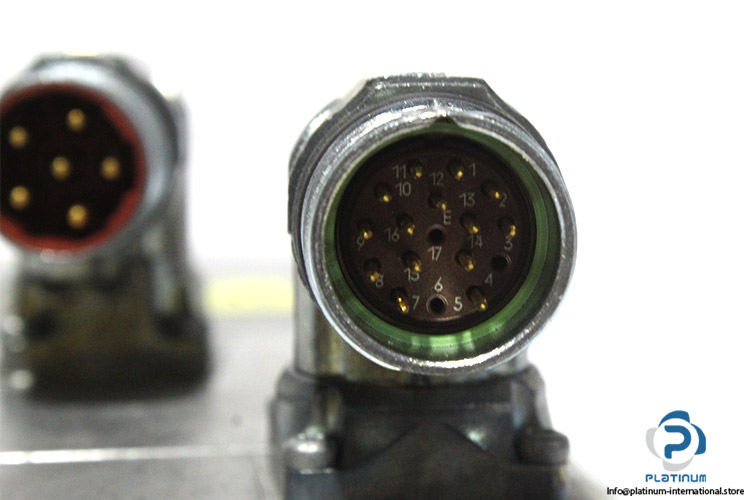

| Connector size | M23 |
| Degree of protection | IP64 |
| Design acc. to Code | I IM B5 (IM V1, IM V3) |
| Temperature monitoring | KTY84 temperature sensor in the |
| Encoder system | Encoder AM2048S/R F20 absolute encoder 2048 S/R, 4096 revolutions multi-turn, with EnDat interface |
| Optimum speed | 3,000 rpm |
| Optimum power | 2.3 kW |
| Input voltage | 253 V |
| Max. permissible speed (mech.) | 7,200 rpm |
| Max. permissible speed (inverter) | 6,600 rpm |
| Maximum torque | 35.0 Nm |
| Maximum current | 28.0 A |
| Holding brake version | Permanent-magnet brake |
| Holding torque | 13.0 Nm |
| Brake supply voltage DC | 24 V ± 10 % |
| Coil current | 0.8 A |
| Opening time | 100 ms |
| Closing time | 50 ms |
| Highest braking work | 380 J |
| Rated inverter current | 9 A |
| Maximum inverter current | 18 A |

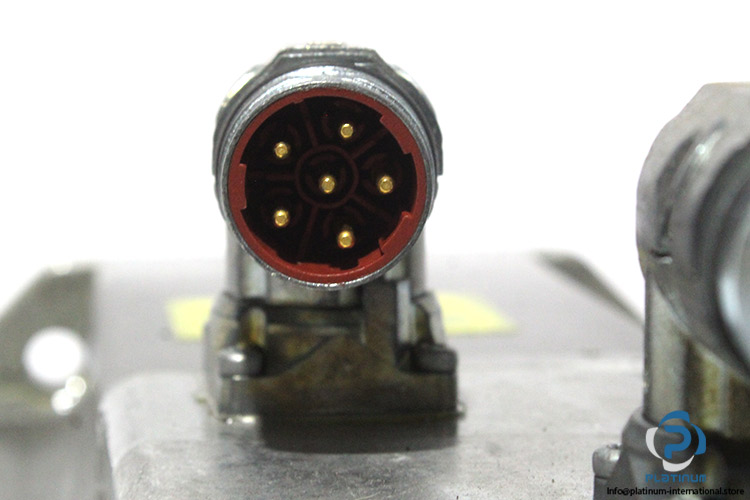

| Electrical connectors | Connectors for signals and power |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100394 |
| Weight | 12,58 |
