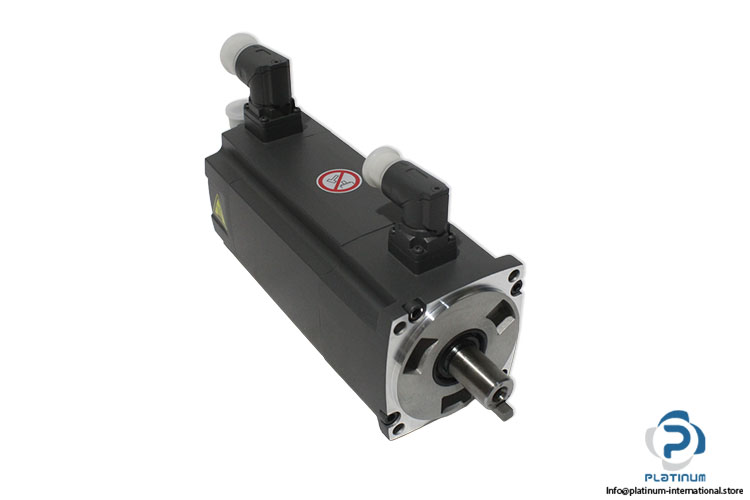

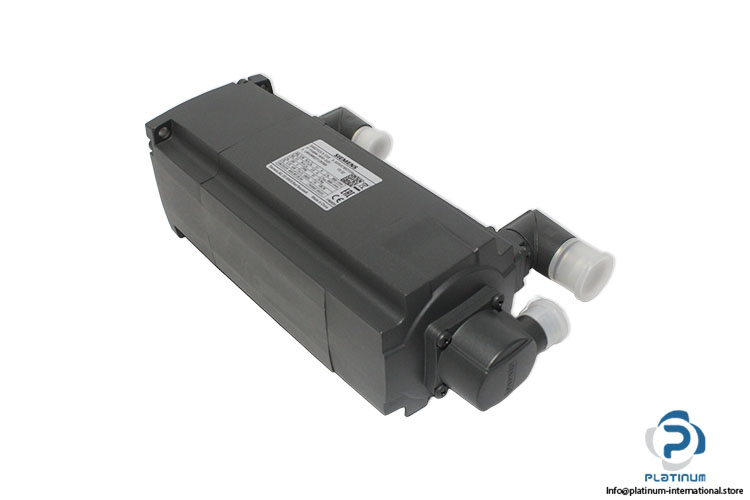

Siemens 1FL6044-1AF61-2LB1 Servo Motor
New
In stock2 unitsReady to ship
Servo Motor Industrial SIEMENS servo motor with 3000 rpm rated speed, integrated encoder, and protection for high-precision motion control and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

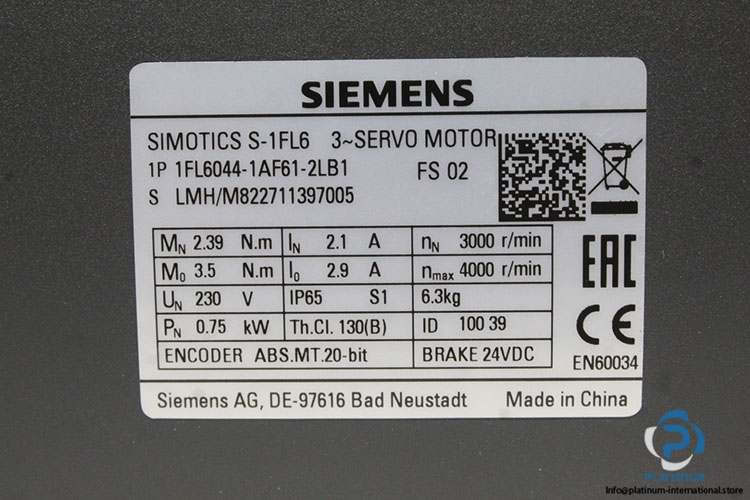

| No.S | LMH/M822711397005 |
| FS | 02 |
| Family | SIMOTICS S-1FL6 |

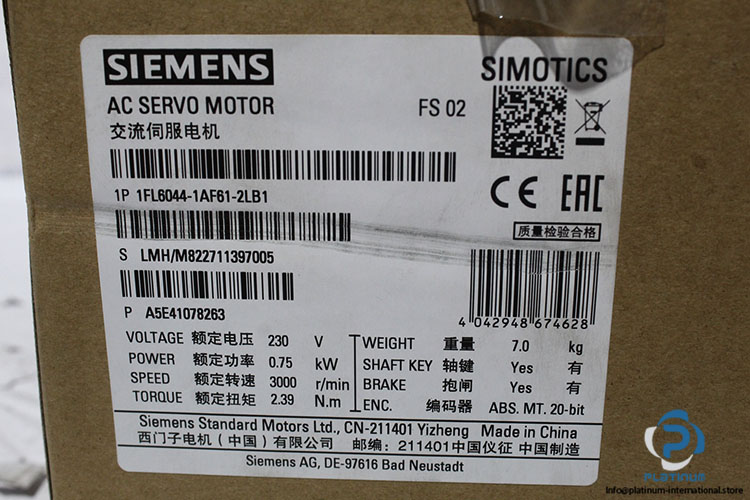

| Ref no | A5E41078263 |
| Motor type | High Dynamic |
| Static torque | 3.5 Nm |
| Static current | 2.9 A |
| Maximum torque | 7.50 Nm |
| Maximum current | 7.6 A |
| Maximum speed | 6,700 rpm |
| Rotor moment of inertia | 0.6500 kgcm² |
| Rated speed | 3,000 rpm |
| Rated voltage | 230 v |
| Brake Voltage | 24 vdc |
| Rated torque | 2.40 Nm |
| Rated current | 2.1 A |
| Rated power | 0.75 Kw |
| Encoder system | Encoder AM22DQC: Absolute encoder 22 bit + 12 bit multiturn |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |
| Vibration severity grade | Grade A |
| Shaft height | 40 |
| Flange size (AB) | 80 mm |
| Centering ring (N) | 70 mm |
| Hole circle (M) | 90 mm |
| Screw-on hole (S) | 6.5 mm |
| Overall length (LB) | 170 mm |
| Diameter of shaft (D) | 19 mm |
| Length of shaft (E) | 40 mm |
| Length of flange diagonal (P) | 105 mm |
| Shaft end | Fitted key |
| Color of the housing | Standard (Anthracite, similar to RAL |
| Holding torque | 3.30 Nm |
| Average dynamic torque | 3.30 Nm |
| Opening time | 50 ms |
| Closing time | 40 ms |
| Maximum single switching energy 1) | 270 J |
| Service life, operating energy | 120,000 J |
| Holding current2) | 0.2 A |
| Break-induced current for 500 ms2) | 1.2 A |
| Attached ENCODER | ABS.MT.20-bit |

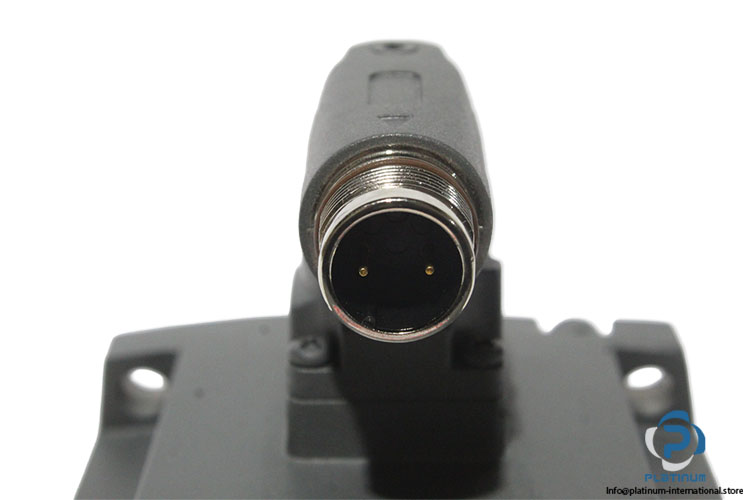

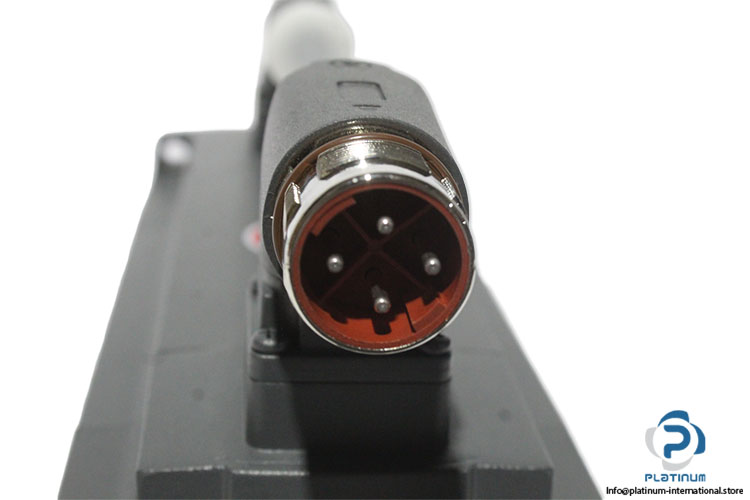

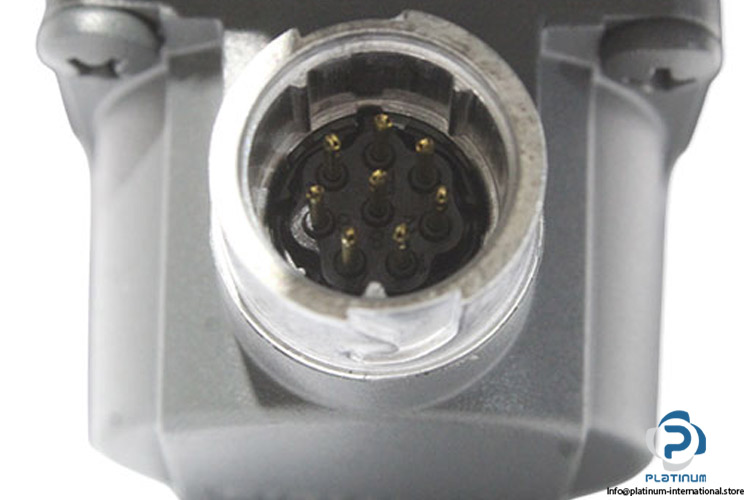

| Connection | Circular connector |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100400 |
| Weight | 7,66 |
