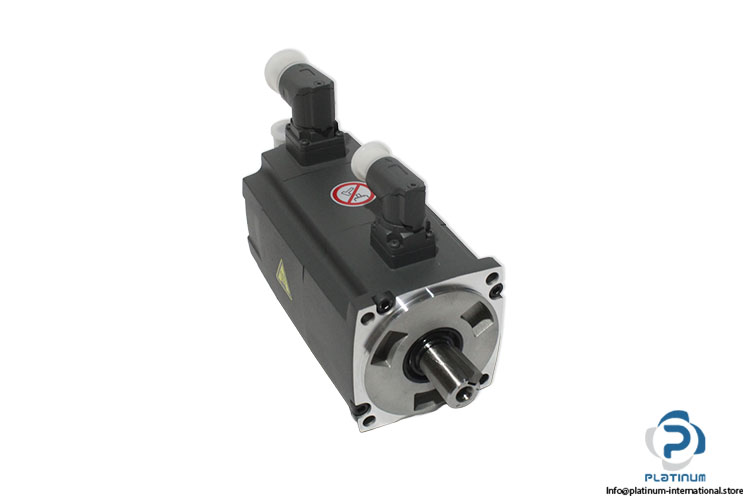

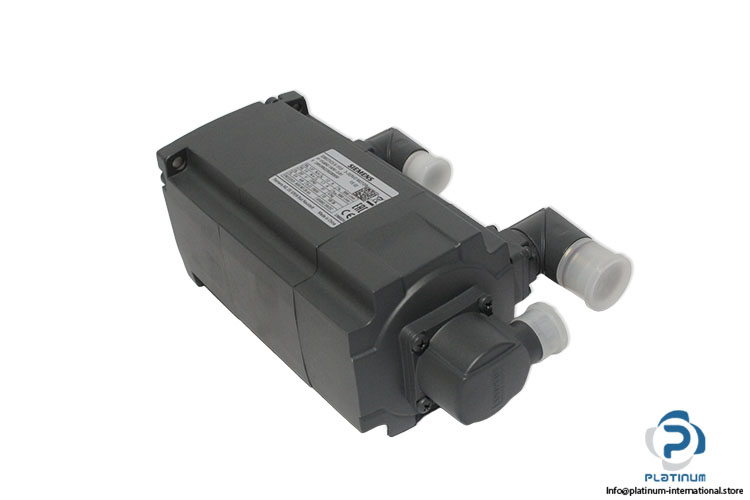

Siemens 1FL6064-1AC61-2LB1 Servo Motor
New
In stock1 unitReady to ship
Servo Motor Industrial SIEMENS servo motor with 3000 rpm rated speed, integrated encoder, and protection for high-precision motion control and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

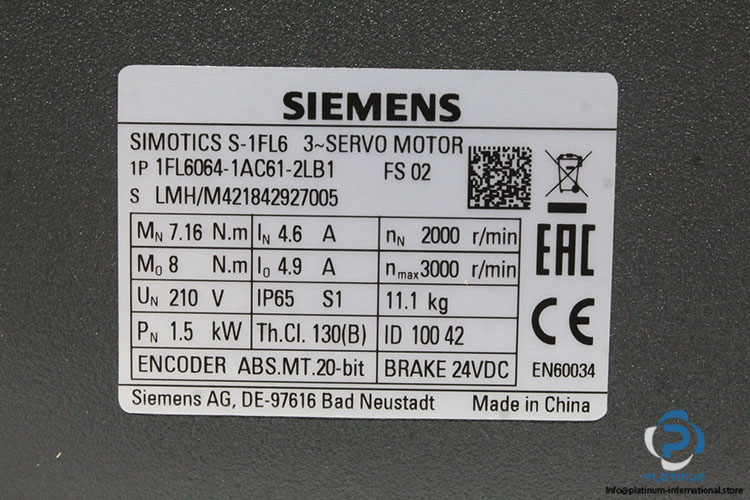

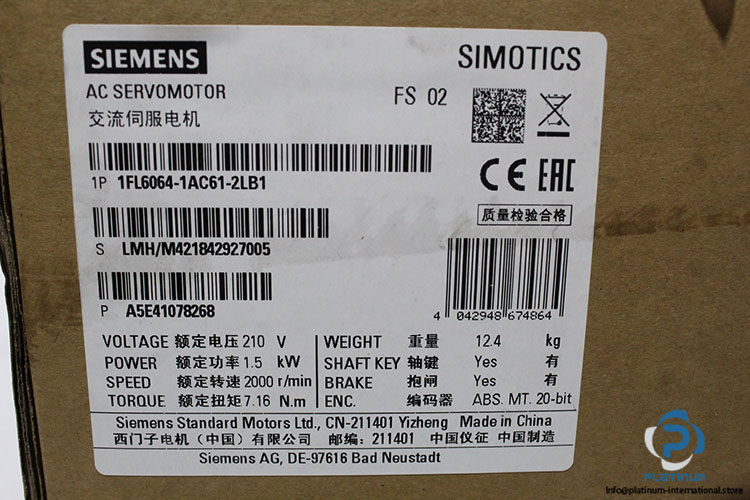

| MNR | 1FL6064-1AC61-2LB1 |
| S YF | LMH/M421842927005 |
| Family | SIMOTICS S-1FL6 |
| Ref No | A5E41078268 |
| FS | 02 |
| Rated voltage | 210 v |
| Rated torque (100 K) | 7.16 Nm |
| Rated current | 4.6 A |
| Static current | 4.9 A |
| Rated power | 1.50 kW / 2.04 hp |
| Max. speed | 3,000 rpm |
| Maximum torque | 21.50 Nm |
| Max. current | 13.8 A |
| Static torque | 8.00 Nm |
| Moment of inertia | 16.400 kgcm² |
| Torque constant | 1.60 Nm/A |
| Thermal class | B (130 °C) |
| Operation | 0 … 40 °C Relative humidity |
| Shaft height | 65 |

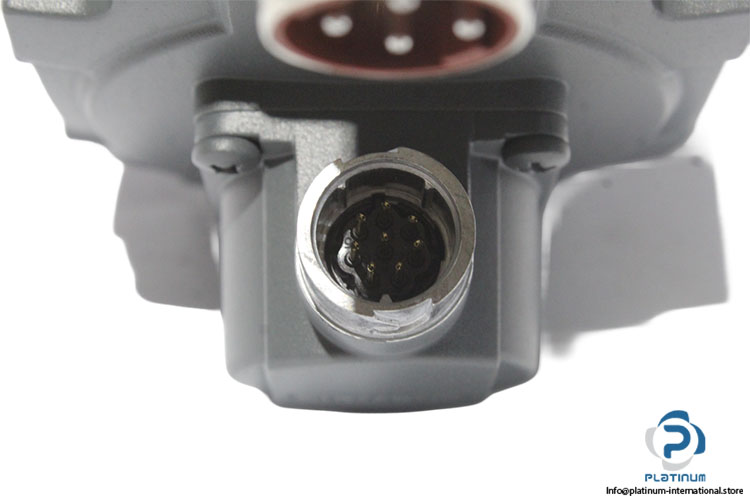

| Attached Encoder | ABS.MT.20-bit |
| Encoder system | Absolute encoder 20 bit + 12 bit multiturn Cooling Natural cooling |
| Shaft end | Feather key |
| Radial runout tolerance | Class N |
| Vibration severity grade | Grade A |
| Degree of protection | IP65 |
| Design acc. to Code I | IM B5 (IM V1, IM V3) |

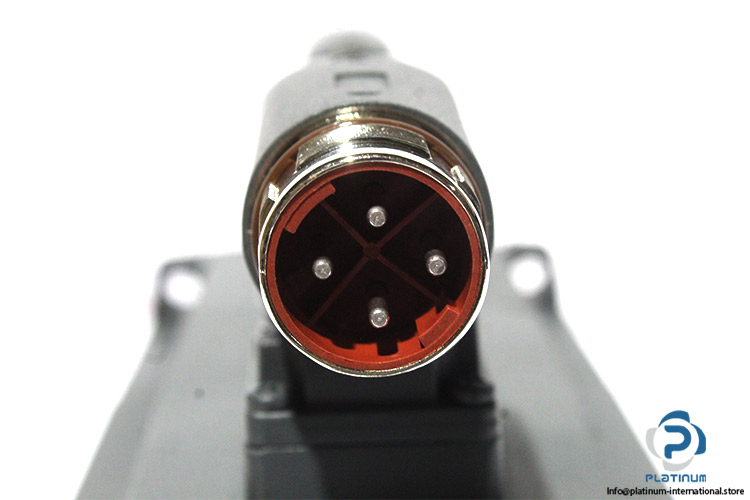

| Connection type | Angular connector (rotatable) |

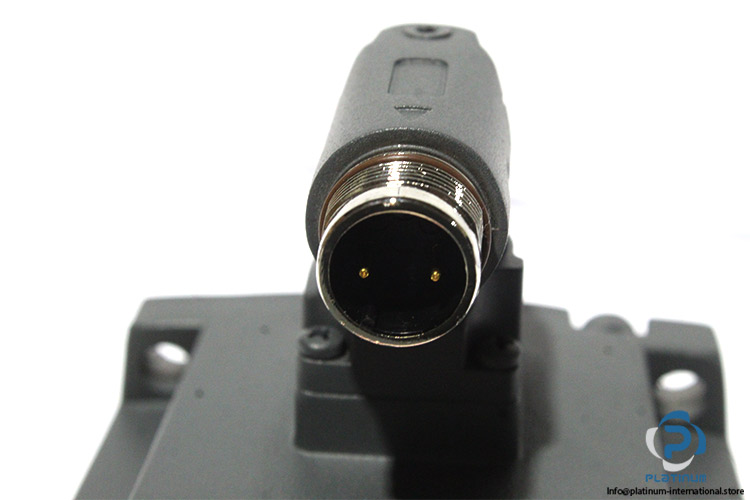

| Holding torque | M4Br 12.00 Nm |
| Rated voltage, brake | 24 V DC 10 % |
| Opening time | 180 ms |
| Closing time | 60 ms |
| Max. operation | 90 % RH |
| Connection | Circular connector |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100398 |
| Weight | 12,74 |
