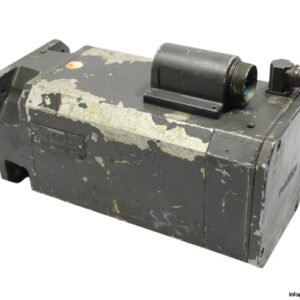

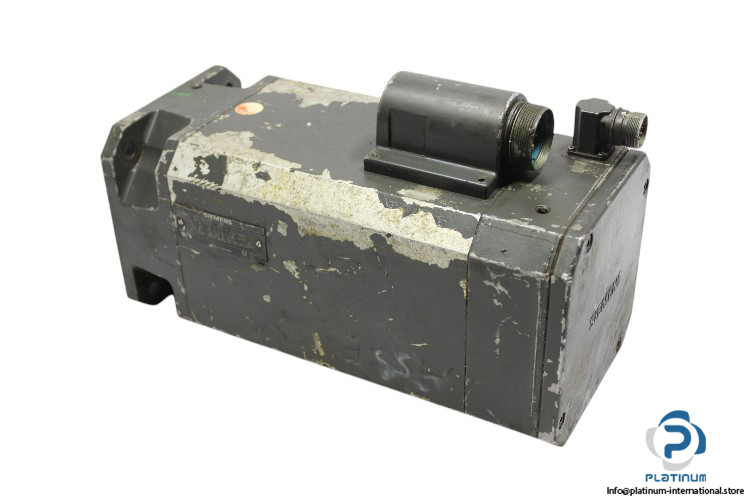

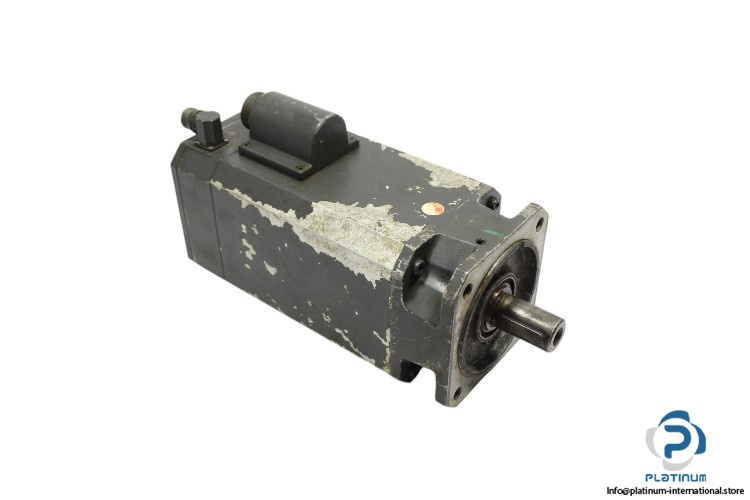

Siemens 1FT6084-8AF71-1AB2 Servomotor
servomotor
The Siemens Servomotor 1FT6084-8AF71-1AB2 (Part No. SD31 6951 01 004) provides precise motion control with 14 Nm torque, 3000 min-1 speed, and a robust IP67 protection class for industrial use.SIEMENS SERVOMOTOR
The Siemens Servomotor (Model: 1FT6084-8AF71-1AB2, Part No: SD31 6951 01 004) is a high-performance motor designed for precise and reliable operation in industrial applications. With a rated torque of 14 Nm and maximum speed of 7900 min-1, this servomotor ensures optimal performance across a range of applications requiring precise motion control.
Manufacturer: Siemens
Type: Servomotor
Model: 1FT6084-8AF71-1AB2
Part No: SD31 6951 01 004

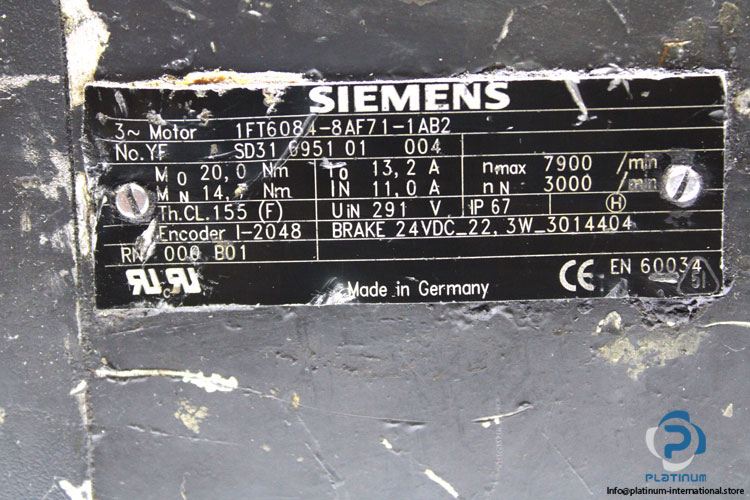

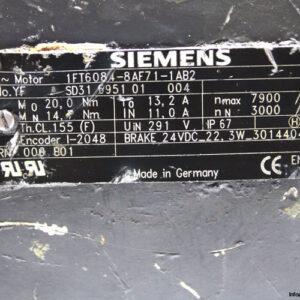

Technical Specifications
- Rated Current [A]: 11
- Stall Current [A]: 13.2
- Rated Torque [Nm]: 14
- Stall Torque [Nm]: 20.0
- Rated Voltage [V]: 291
- Rated Speed [min-1]: 3000
- Max. Speed [min-1]: 7900
- Protection Class [IP]: 67
- Thermal Class: F
- Encoder: I-2048
- Brake Voltage [Vdc]: 24
- Brake Power [W]: 22.3
