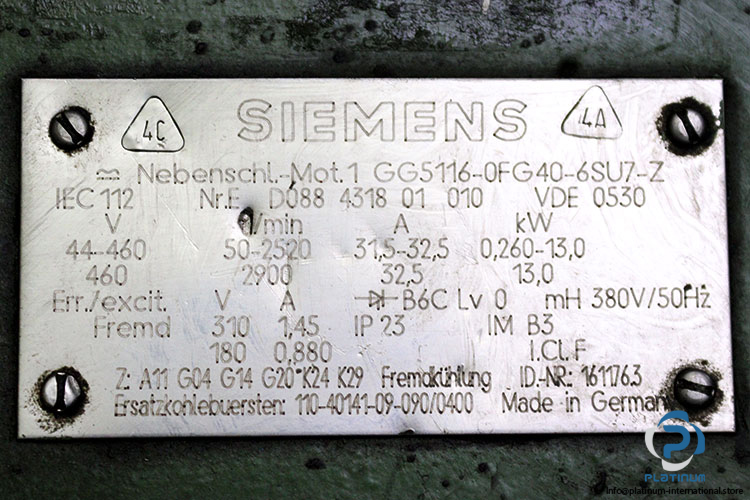

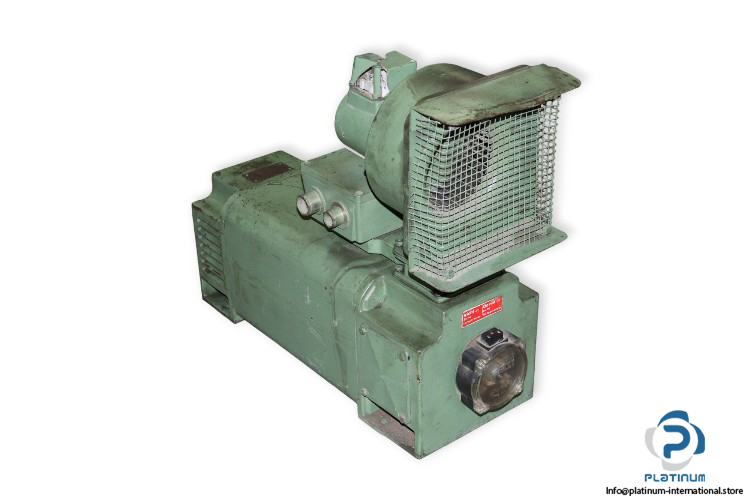

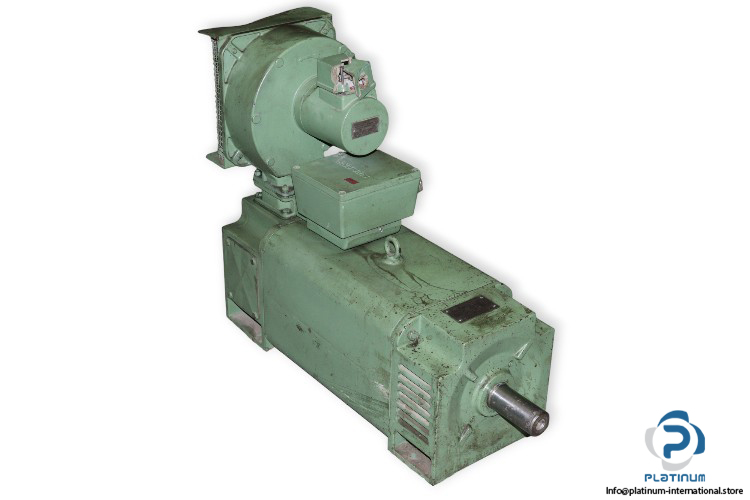

Siemens 1GG5116-0FG40-6SU7-Z DC Motor

Manufacturer: Siemens
Type: DC Motors
Model: 1GG5116-0FG40-6SU7-Z

Rated Current [A]: 31.5-32.5/32.5
Rated Voltage [V]: 44-460/460
Rated Power [Kw]: 0.26-13.0/13.0
Rated Speed [min^-1]: 50-2520/2900
Protection Class [IP]: 23
Thermal Class: F
Mounting Position [IM]: B3
Brake Voltage [V]: 310/180
Brake Current [A]: 1.45/0.88

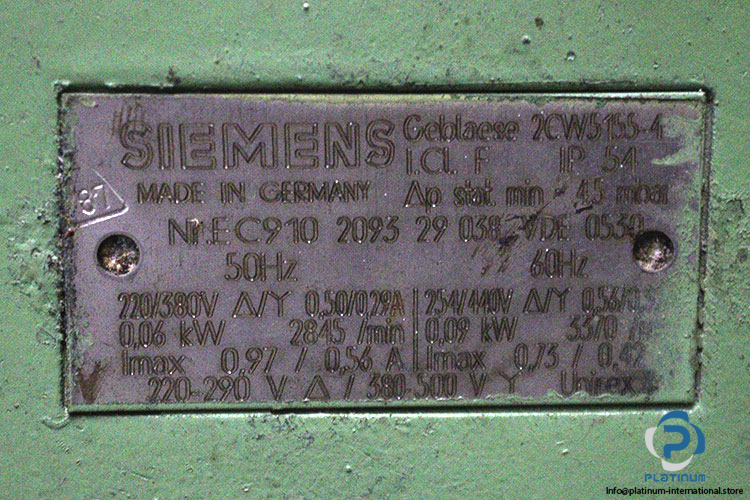

Attachment: Siemens 2CW5155-4 AC Motor
Manufacturer: Siemens
Type: 2CW5155-4
Model: AC Motor
Rated Power [Kw]: 0.06/0.09
Rated Voltage [V]: 220-380/254-440
Rated Current [A]: 0.5-0.29/0.56
Max. Current [A]: 0.97-0.56/0.73-0.42
Frequency [Hz]: 50/60
Speed [rpm]: 2845/3370
Thermal Class: F
Protection Class [IP]: 54
Thermal Class: F
Duty: S1

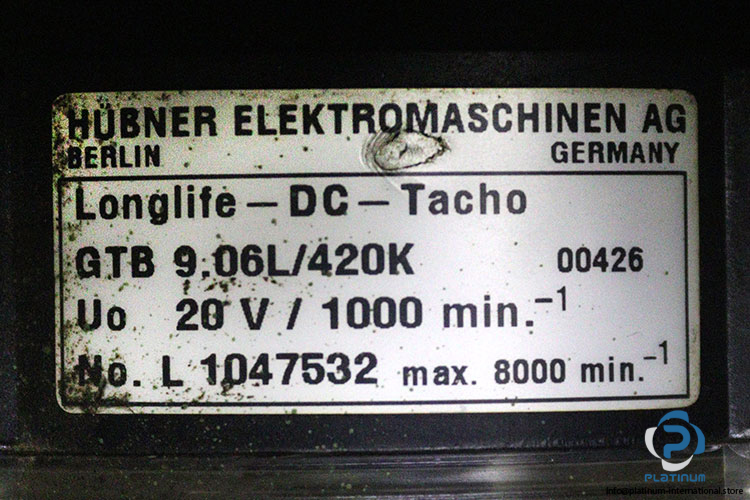

Hubner GTB 9.06L/420K Tacho
Manufacturer: Hubner
Type: GTB 9.06L/420K
Model: Tacho
Constant Voltage [V/Kmin^-1]: 20
Max. Speed [rpm]: 8000
