Siemens 1PF 2035-2VW28 3-PHASE Motor
3-Phase Motor With Motor Pusher

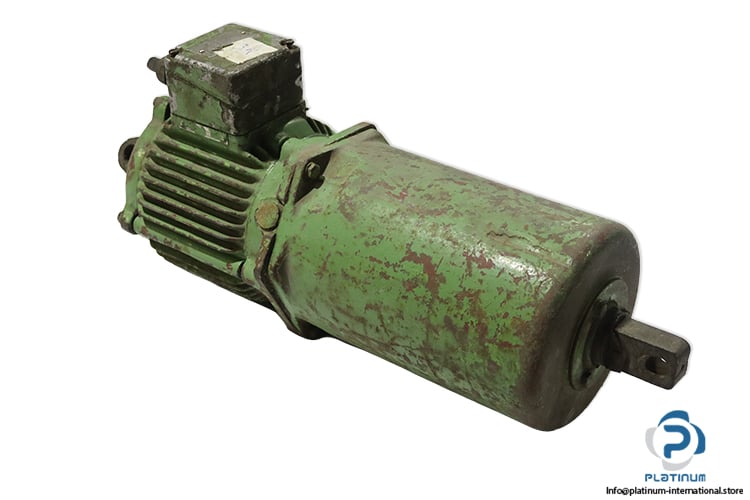

Siemens 1PF2035-2VW28 three-phase motor rated at 0.37 kW, 220/380 V, with delta/star connection, supplied with MD 16-200 electro-mechanical motor pusher.Siemens 1PF2035-2VW28 3-Phase Motor With MD 16-200 Motor Pusher
The Siemens 1PF2035-2VW28 is a compact and efficient three-phase electric motor from the 1PF series, designed for reliable operation in industrial applications. It delivers stable performance with delta/star connection and complies with VDE standards. The motor is supplied with a Siemens electro-mechanical motor pusher, providing controlled linear actuation.
Manufacturer: Siemens
Type: 3-Phase Motor
Model: 1PF2035-2VW28
Part No.: 218172403097
Series: 1PF
Code: KL16

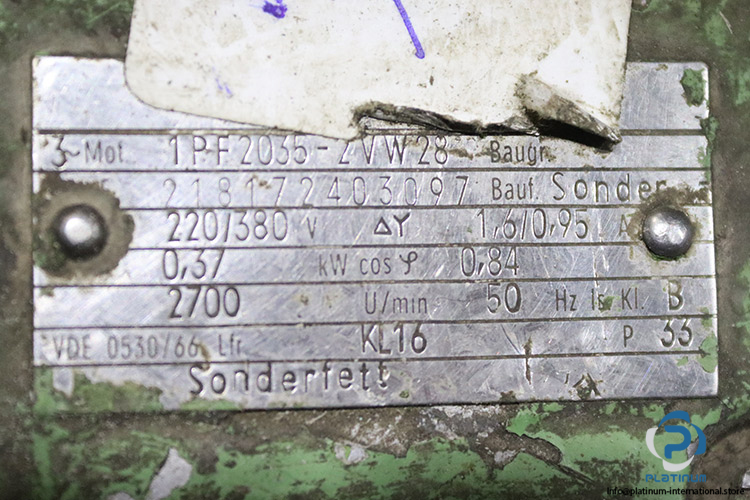

Technical Information “ Motor
Rated Voltage: 220 / 380 V
Rated Current: 1.6 / 0.95 A
Connection: Delta / Star
Frequency: 50 Hz
Power: 0.37 kW
Speed: 2700 RPM
Power Factor: 0.84
Insulation Class: Class B
Protection Rating: IP33
Standard: VDE 0530/66
Rotor Design Class: KL16

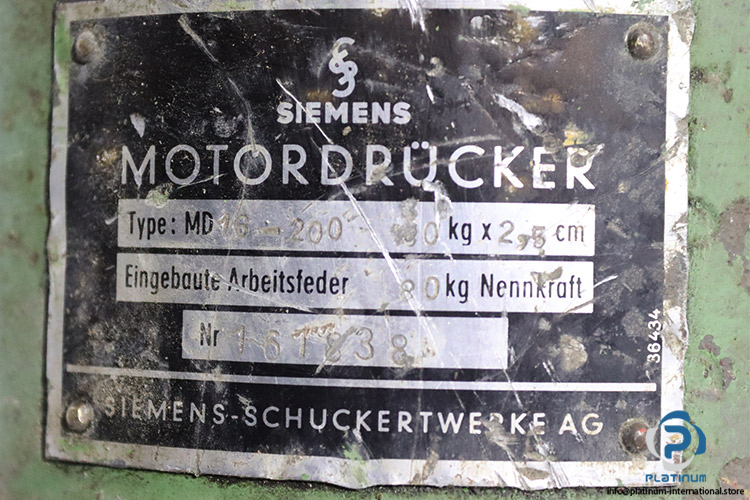

Attached Unit “ Motor Pusher / Electro-Mechanical Actuator
Manufacturer: Siemens
Product Type: Motor Pusher / Electro-Mechanical Actuator
Model: MD 16-200
Part Number: 161838
Technical Information “ Motor Pusher
Stroke Length: 2.5 cm
Built-in Working Spring: 80 kg nominal force
