Siemens 3LD2264-1GP51 Main Switch
New
In stock1 unitReady to ship

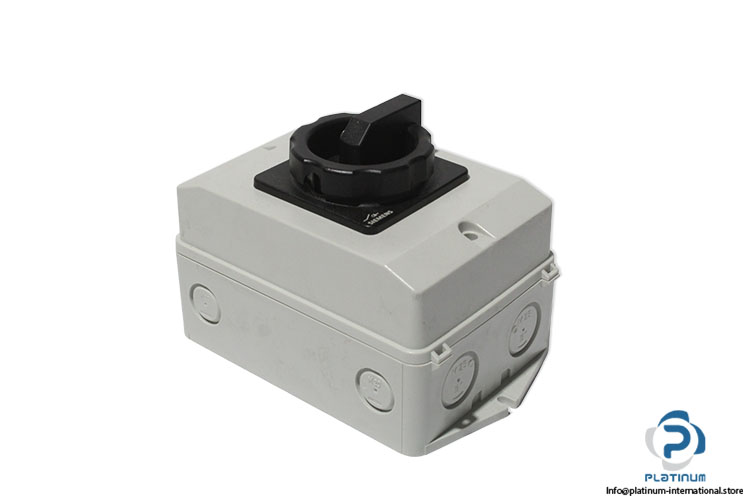

The Siemens 3LD2264-1GP51 SENTRON Main Switch is a 32 A switch disconnector with a 690 V insulation voltage, IP65 molded-plastic enclosure, and black rotary operating mechanism. Designed for industrial power isolation, it complies with IEC/EN 60947-3 standards and is suitable for motor control and power distribution systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | 0921 |
| Brand Name | SENTRON |

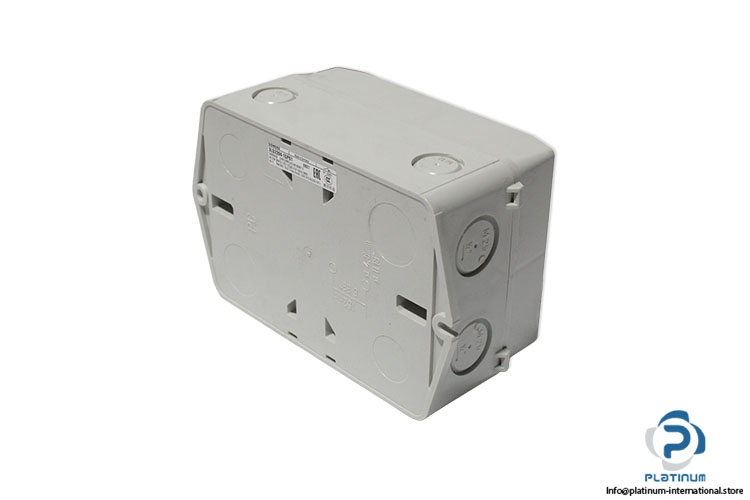

| Type Of Switch | Molded-plastic enclosure for metric threaded joint |

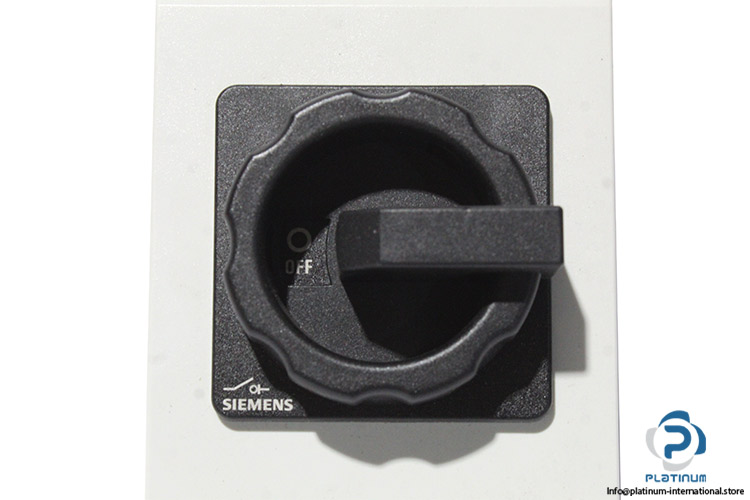

| Design Of The Actuating Element | Short rotary knob |
| Color Of The Actuating Element | black |
| Design Of Handle | rotary operating mechanism, black |
| Insulation Voltage | 690V |
| Operating Current | 32A |
| Frequency | 50/60Hz |

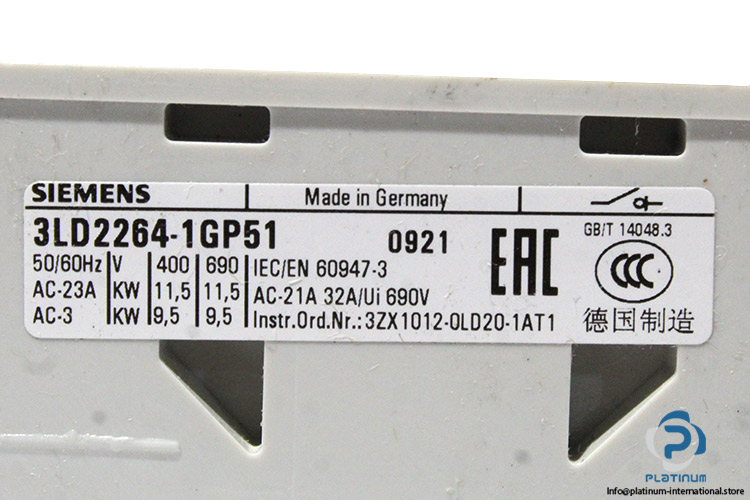

| Power | (AC-23A: 400V & 690V, 11,5KW), (AC-3: 400V & 690V, 9,5KW) |
| Number Of Poles | 3 |
| Size Of Switch Disconnector | 2 |
| Fastening method | Complete unit in enclosur |
| Ambient Temperature | -25 to 55 °C |
| Protection Degree | IP65 |
| Standard | IEC/EN 60947-3, GB/T 14048.3 |
| Dimensions | 152mmx100mmx117mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093355 |
| Weight | 0,44 |
