Siemens 3NA3 822-7 Fuse Link
New
In stock6 unitsReady to ship
Fuse Link
Siemens SENTRON 3NA3822-7 LV HRC fuse link, size NH00 with 63 A rating and 500 V AC / 250 V DC operation. Provides high safety with IP20 protection and 120 kA breaking capacity.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

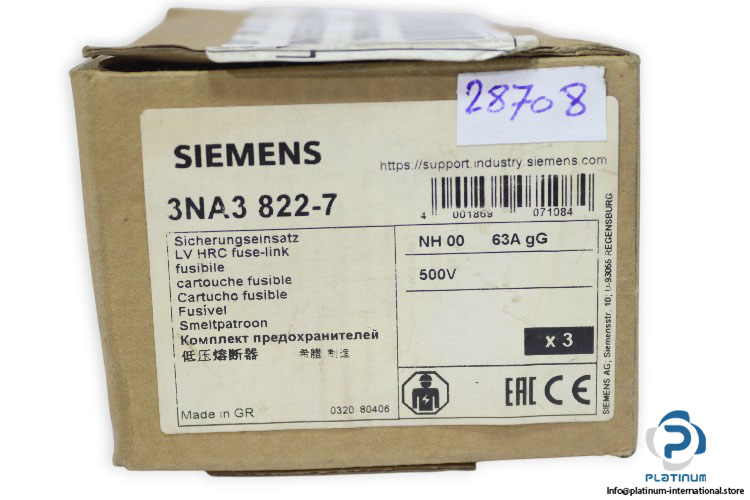

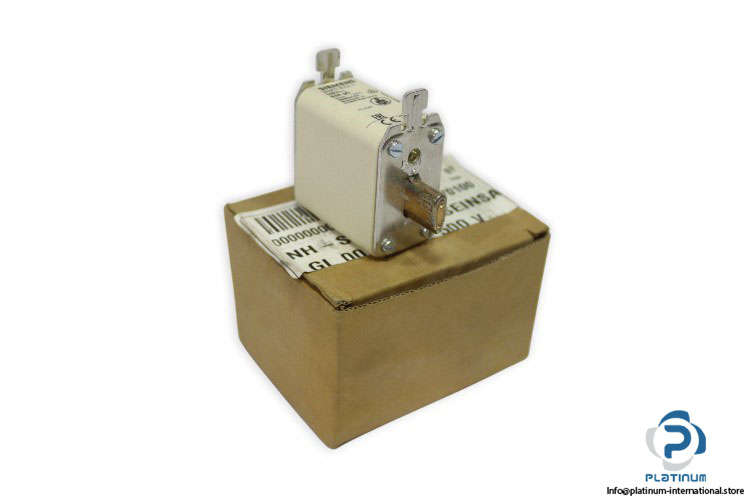

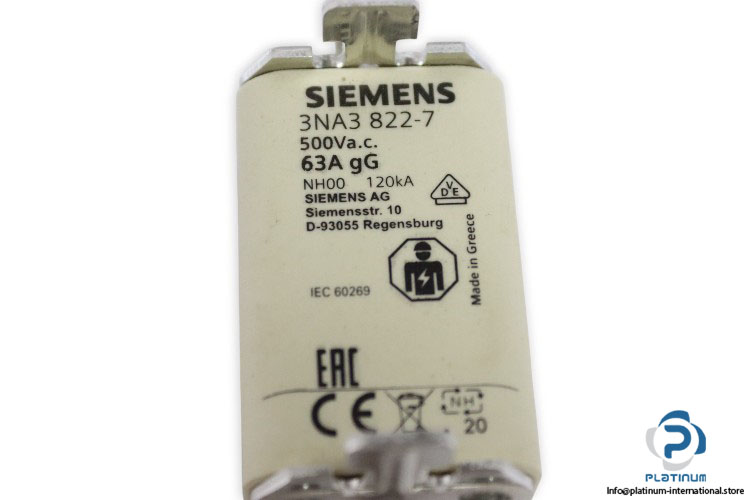

Siemens SENTRON 3NA3822-7 Fuse Link
The Siemens SENTRON 3NA3822-7 Fuse Link is a low-voltage HRC fuse designed for reliable circuit protection in industrial and electrical systems. Engineered to ensure safety and efficiency, it combines high breaking capacity with compact NH00 size for versatile installations.
Manufacturer: Siemens
Type: Fuse Link
MNR: 3NA3822-7
Series: 3NA3
Brand Name: SENTRON
Designation: LV HRC Fuse Link
| Size | NH00 |
| Rated Current | 63 A |
| Supply Voltage | 500 V AC / 250 V DC |
| Breaking Capacity at AC | 120 kA |
| Power Loss | 4.6 W |
| Operating Class | gG |
| Mounting Type | Non-insulated grip lugs |
| Mounting Position | Any, preferably vertical |
| Identification Indicator | Front indicators |
| Protection Proof | IP20 |
| Dimensions | 21 x 77.8 x 52.5 mm |
| Ambient Temperature | -5 to 40°C |
