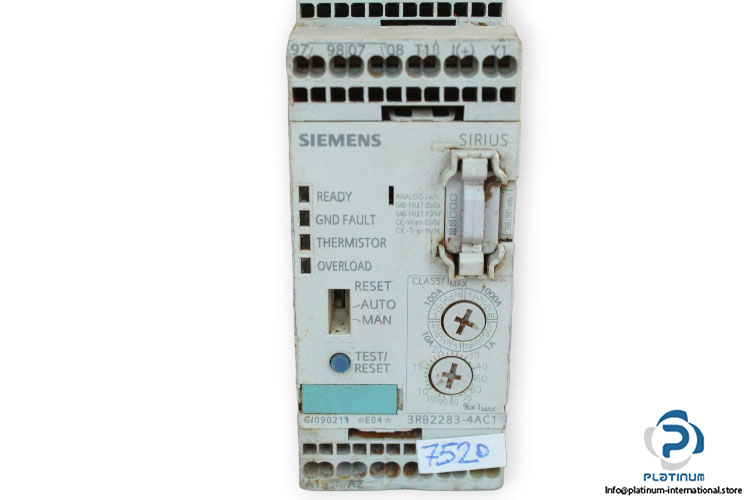

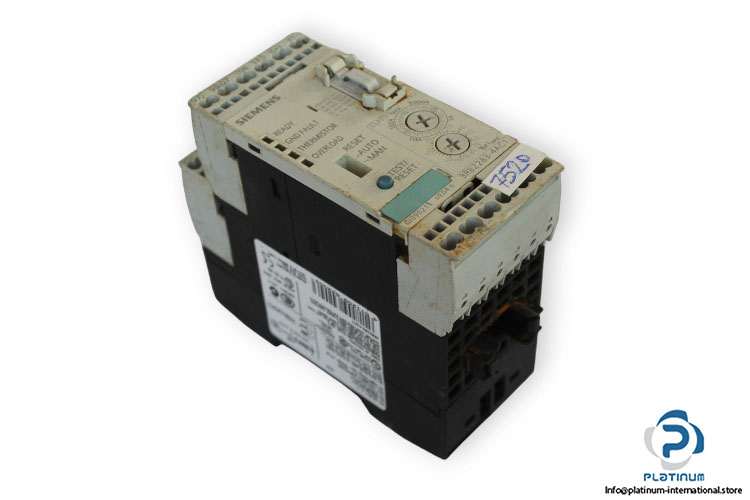

Siemens 3RB2283-4AC1 Evaluation Unit
Manufacturer: Siemens
Type: Evaluation unit
Model: 3RB2283-4AC1
Supply Voltage: 24 … 240 V AC
Insulation Voltage: 300 V
Impulse withstand Voltage: 4 kV
No. of Poles: 3
Contact Configuration: 2 Normally Open, 2 Normally Close
Contact Voltage: 24 … 250 V AC/DC
Contact Current: 6 … 3 A (AC)/ 2 … 0.2 A (DC)
Protection Type: Explosion Proof
Operating Temperature: -25 … 60 °C
Degree of protection: IP20
Dimensions: 111 X 45 X 95 mm
