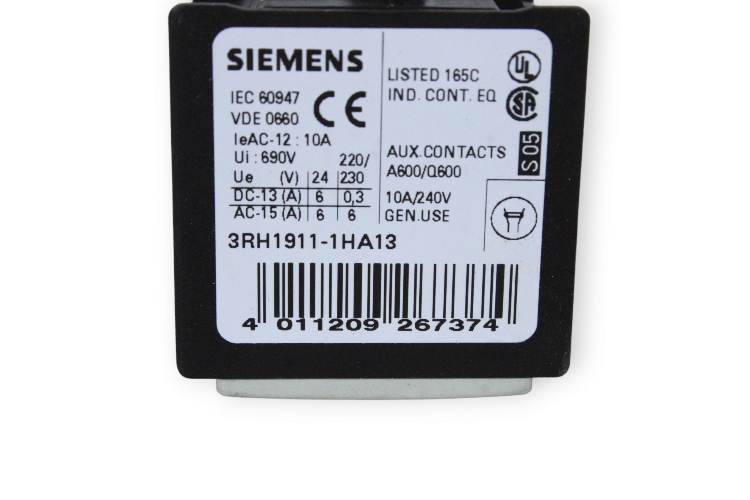

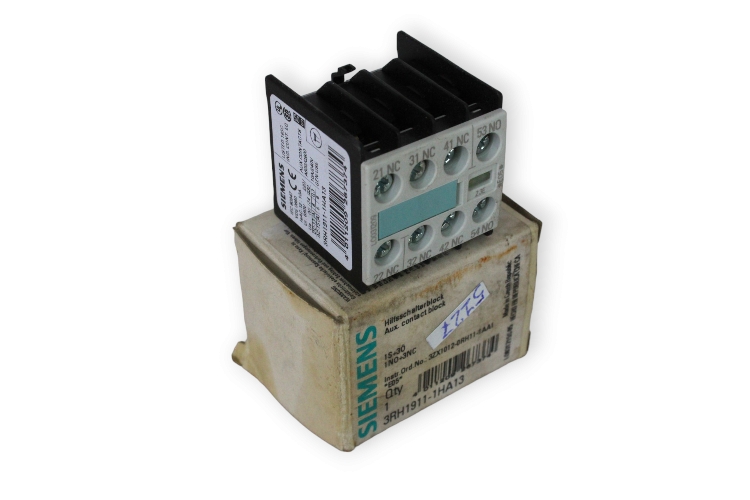

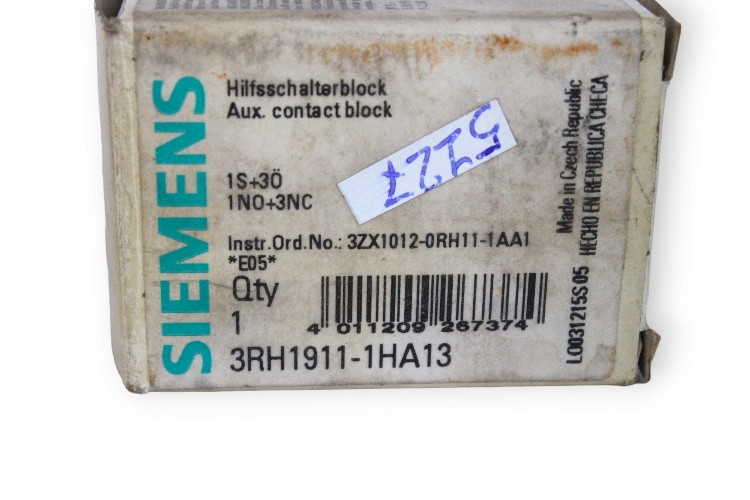

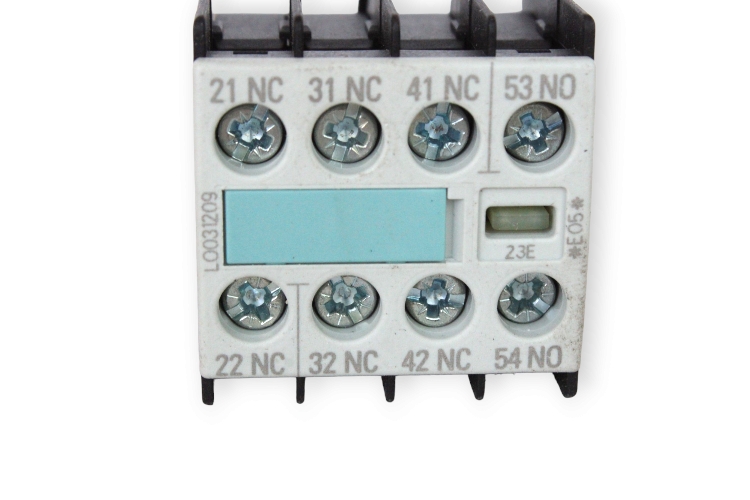

Siemens 3RH1911-1HA13 Auxiliary Switch Block
New
In stock3 unitsReady to ship
Auxiliary Switch Block The SIEMENS SIRIUS 3RH1 911-1HA13 is an auxiliary switch block with 3 NC and 1 NO instantaneous contacts, designed for contactor relays and power contactors.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 3RH1 911-1HA13 |
| Instr.Ord.No . | 3ZX1012-0RH11-1AA1 |
| SN | 4 011209 267374 |
| product brand name | SIRIUS |
| Suitability for use | Contactor relay and power contactor Protection class IP: on the front IP20 |
| Ambient temperature during operation °C | -25 ... +60 |
| Contact reliability | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| Contact reliability of the auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| Insulation voltage with degree of pollution 3 Rated value V | 690 Surge voltage resistance Rated value Kv: 6 |
| Number of NC contacts for auxiliary contacts , instantaneous contact | 3 |
| Number of NO contacts for auxiliary contacts , instantaneous contact | 1 |
| Operating current of the auxiliary contacts at AC-12 , at 24 V A 10 ? at 230 V A 10 ? maximum A | 10 |
| Mounting type | snap-on mounting |
| Width | 36.5 mm |
| Height | 37.5 mm |
| Depth | 41.5 mm |
| Standard | IEC 60947/VDE 0660 |
| Condition | New |
| SKU | 1100836 |
| Weight | 0,05 |
