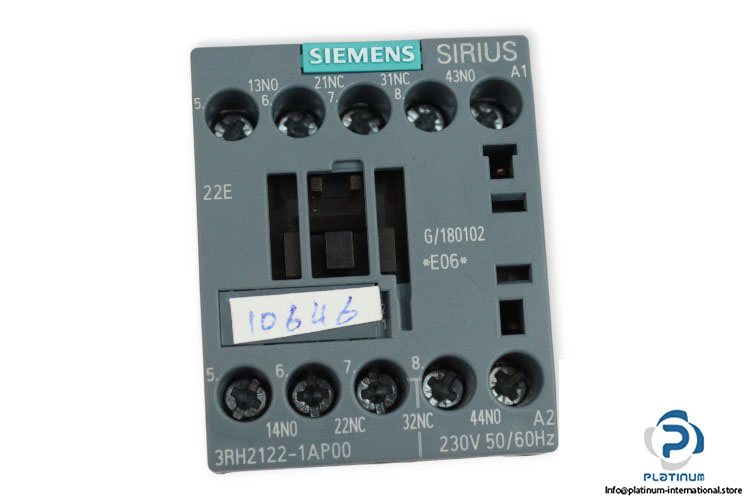

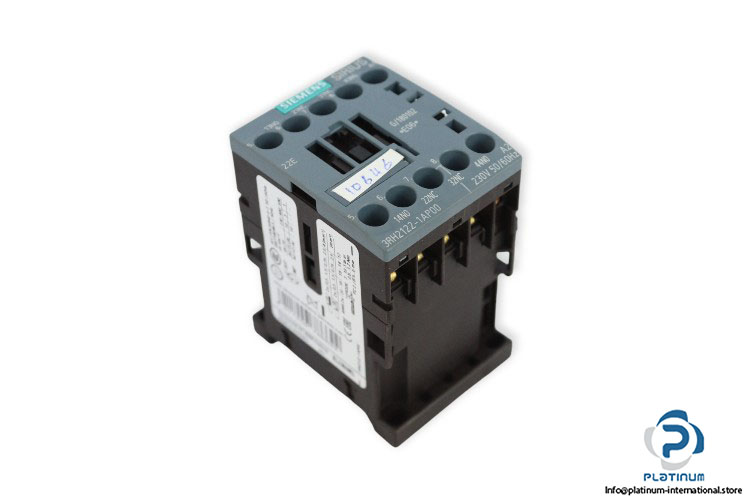

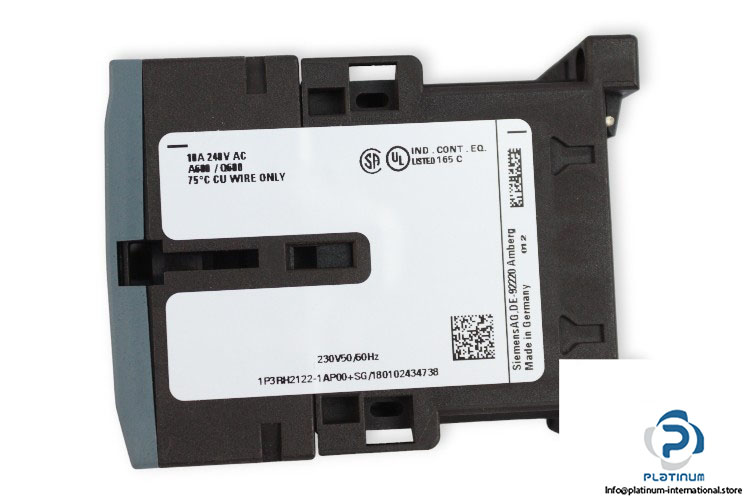

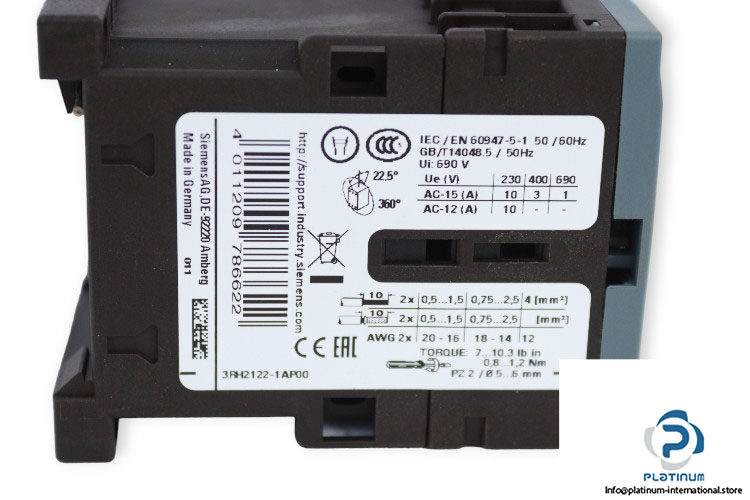

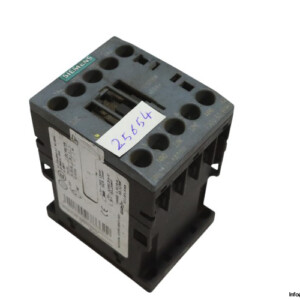

Siemens 3RH2122-1AP00 Contactor Relay

Manufacture: Siemens
Type: Contactor relay
MNR: 3RH2122-1AP00
Product brand name: SIRIUS
Product designation: 3RH2

Size: S00
Control Supply Voltage: 230 V AC
Frequency: 50/60 Hz
Surge Voltage Resistance Rated Value: 6 kV
Insulation voltage Ui: 690 V
insulation voltage with degree of pollution 3 at AC rated value: 690 V
Apparent pick-up power of magnet coil at AC: 37 VA
Rated Operating Current at AC-15: 10 A (230 V AC), 3 A (400 V AC)
Auxiliary Contacts: 2 Normally Open, 2 Normally Closed
Standard: IEC/EN 60947-5-1
Operating temperature: -25 … 60°C
Protection class: IP20
Type of electrical connection: screw-type terminals
Dimensions: 57.5 x 45 x 73 mm
