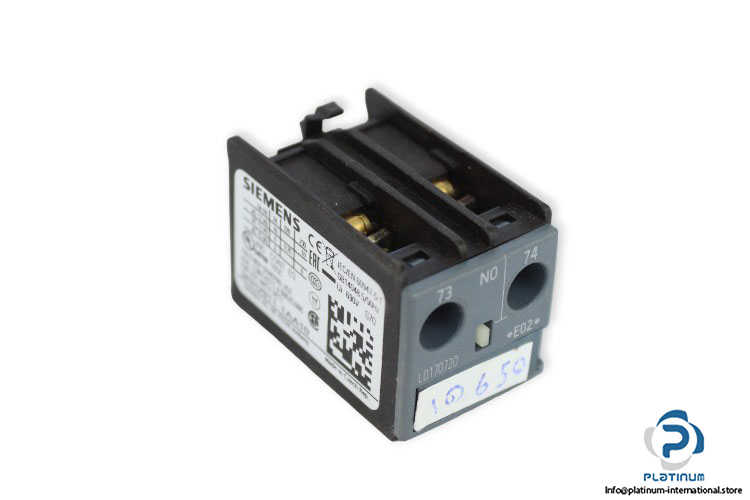

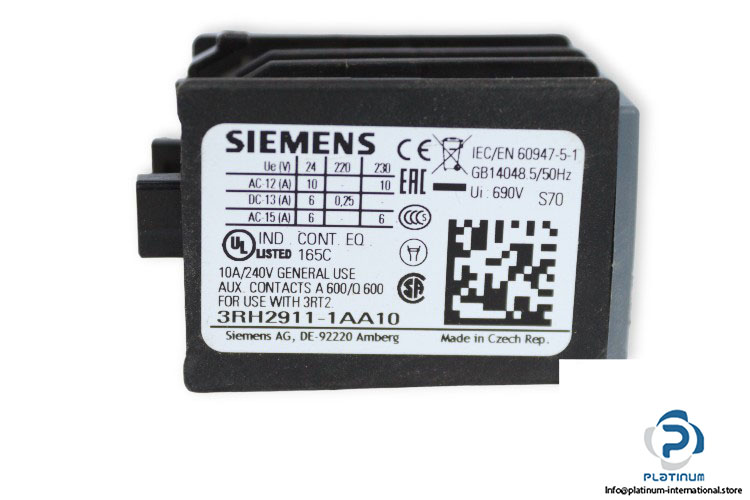

Siemens 3RH2911-1AA10 Auxiliary Switch

Manufacture: Siemens
Type: Auxiliary switch
MNR: 3RH2911-1AA10
Product brand name: SIRIUS
Product designation: 3RH29

Size: S00
Operational current (AC-12) 230 V: 10A/230V
Surge Voltage Resistance Rated Value: 6 kV
Insulation voltage Ui: 690 V
Insulation voltage with degree of pollution 3 at AC rated value: 690 V

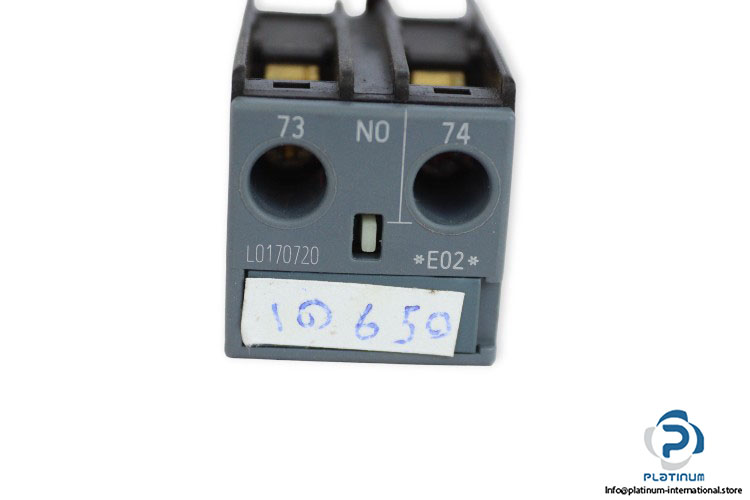

No. of NO contacts for auxiliary contacts: instantaneous contact 1
Fastening Method: Snap-On mounting
Standard: IEC/EN 60947-5-1
Operating temperature: -25 … 60°C
Protection class: IP20
Type of electrical connection: screw-type terminals
Dimensions: 27.5 x 23.6 x 38.6 mm
