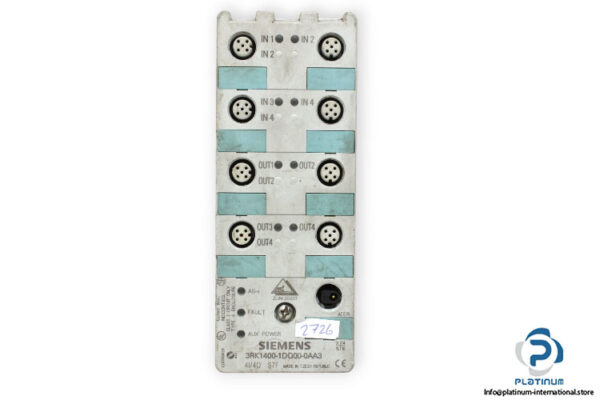

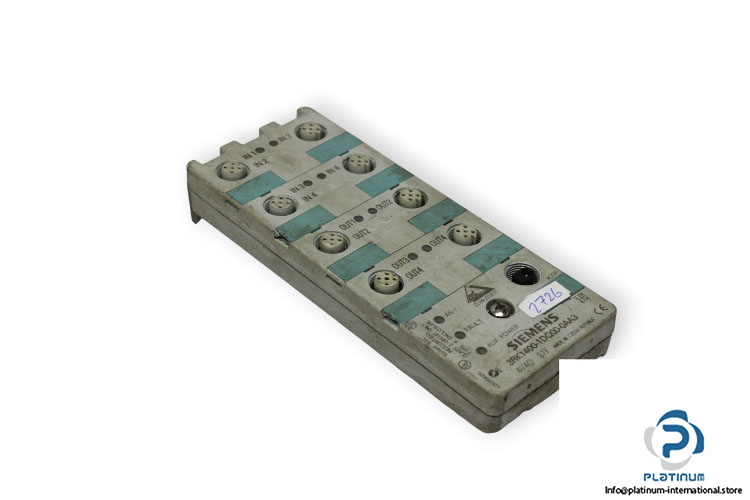

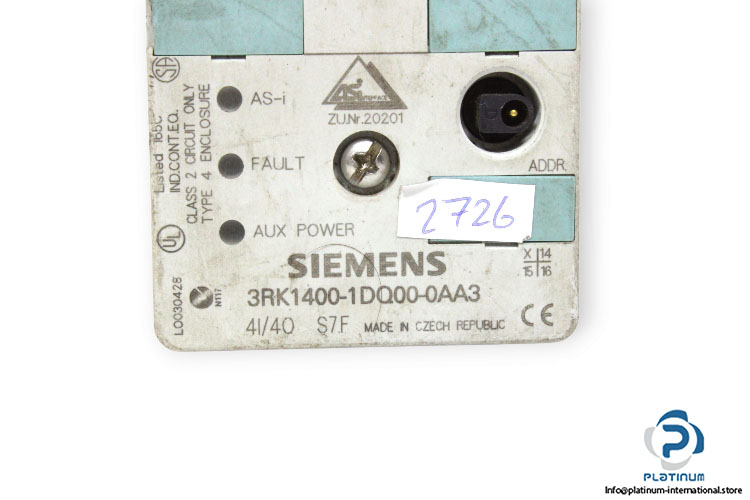

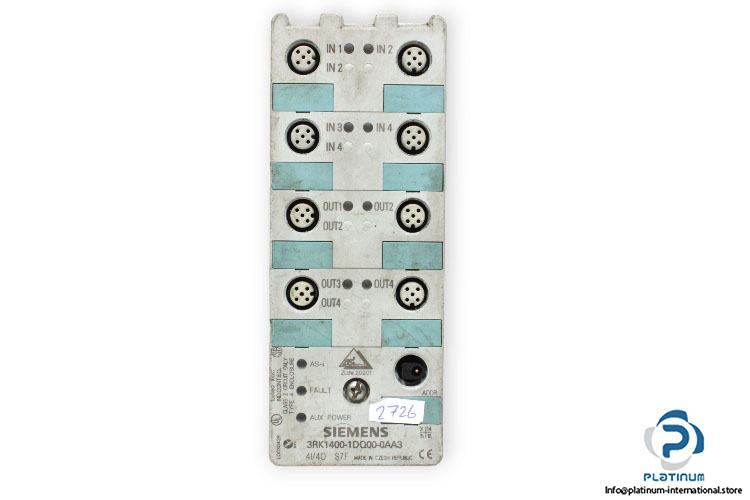

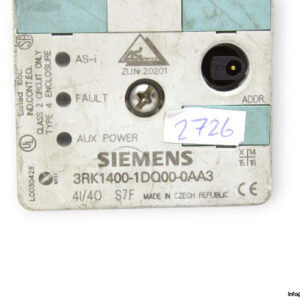

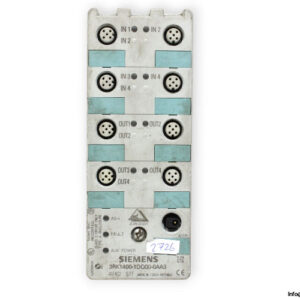

Siemens 3RK1400-1DQ00-0AA3 Compact Module

Manufacturer: Siemens
Type: Compact Module
MNR: 3RK14001DQ000AA3

Operating voltage: 26.5 … 31.6 V DC
No. of digital Inputs (DI): 4
No. of digital Output (DO): 4
Number I/O sockets: 8
Type of electrical connection of the inputs and outputs: M12 screw-type terminals
Input voltage: 20 … 30 V DC
input current at digital input:
— for signal minimum 6 Ma
— with signal maximum 1.5 mA
Type of switching output: PNP transistor
Outputs aggregate current: max 4 A
Ambient temperature during operation: -25 … +85 °C
Protection class: IP67
Dimensions: 60 x 152 x 29 mm
