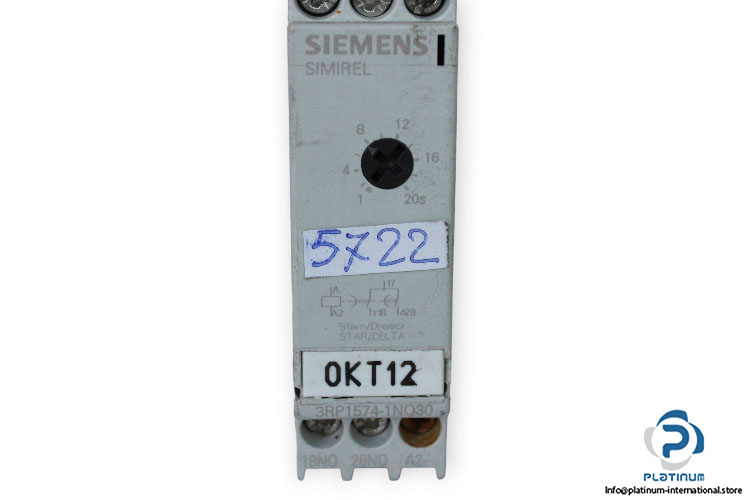

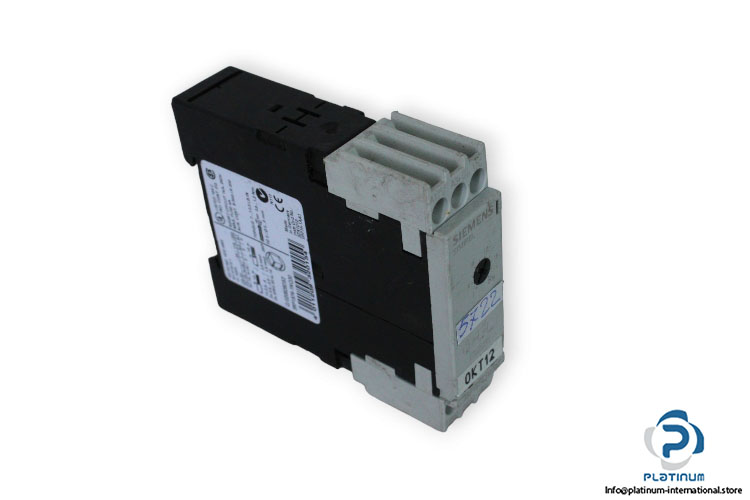

Siemens 3RP1574-1NO30 Timing Relay

Manufacturer: Siemens
Type: Timing Relay
Model: 3RP1574-1NO30

Time Range: 1…20 s

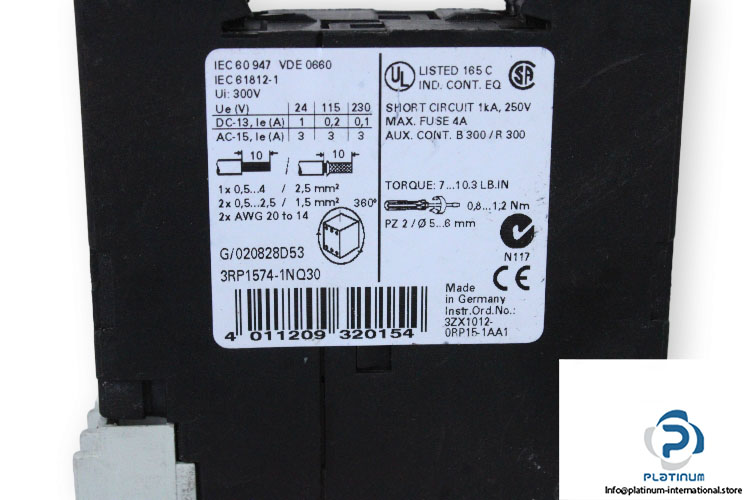

Rated Insulations Voltage: 300 V
Contact Configuration: 2 Normally Open
Contact Voltage: 24 … 230 V AC/DC,
Contact Current: 3 A1(AC), 1… 0.1 A(DC)
Torque: 0.8 … 1.2 Nm
Power Loss Max.: 2 W
Thermal Current: 5 A
Degree of Pollution: 3
Max. Fuse: 4 A
Short Circuit: 1 kA, 250 V
Fastening Method: Screw and Snap-On Mounting Onto 35 Mm DIN Rail
Operating Temperature: -25 … 60°C
Degree of protection: IP20
Dimensions: 83 X 22.5 X 91 mm
