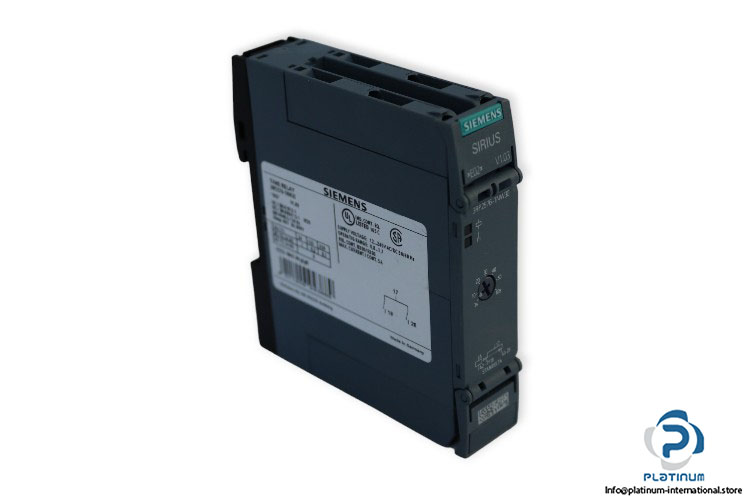

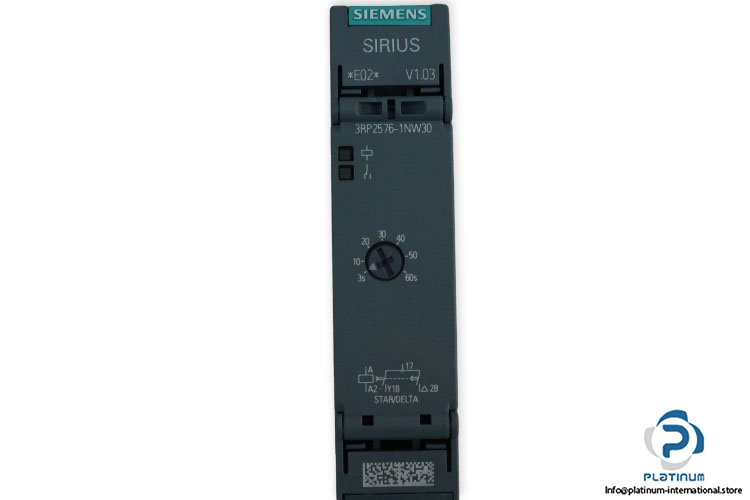

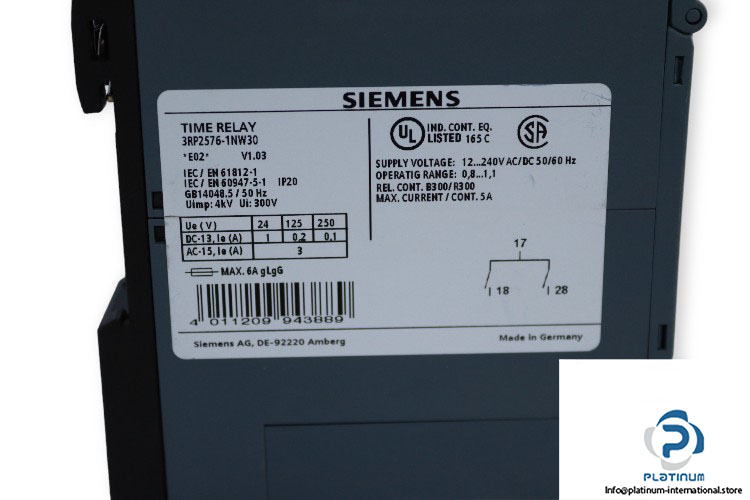

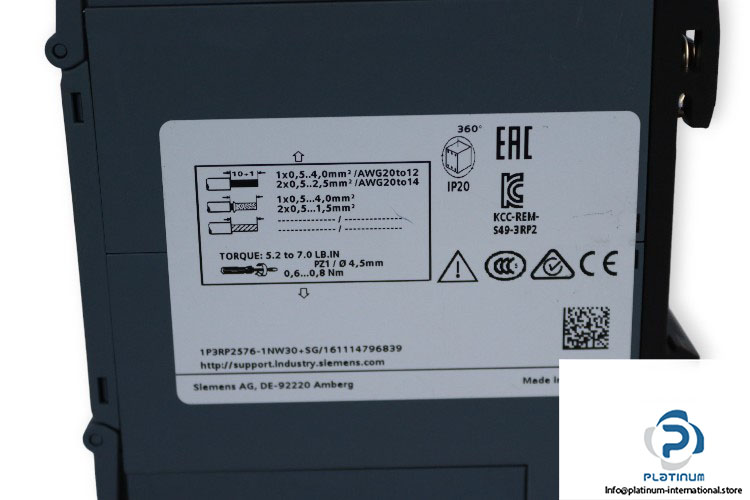

Siemens 3RP2576-1NW30 Timing Relay

Manufacturer: Siemens
Type: Timing relay
Model: 3RP2576-1NW30
product type designation: 3RP25

Supply Voltage: 12 … 240 V AC/ DC
Frequency: 50 … 60 Hz
Operating Rang: 0.8 … 1.1
Time Range: 3 … 60 s
Insulation Voltage: 300 V
Impulse Withstand Voltage: 4 kV
Power Loss: 2 W
Contact Configuration: 2 Normally Open
Contact Voltage: 24 … 250 V DC
Contact Current: 1 … 0.1 A (DC)/ 3 A (AC)
Operating Temperature: -25 … 60 °C
Degree of protection: IP20
Dimensions: 100 X 22.5 X 90 mm
