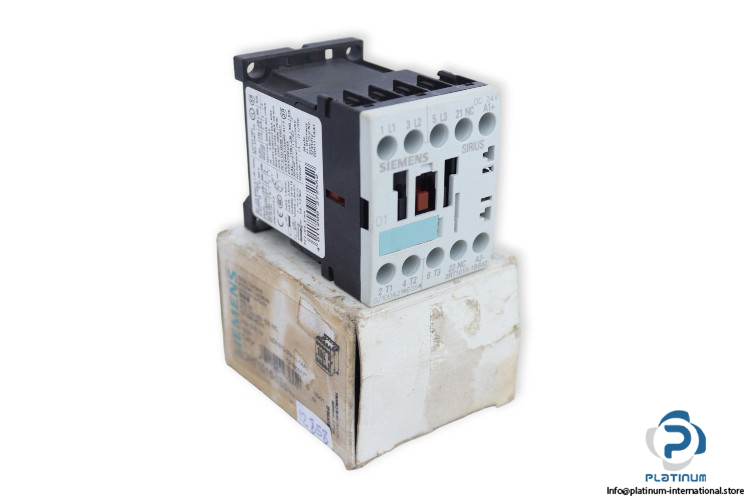

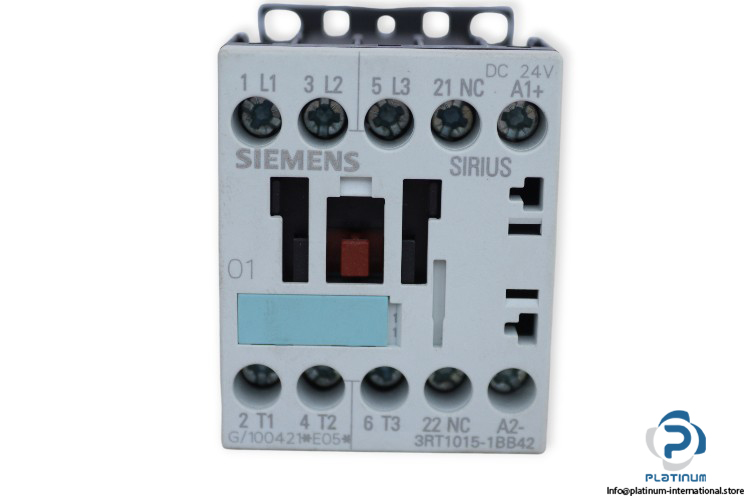

Siemens 3RT1015-1BB42 Power Contactor

Manufacturer: SIEMENS
Type: Power Contactor
Series: SIRIUS
Model: 3RT1015-1BB42

Supply Voltage: 24 V DC
Rated insulation voltage Ui: 690 V AC
Rated operational current AC-1 @ 400 V: 18 A
Rated operational current AC-3 @ 400 V: 7 A
Rated outputs of Single-phase motors at 230V: 3 … 4  HP
Rated outputs of three-phase motors at 230V: 2 HP
Number of poles for main current circuit: 3 pole
No. of Contacts: 1 NC
Enclosure Rating: IP20
Dimensions: 57.5 x 45 x 72 mm
Ambient temperature: -20 … 60°C
