Siemens 3RT1017-1AP02 Power Contactor
Used
In stock2 unitsReady to ship
POWER CONTACTOR
Siemens Sirius 3RT1 017-1AP02 power contactor with 230 V AC coil, S00 size, and 5.5 kW (400 V AC) motor rating. Compact design, IP20 protection, and IEC-compliant performance for industrial applications.230vACcoilCompactCompliantContactorControlCurrentDeviceHighIECIndustrialIP20motorPowerProtectionSiemensSiriusSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

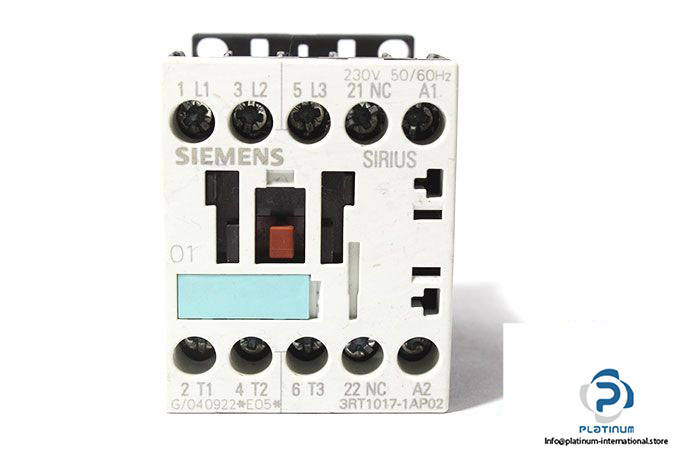

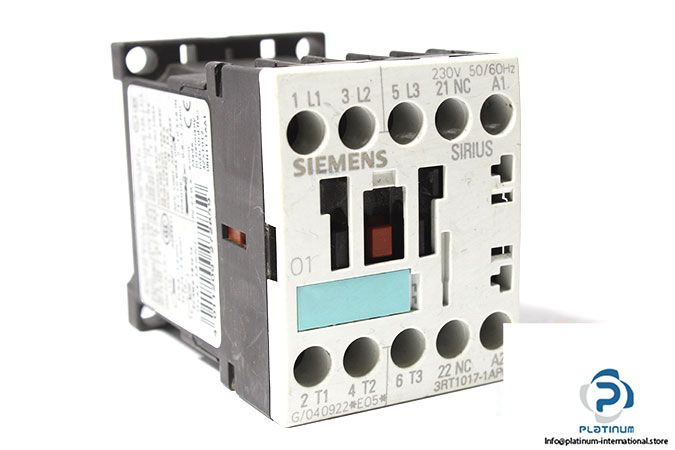

SIEMENS SIRIUS 3RT1 017-1AP02 POWER CONTACTOR
The Siemens Sirius 3RT1 017-1AP02 is a compact and reliable power contactor designed for switching and controlling electric motors and other high-current loads. Built to meet IEC/EN 60947-4-1 standards, it offers dependable performance, easy installation, and a long service life, making it ideal for a wide range of industrial applications.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1 017-1AP02
Successor Type: 3RT2017-1AP02
Size: S00
| Control Supply Voltage | 230 V AC |
| Control Supply Voltage Frequency | 50 / 60 Hz |
| Rated Operating Power | 5.5 kW (400 V AC) |
| Rated Operating Current | 6 A (230 V AC), 3 A (400 V AC) |
| Auxiliary Contacts | 1 Normally Closed (1NC) |
| Standard | IEC /EN 60947-4-1 |
| Protection Class IP | IP20 |
| Operation Ambient Temperature | -25 / 60 °C |
| Dimensions (W x D x H) | 45 x 72 x 57.5 mm |
