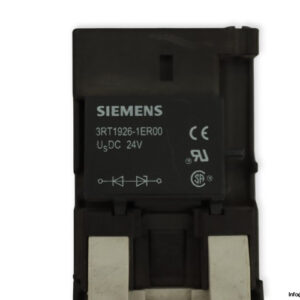

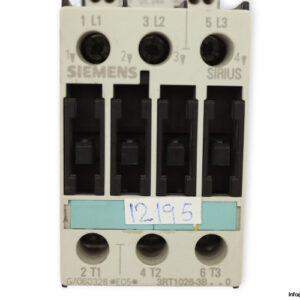

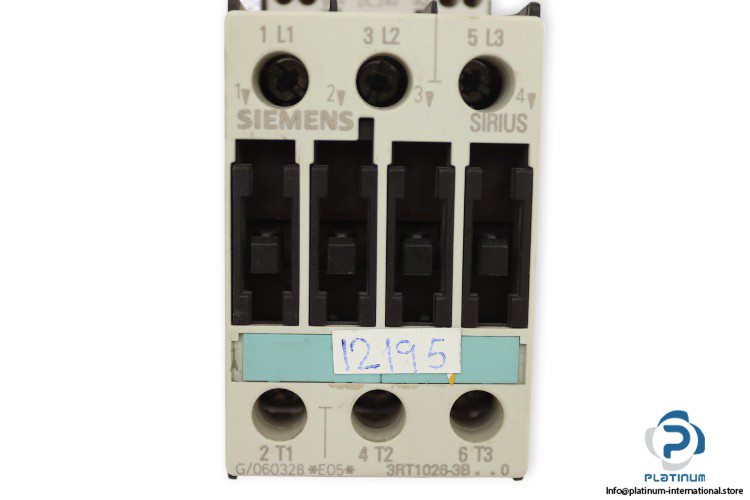

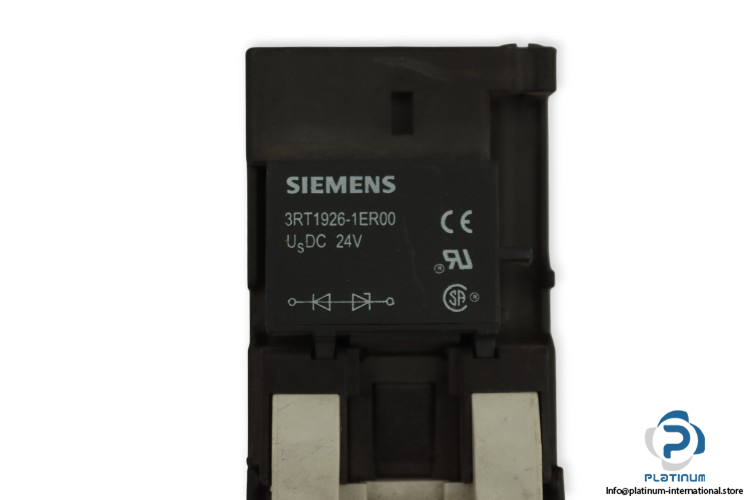

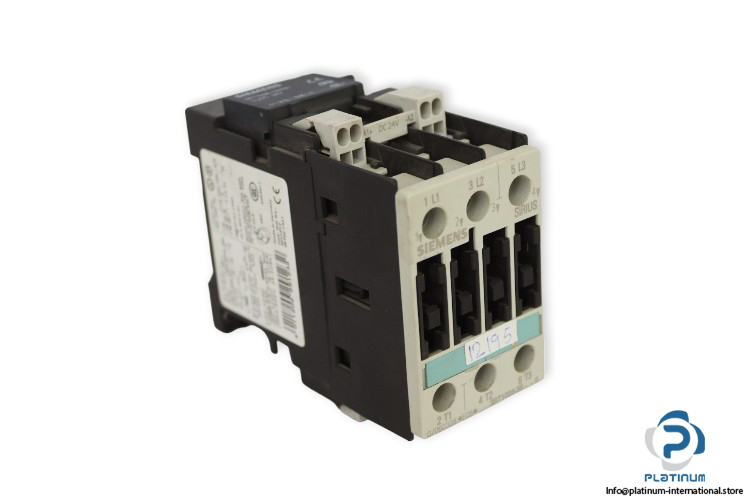

Siemens 3RT1026-3BB40 3P Contactor

Manufacture: Siemens
Type: Contactor
MNR: 3RT10263BB40

Size of the contactor: S0
Insulation voltage Ui: 690 V
Rated current AC-1: 40 A

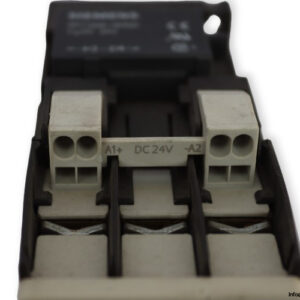

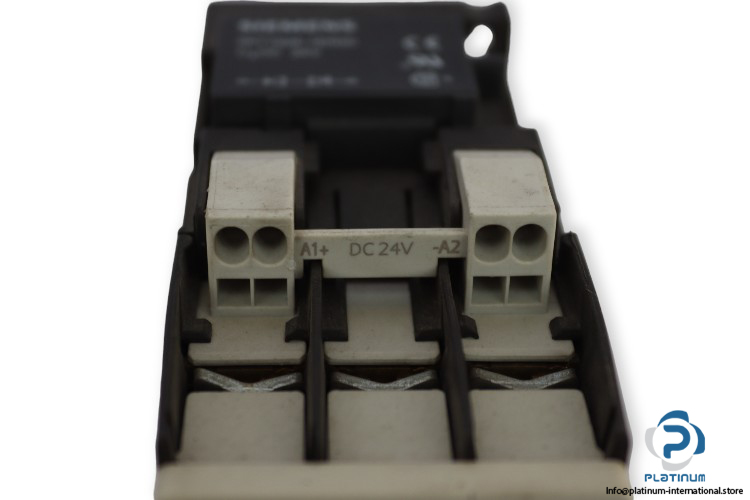

Control supply voltage: 24 V DC
Operating current:
• at AC-3 / at 400 V / rated value: 25 A
Service power:
• at AC-3 / at 400 V / rated value: 11 kW
Torque: 2 … 2.5 Nm
General use: 600 V AC,35 A

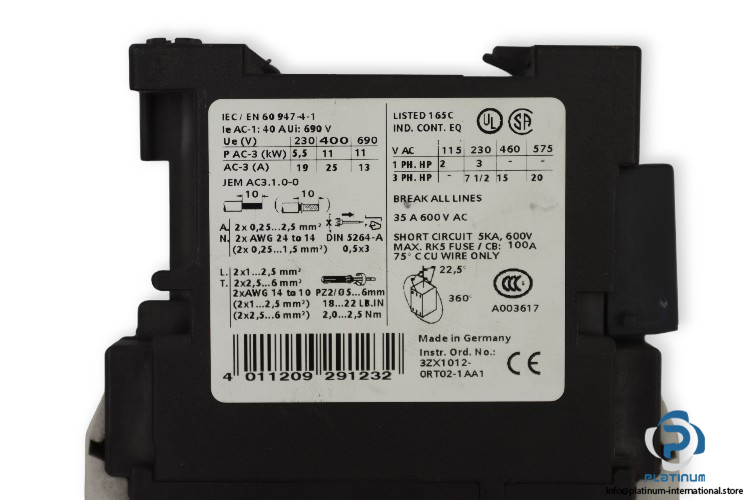

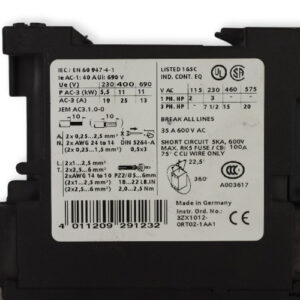

Standard: IEC/EN 60947-4-1
Design of the electrical connection: screw-type terminals
Type of fixing/fixation: screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Number of poles: 3
Dimensions: 96 x 86 x 45 mm
