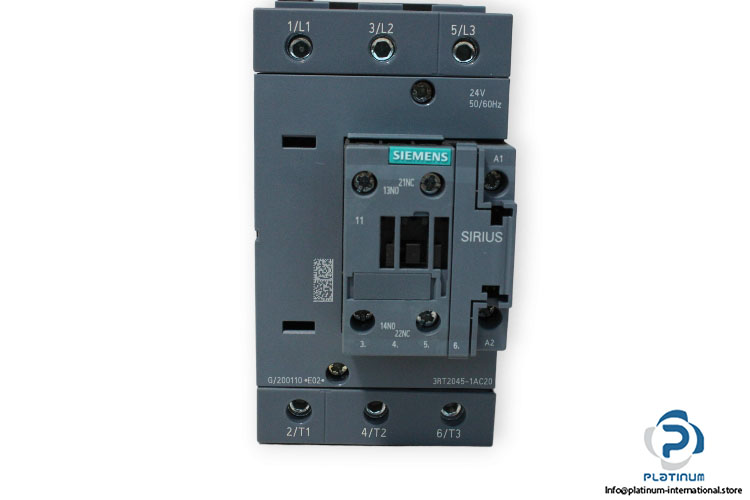

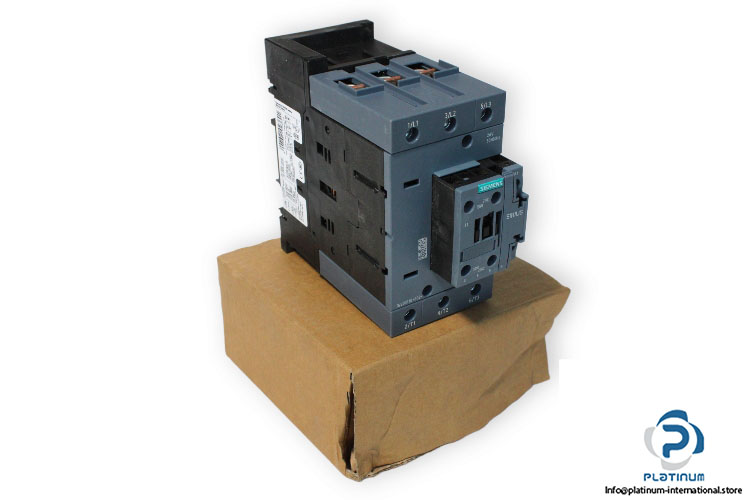

Siemens 3RT2045-1AC20 Power Contactor

Manufacturer: SIEMENS
Type: Power Contactor
Model: 3RT2045-1AC20

product designation: Power contactor
product type designation: 3RT2
size of contactor: S3
power loss [W] for rated value of the current
at AC in hot operating state 15.9 W
at AC in hot operating state per pole 5.3 W
without load current share typical 25 W
type of voltage of the control supply voltage: AC
control supply voltage at AC:
 at 50 Hz rated value 24 V
 at 60 Hz rated value 24 V
Number Of NC Contacts For Auxiliary Contacts Instantaneous
Contact: 1
Number Of NO Contacts For Auxiliary Contacts Instantaneous
Contact: 1
Operational Current At AC-12 Maximum: 10 A
height: 140 mm
Width: 70 mm
Depth: 152 mm
Number Of Poles For Main Current Circuit: 3
Ambient Temperature, During Operation: -25 … +60 °C
