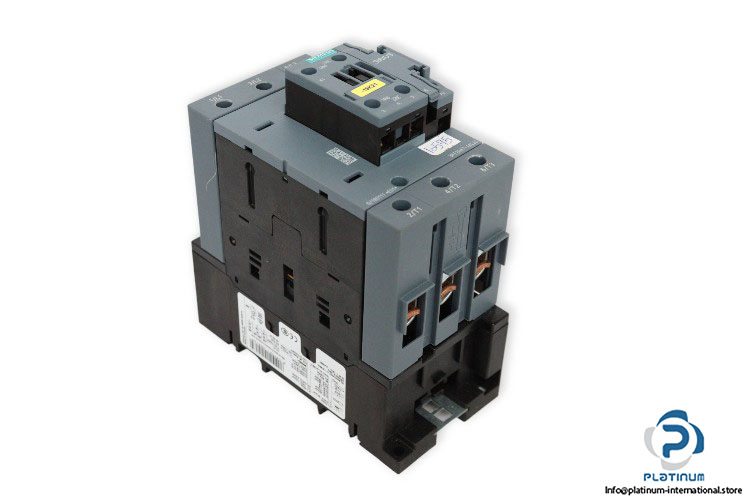

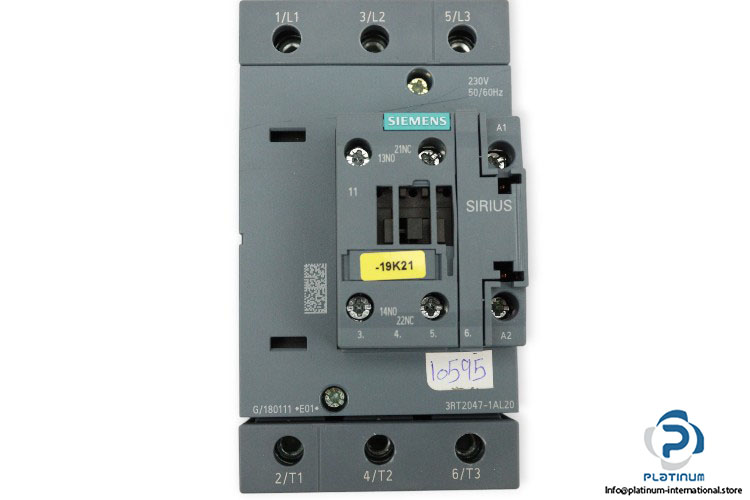

Siemens 3RT2047-1AL20 Power Contactor

Manufacture: Siemens
Type: Power Contactor
MNR: 3RT2047-1AL20
Product Brand Name: SIRIUS

Product Type Designation: 3RT2
Size of Contactor: S3
Insulation Voltage Ui: 1000 V
Power Loss at AC in hot operating state: 23.7 W (Per Pole: 7.9 W)
Rated impulse with stand voltage Uimp: 8 kV
Power:
● at 230 V 30 kW
● at 380/400 V 55 kW
● at 690 V 90 kW
Current: AC-3
● at 230 V 110 A
● at 380/400 V 110 A
● at 690 V 95 A
Current: AC-15
● at 230 V 6 A
● at 380/400 V 3 A
● at 690 V  A
Protection Class: IP20
Auxiliary Contacts: 1 NO + 1 NC
Type Of Electrical Connection: for main current circuit screw-type terminals
Ambient Operation Temperature: -25 … 60°C
Dimensions: 152 x 140 x 70 mm
