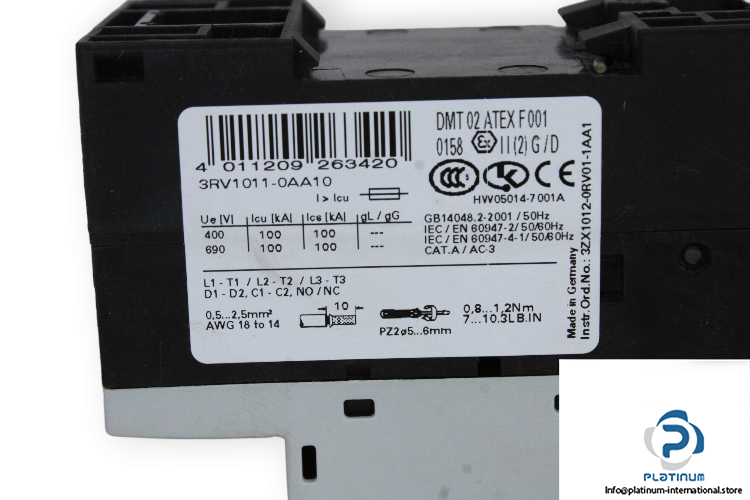

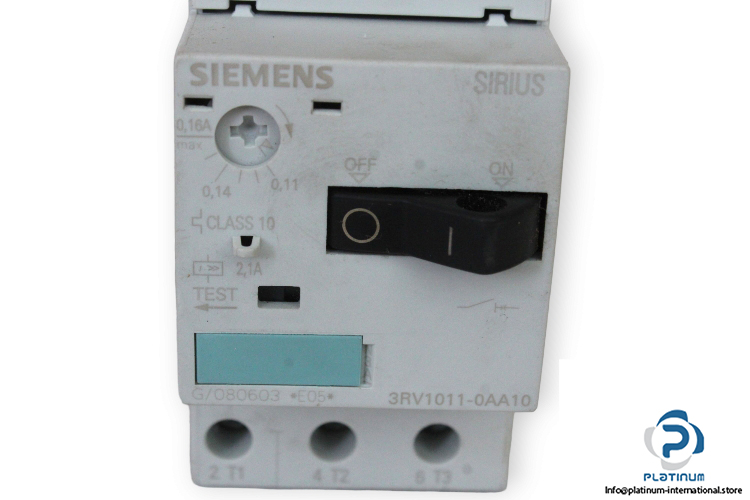

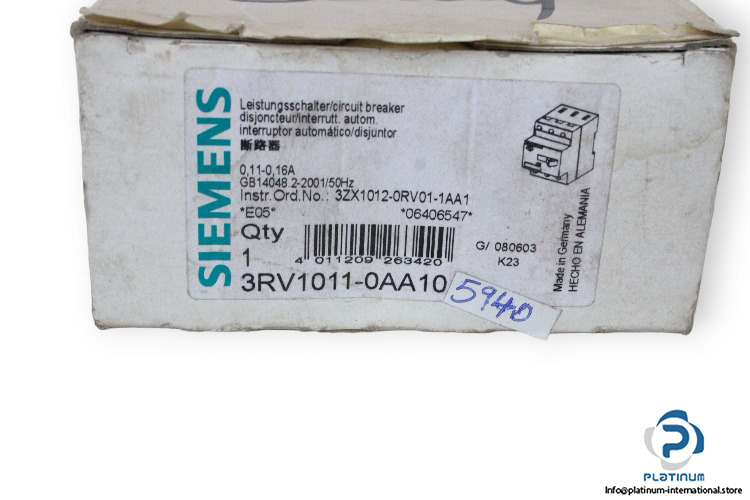

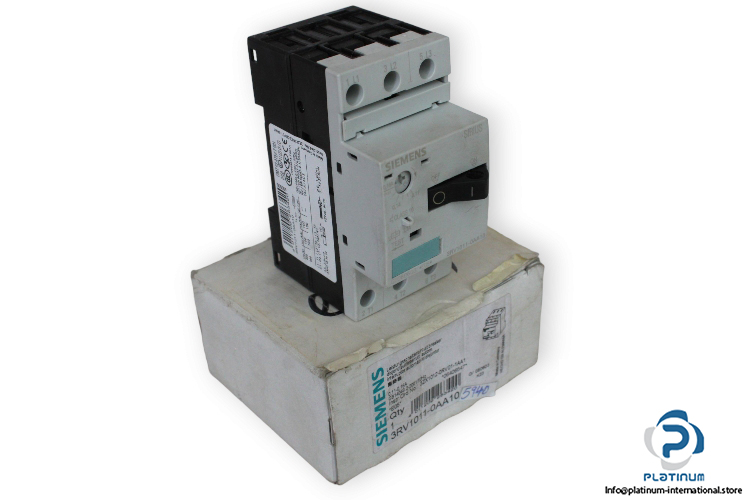

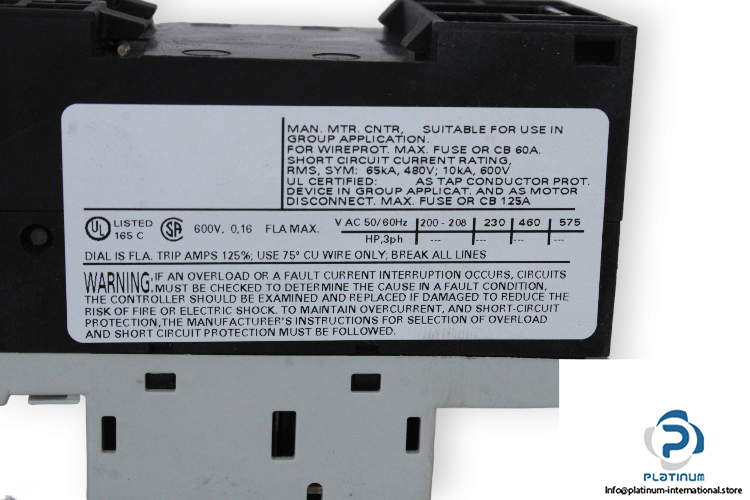

Siemens 3RV1011-0AA10 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10110AA10
Brand: SIRIUS

Size: S00
Design of the product: for motor protection
Operating voltage: 690 V AC/DC
Service power: 0.04 Kw
Adjustable current response range: 0.11 … 0.16 A
Response value current of instantaneous short-circuit trip unit: 2.1 A
Continuous Current Rated Value: 0.16 A
No. of poles: 3
Trip class: CLASS 10
Rated breaking capacity@400V (Icu): 100 Ka
Rated Service breaking capacity@400 V (Ics): 100 kA
Fastening method: screw and snap-on mounting onto 35 mm DIN rail
Electrical connection: screw terminals
Protection degree: IP20
Operating temperature: -20 … 60°C
Dimensions: 90 x 45 x 81 mm
