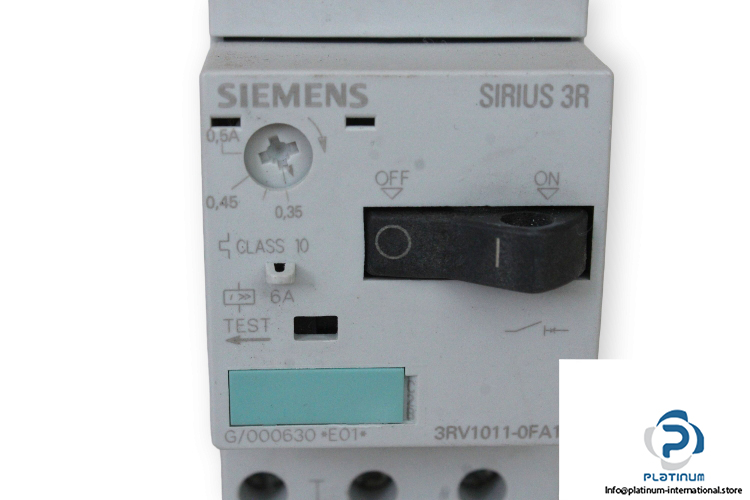

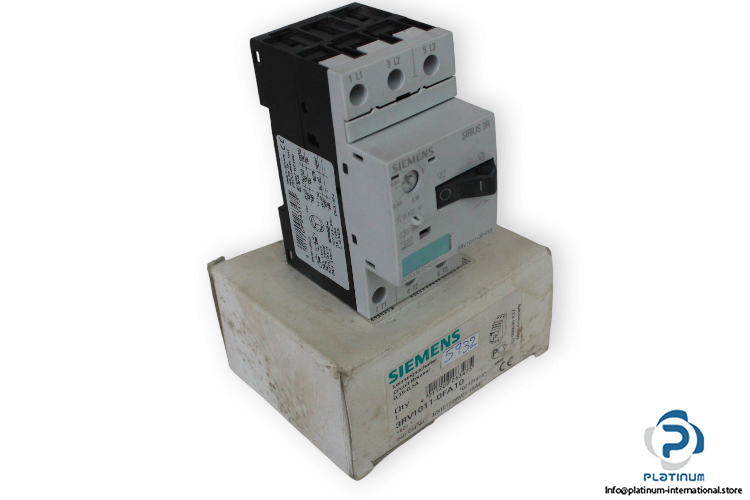

Siemens 3RV1011-0FA10 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10110FA10
Brand: SIRIUS 3R

Size: S00
Design of the product: for motor protection
Operating voltage: 20 … 690 V AC
Power loss: 5.5 kW
Frequency: 50 / 60 Hz
Adjustable current response range: 0.35 … 0.5 A
Response value current of instantaneous short-circuit trip unit: 6 A
Continuous Current Rated Value: 0.5 A
No. of poles: 3
Trip class: CLASS 10
Rated breaking capacity@400V (Icu): 50 Ka
Rated Service breaking capacity@400 V (Ics): 25 kA
Fastening method: screw and snap-on mounting onto 35 mm DIN rail
Electrical connection: screw terminals
Protection degree: IP20
Operating temperature: -20 … 60°C
Dimensions: 90 x 45 x 75 mm
