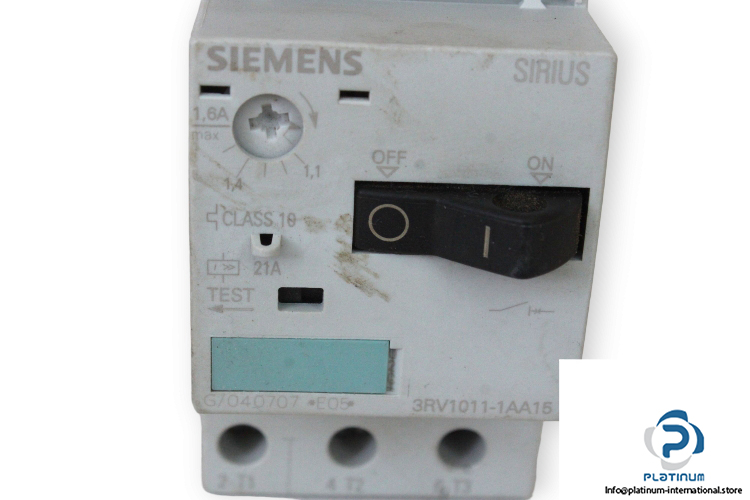

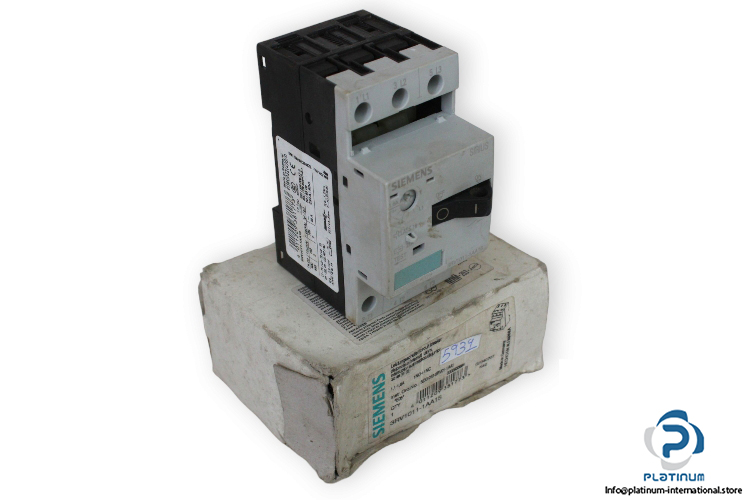

Siemens 3RV1011-1AA15 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV1011-1AA15

Size: S00
Design of the product: for motor protection
Operating voltage: 20 … 690 V AC
power loss: 7.25 kW
Frequency: 50 / 60 Hz
Adjustable current response range: 1.1 … 1.6 A
No. of poles: 3
Fastening method: screw and snap on mounting onto 35 mm DIN rail
Electrical connection: screw terminals
Protection degree: IP20
Operating temperature: -20 … 60°C
Dimensions: 90 x 45 x 75 mm
