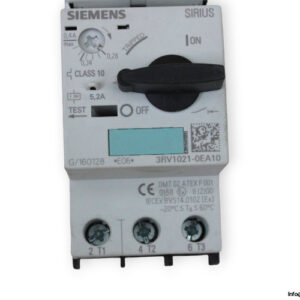

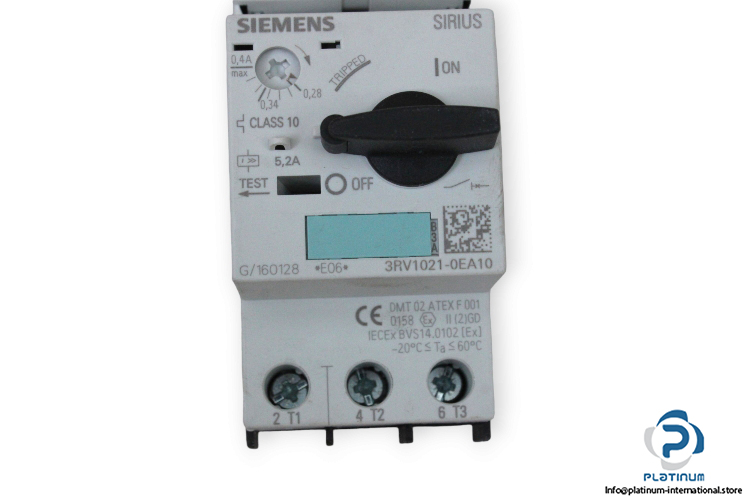

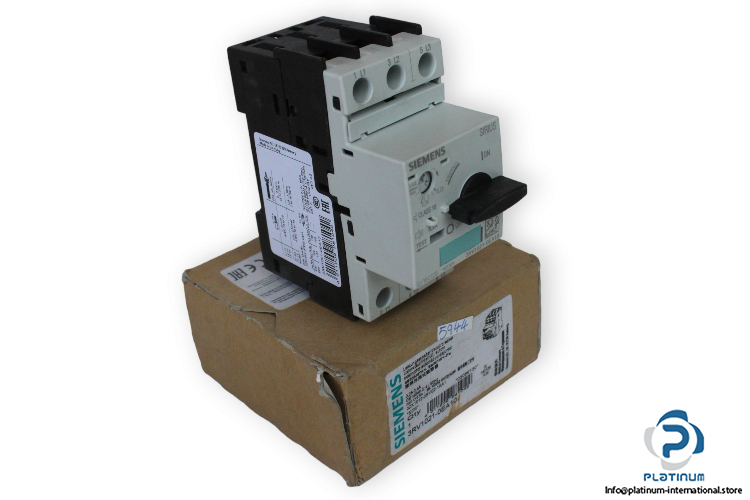

Siemens 3RV1021-0EA10 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10210EA10
Family: SIRIUS

Size: S0
Used: For Motor Protection
Operating voltage: 690 V
Operating power: 0.09 kW
Adjustable current response range: 0.28 … 0.40 A
Response value current of instantaneous short-circuit trip unit: 5.2 A
Breaking capacity maximum short-circuit current (Icu) at AC at 400 V rated value: 100 kA
Service capacity maximum short-circuit current (Ics) at AC at 400 V rated value: 100 kA
No. of poles: 3
Type of mounting: screw and snap-on mounting onto 35 mm DIN rail
Electrical connection: screw-type terminals
Standard: IEC/EN 947-2, IEC/EN 947-4-1
Protection degree: IP20
Operating temperature: -20 … 60°C
Dimensions: 97 x 45 x 96 mm
