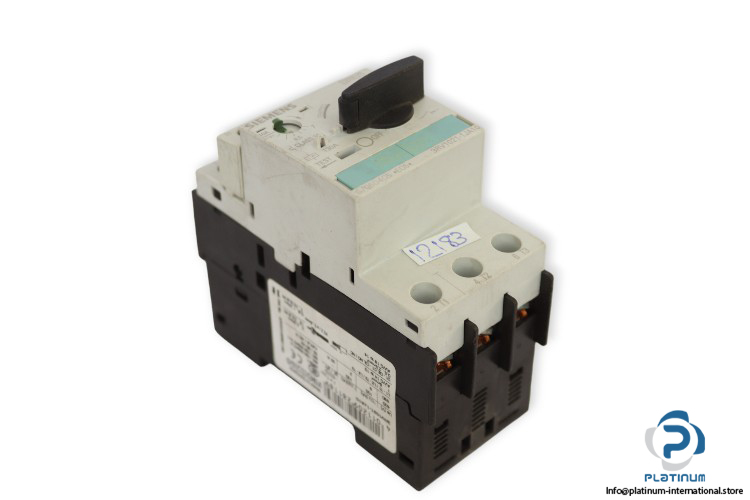

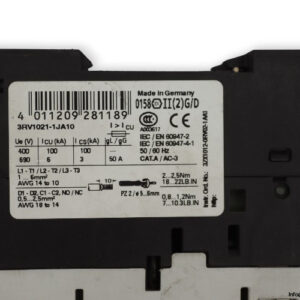

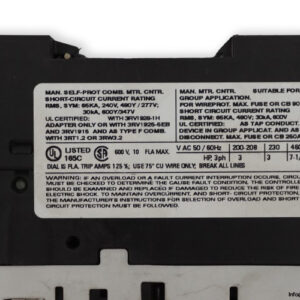

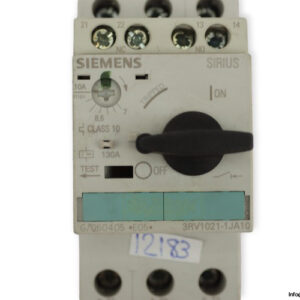

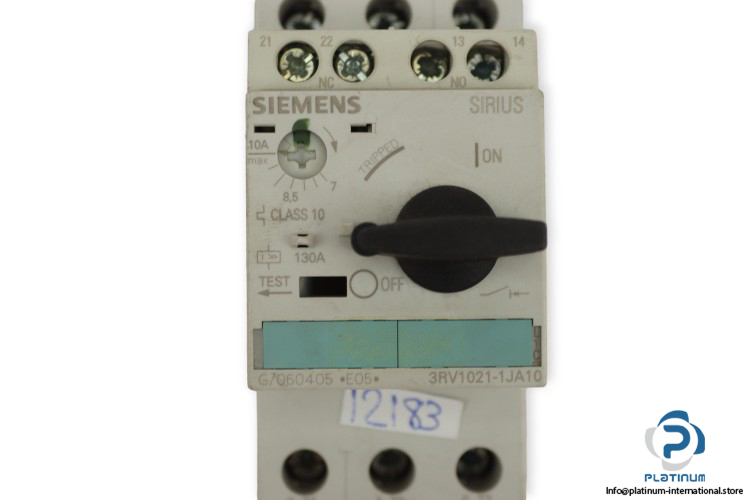

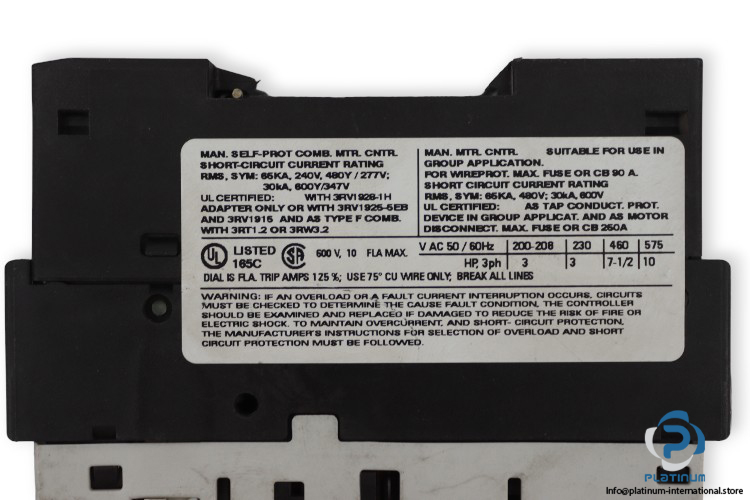

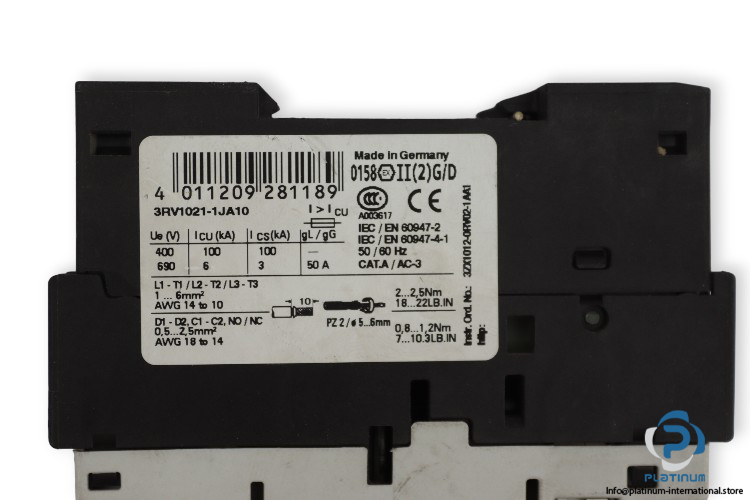

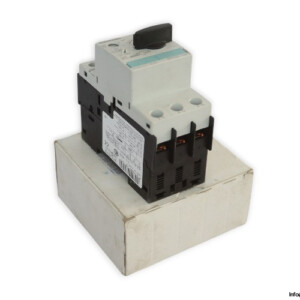

Siemens 3RV1021-1JA10 Circuit Breaker
Product Brand Name: SIRIUS
Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV10211JA10
Product Brand Name: SIRIUS
Size: S0
Used: For Motor Protection
Operating Voltage rated value: 690 V
Frequency: 50/60 Hz
Service power at AC-3 at 400 V rated value: 4 kW
Active power loss: 7 W
Adjustable current response range: 7 … 10 A
Operational current at AC-3 at 400 V rated value: 10 A
Response value current of instantaneous short-circuit trip unit: 130 A
No. of poles: 3
Main contact: 1 NO, 1NC
Trip Class: CLASS 10
Tightening Torque: 2 … 2.5 N·m
Mounting type: screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Type of Electrical Connection: for main current circuit screw-type terminals
Rated breaking capacity@400V (Icu): 100 kA
Rated Service breaking capacity@400 V (Ics): 100 kA
Protection degree: IP20
Standard: IEC/EN 60947-2,IEC/EN 60947-4-1
Operating temperature: -20 … 60°C
Dimensions: 96 x 45 x 97 mm
