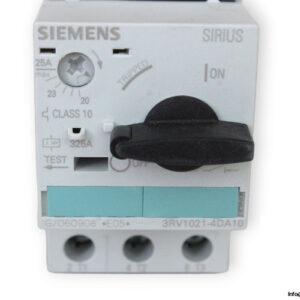

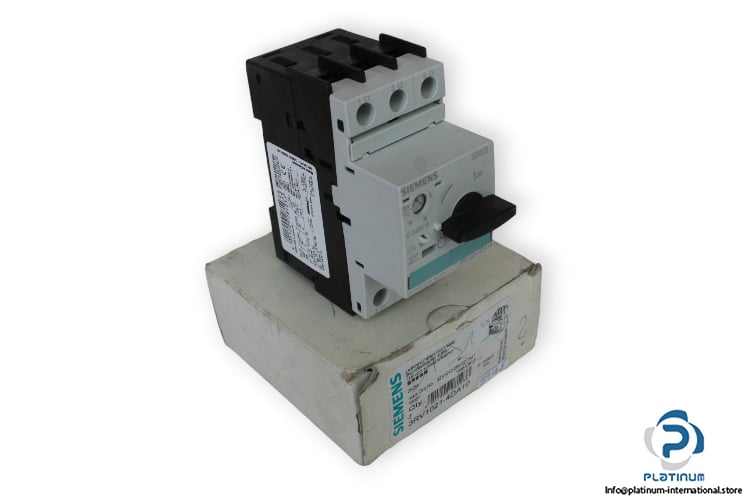

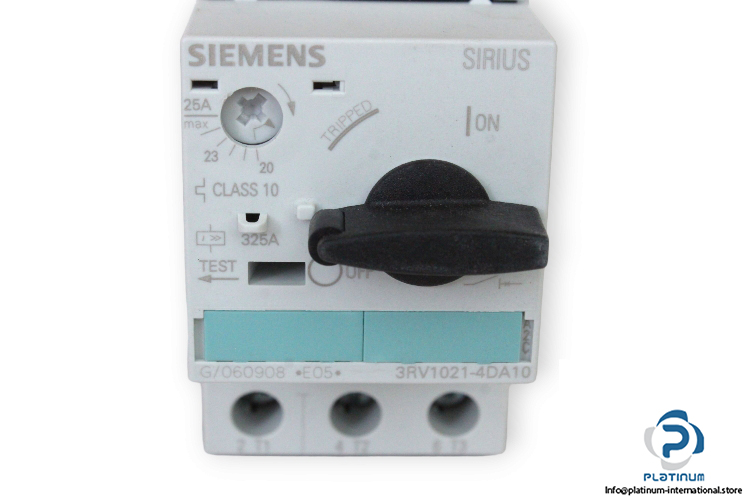

Siemens 3RV1021-4DA10 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10214DA10
Family: SIRIUS

Size: S0
Used: For Motor Protection
Operating voltage: 690 V AC/DC
Operating power: 11 kW
Adjustable current response range: 20 … 25 A
Response value current of instantaneous short-circuit trip unit: 325 A
Breaking capacity maximum short-circuit current (Icu) at AC at 400 V rated value: 50 kA
Service capacity maximum short-circuit current (Ics) at AC at 400 V rated value: 25 kA
No. of poles: 3
Type of mounting: screw and snap-on mounting onto 35 mm DIN rail
Electrical connection: screw-type terminals
Standard: IEC/EN 947-2, IEC/EN 947-4-1
Protection degree: IP20
Operating temperature: -20 … 70°C
Dimensions: 96 x 45 x 97 mm
