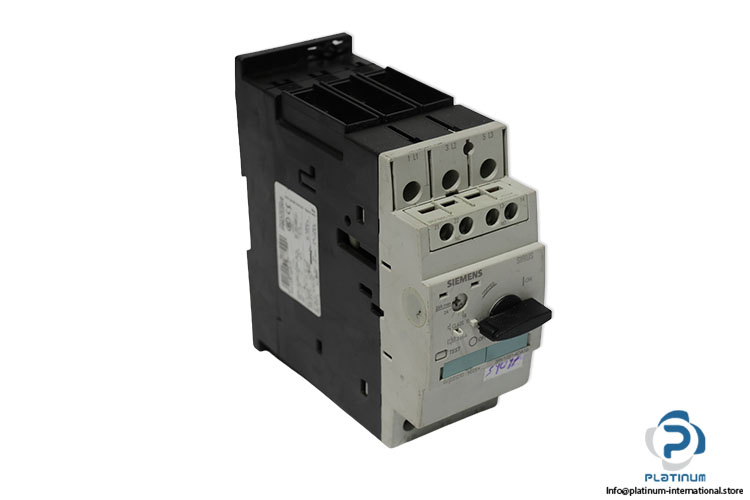

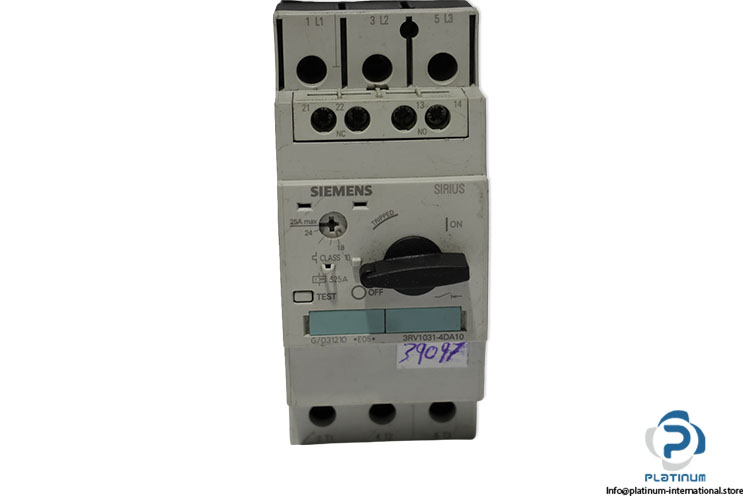

Siemens 3RV1031-4DA10 Circuit Breaker
New
In stock1 unitReady to ship
Circuit Breaker Siemens SIRIUS circuit breaker for motor protection with 20 A operating current, 690 V operating voltage, CLASS 10 thermomagnetic protection, and 3-pole design for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Product brand name | SIRIUS |
| Design of the product | for motor protection |
| Size | S2 |
| Operating voltage | 690V |
| Operating current | 20A |
| Operating power | 7.5 kW |
| Operating frequency | 15 1/h |
| Number of CO contacts | 0 |
| Power loss | 12 W |
| Trip class | CLASS 10 |
| Breaking Capacity (Icu) | at 400 V, 50kA |
| Surge voltage resistance rated value | 6 000 V |
| Number of poles | 3 |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail |
| Design of the overcurrent release | thermomagnetic |
| Height | 140 mm |
| Width | 55 mm |
| Depth | 149 mm |
| Ambient temperature | - 20 ... +60 °C |
| Protection Degree | IP20 |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093672 |
| Weight | 1 |
