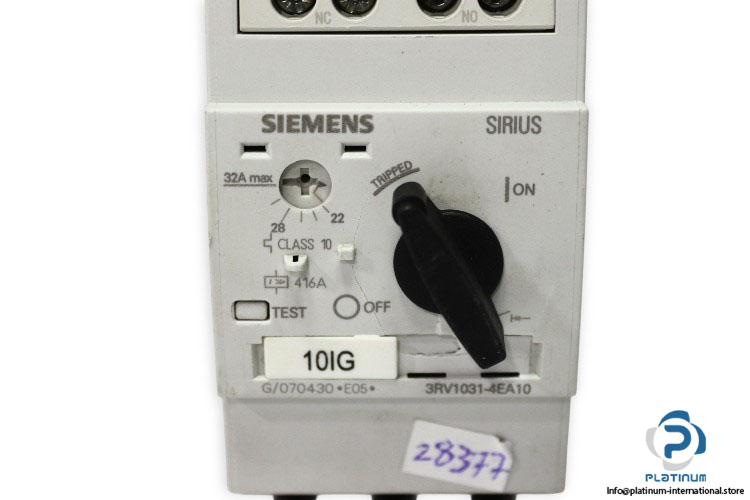

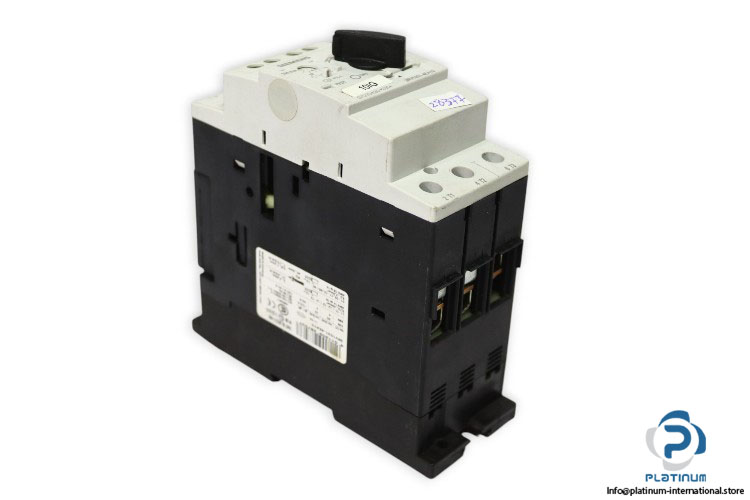

Siemens 3RV1031-4EA10 Circuit Breaker
Used
In stock1 unitReady to ship
CIRCUIT BREAKER
Siemens 3RV1031-4EA10 is a Sirius motor protection circuit breaker with adjustable current range (22“32 A), high breaking capacity, and thermomagnetic trip for reliable industrial protection.32A3RV3RV1031-4EA10AdjustableBreakerBreakingCapacityCircuitControlCurrentHighIndustrialmotorProtectionS2SiemensSiriusSizeThermomagnetic
New
Available on request
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

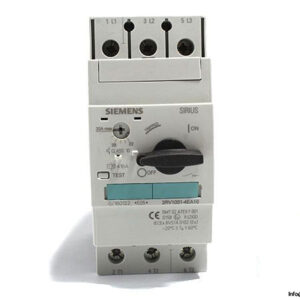

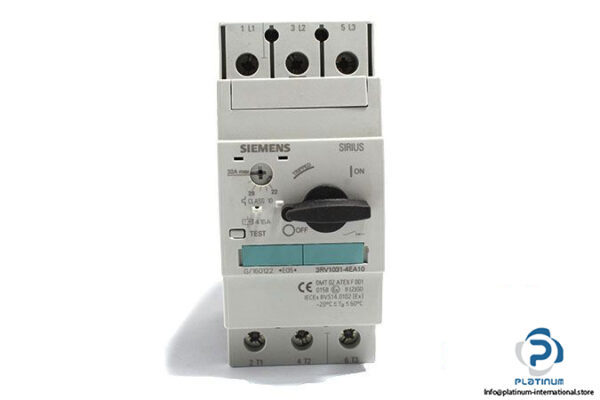

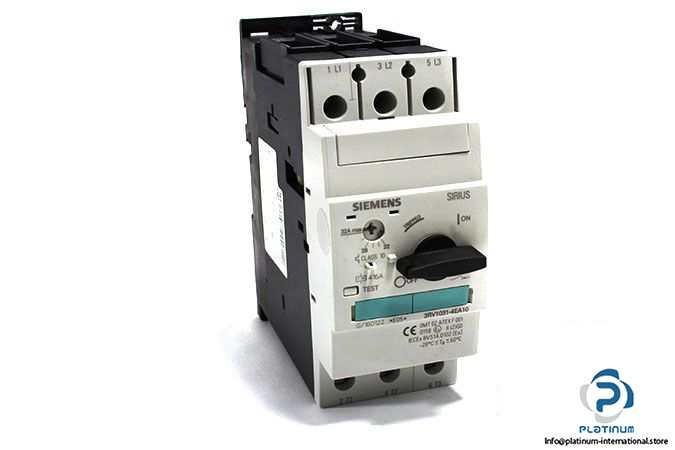

SIEMENS 3RV1031-4EA10 CIRCUIT BREAKER
The Siemens 3RV1031-4EA10 is a high-performance motor protection circuit breaker from the Sirius series, engineered for reliable protection in industrial automation environments. With a compact S2 frame and thermomagnetic trip design, this unit ensures secure motor operation and quick response in fault conditions. Built to handle high breaking capacities and extreme operating conditions, it is an ideal choice for motor control panels and distribution systems.
Manufacturer: Siemens
Type: Circuit Breaker
Model: 3RV1031-4EA10

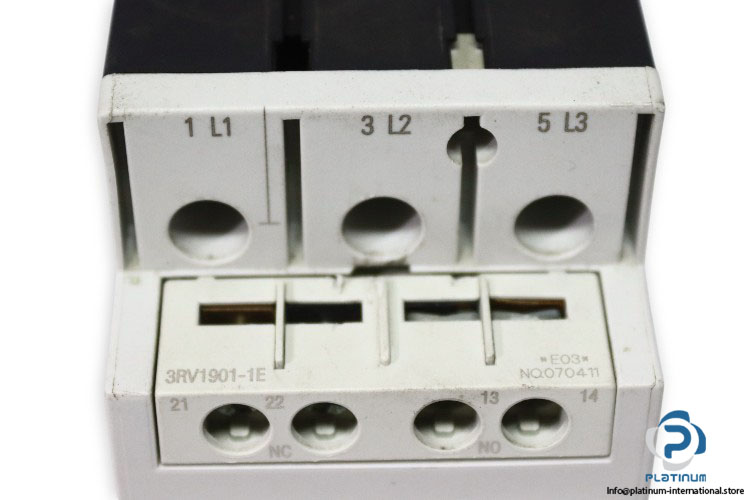

MNR: 3RV1901-1E
Family: Sirius
Field of Application: Motor Protection

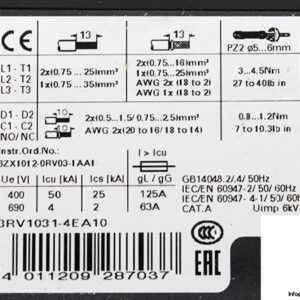

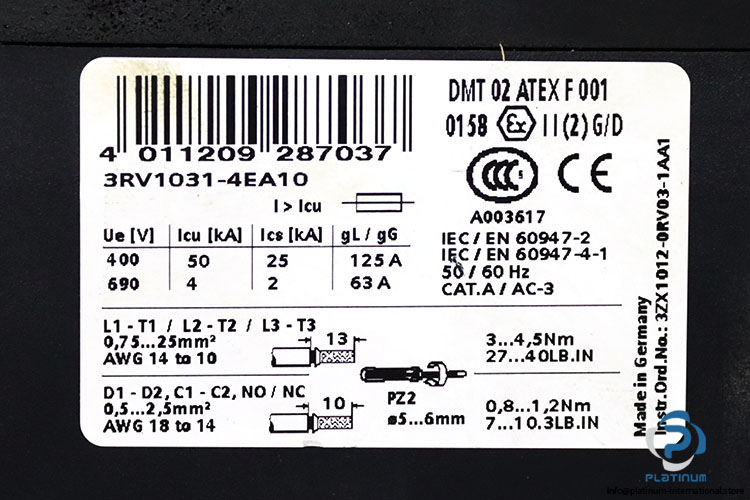

Breaking Capacity (Icu):
- 100 kA at 240 V AC
- 50 kA at 400 V AC
- 4 kA at 690 V AC
| Size | S2 |
| Number of Poles | 3 |
| Rated Current | 32 A |
| Range Adjustable Current | 22 / 32 A |
| Rated Operating Voltage | 690 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Operating Power | 15 kW |
| Short-Circuit Release | 416 A |
| Service Frequency | 50/60 Hz |
| Terminal Type | Screw Terminals |
| Design Release | Thermomagnetic |
| Dimensions (W x D x H) | 55 x 149 x 140 mm |
| Protection Class | IP20 |
| Trip Class | Class 10 |
| Operating Temperature | -20 / 60 °C |
