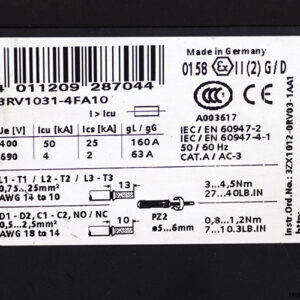

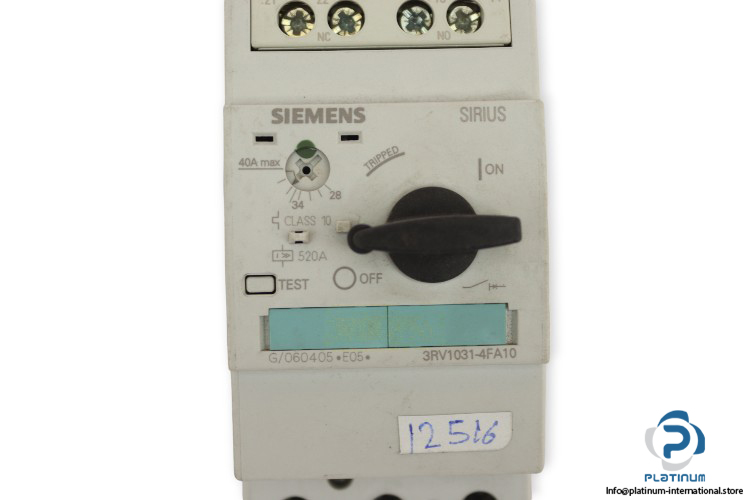

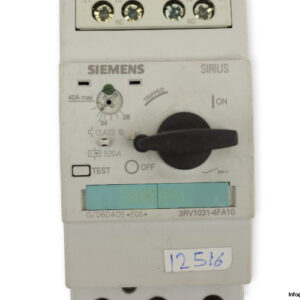

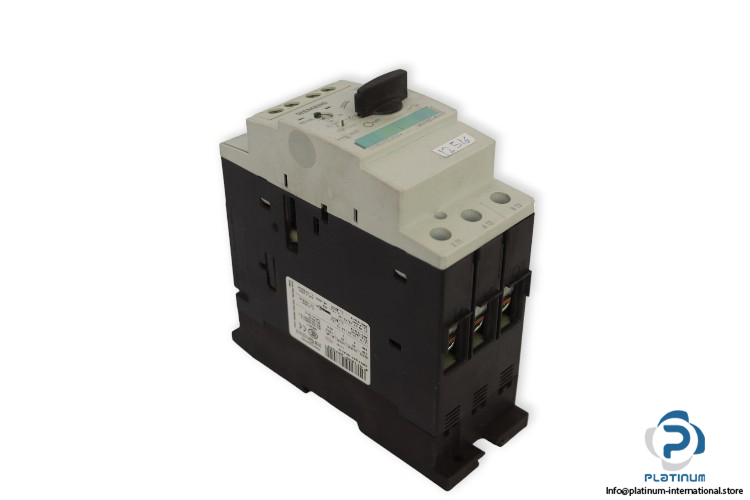

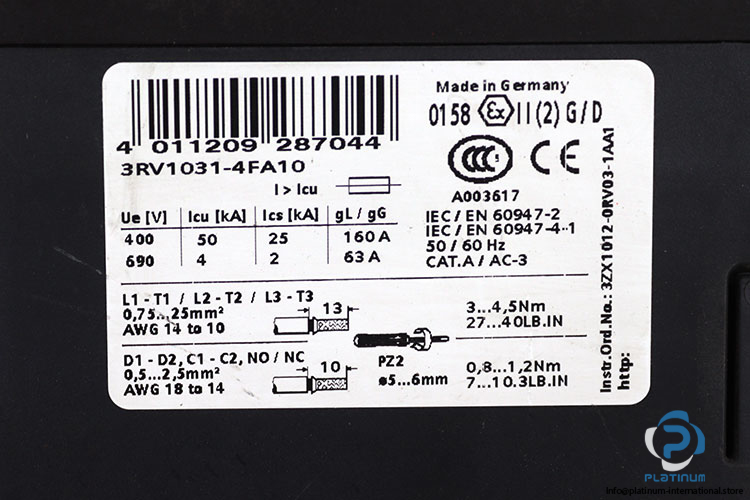

Siemens 3RV1031-4FA10 3P Circuit Breaker

Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV10314FA10
Product brand name: SIRIUS

Size: S2
Design of the product: for motor protection
Operating voltage: 690 V
Operating power at AC-3 @ 400 V rated value: 18.5 kW
Power loss total typical: 29 W
Continuous Current Rated Value: 40 A
Response value current of instantaneous short-circuit trip unit: 520 A
Adjustable pick-up value current: 28 … 40 A
Trip class: Class 10
Rated breaking capacity@400V (Icu): 50 kA
Rated Service breaking capacity@400 V (Ics): 25 kA
Fastening Method: screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
Protection degree: IP20
No. of poles: 3
Ambient temperature: -20 … 60°C
Dimensions: 140 x 55 x 149 mm
